Description
- 90-240V/20A Smart PDU with Power Sequencing：Manages reliable and safe power distribution for audio equipment, stage lights, studios, and smart home setups（Max 20A total; each outlet ≤5A）

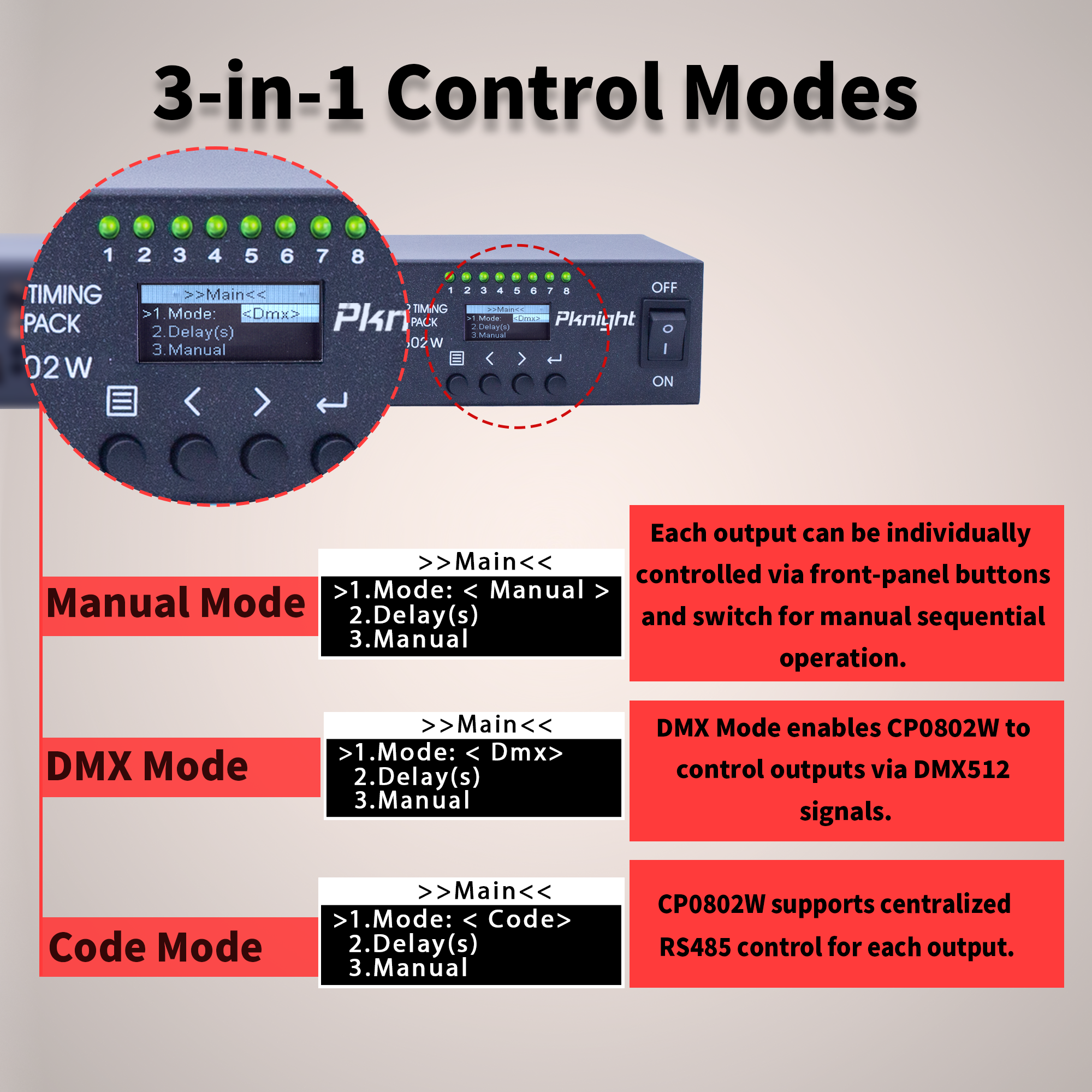

- 8 Individually Controlled Switched Outlets：Independently control each outlet via DMX512, RS485, front-panel manual operation, or wireless Art-Net compatible apps, enabling precise management of connected devices
- Wireless App Control via Art-Net Protocol：Features an integrated WiFi module that converts Art-Net signals from popular lighting control apps（e.g., Luminair, Qlc+）into DMX512 commands, ideal for remote, high-ceiling, or difficult-to-access installations
- Multi-functional DMX512 Modes with Channel Lock：Offers 2-channel（sequencing only）, 8-channel（individual switching）, and 10-channel（combined sequencing & switching）modes; DMX lock function ensures continuous operation even if the DMX controller restarts or loses connection
- RS485 Control with Customizable Commands：Supports flexible integration into RS485 central control systems with customizable control commands, perfect for theater, building automation, and professional AV installations
- Programmable Timing & Delay Settings：Customize sequential power-on timing（0-10s per outlet）to prevent surge damage to sensitive equipment, and easily manage delayed start-up for complex setups
- Compact Rackmount Design with OLED Display：Standard 1U size suitable for 19-inch racks, walls, ceilings, or hooks; includes an OLED display for clear, real-time visibility of mode, outlet status, DMX/RS485 settings, and more
Sequencer
When the delay timer is activated (set to a non-zero value), the CP0802W sequentially powers each outlet at user-defined intervals. This ensures a stable and safe startup, preventing potential damage caused by inrush current.
Smart Switch
- Receives standard DMX512 control signals, enabling independent on/off control of each output channel.
- Supports precise smart switching through specific control codes issued by a central control system or RS485 controller.
