• Manual Link：Here

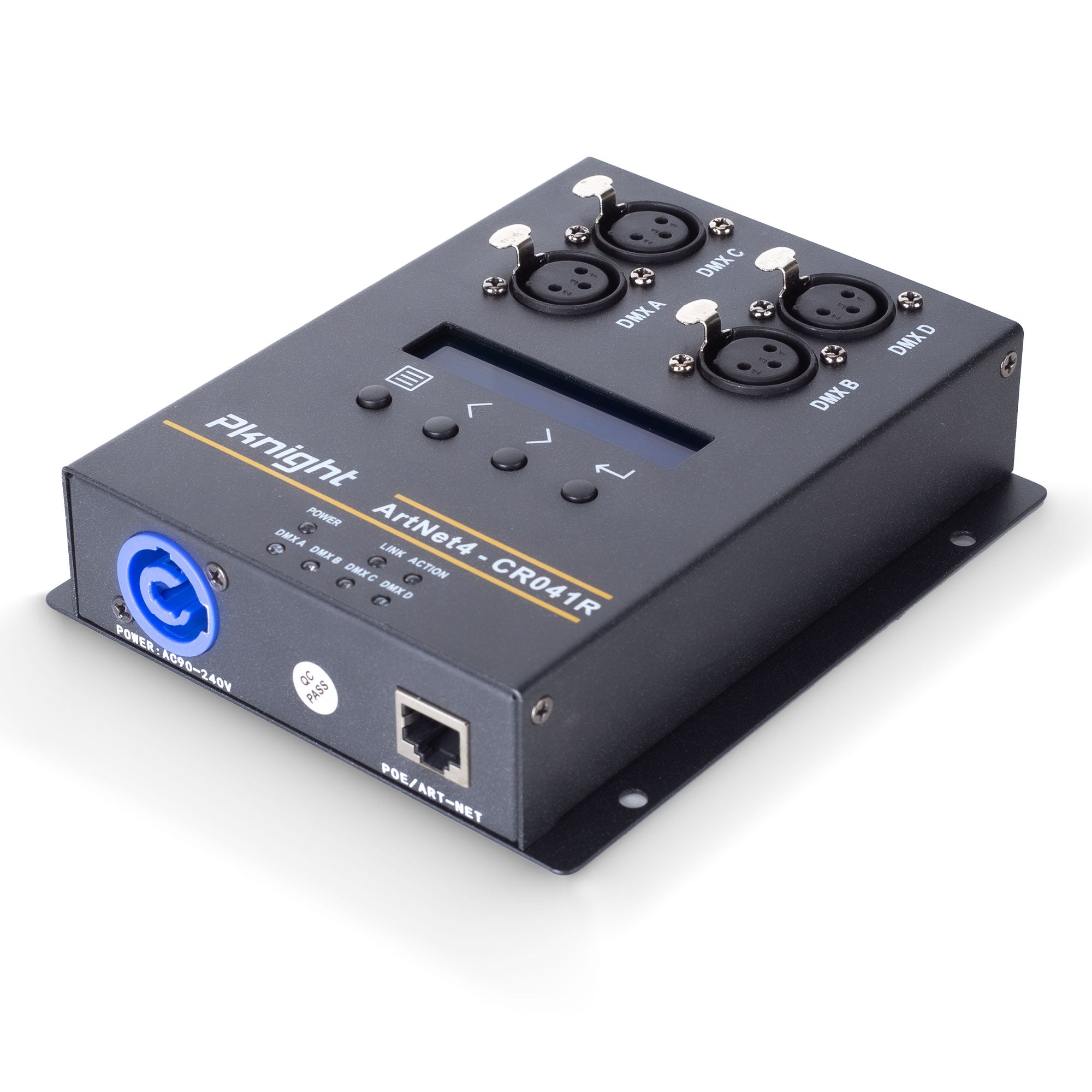

• Overview of Artnet4- CR041R

• Remote configuration about cr series artnet controllers from Pknight

Features

• it is the most cost-effective artnet and dmx adapter with very comprehensive functions.

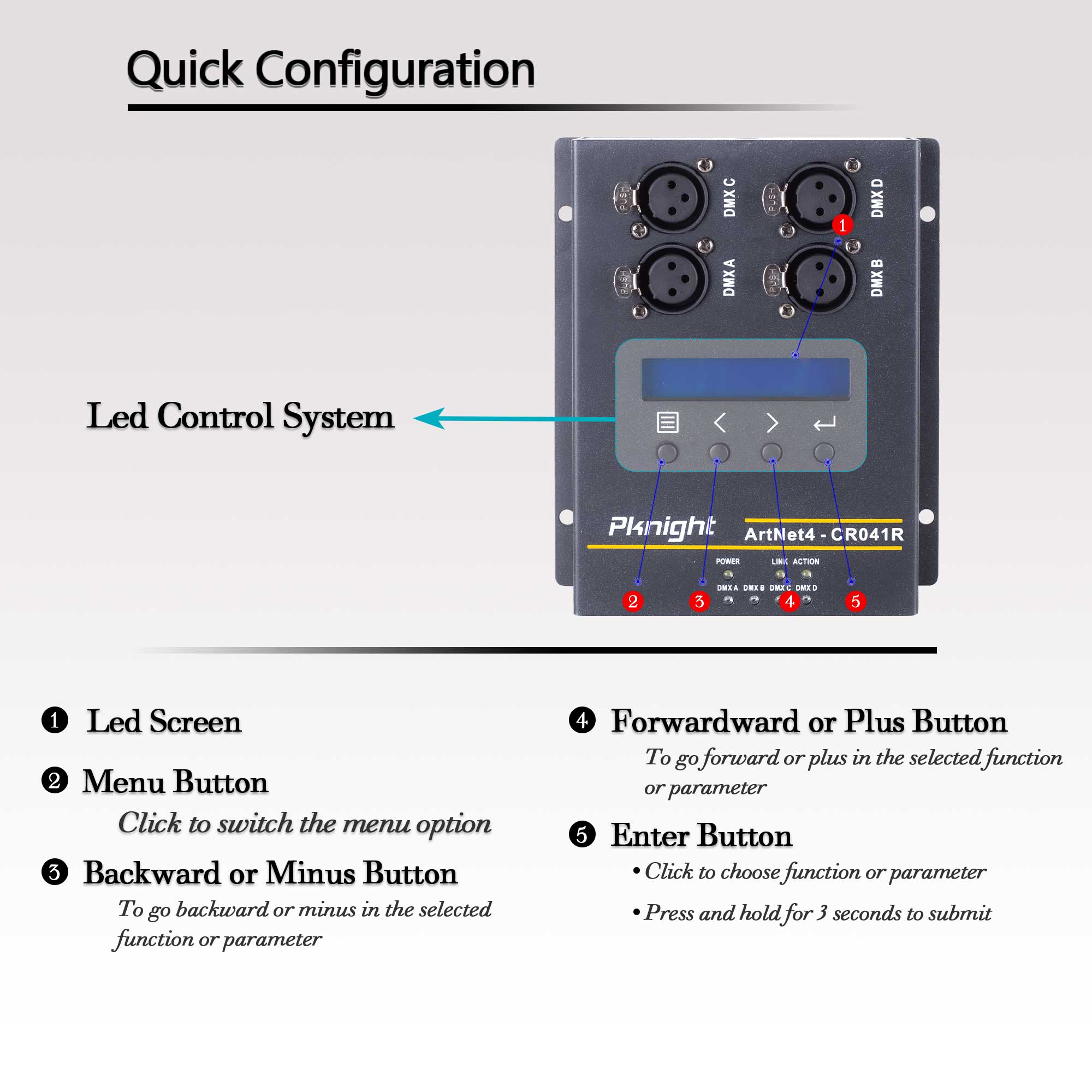

• East to set up: With the led display and 4 function buttons,you need not to find some applications or a web configuration to set it up.

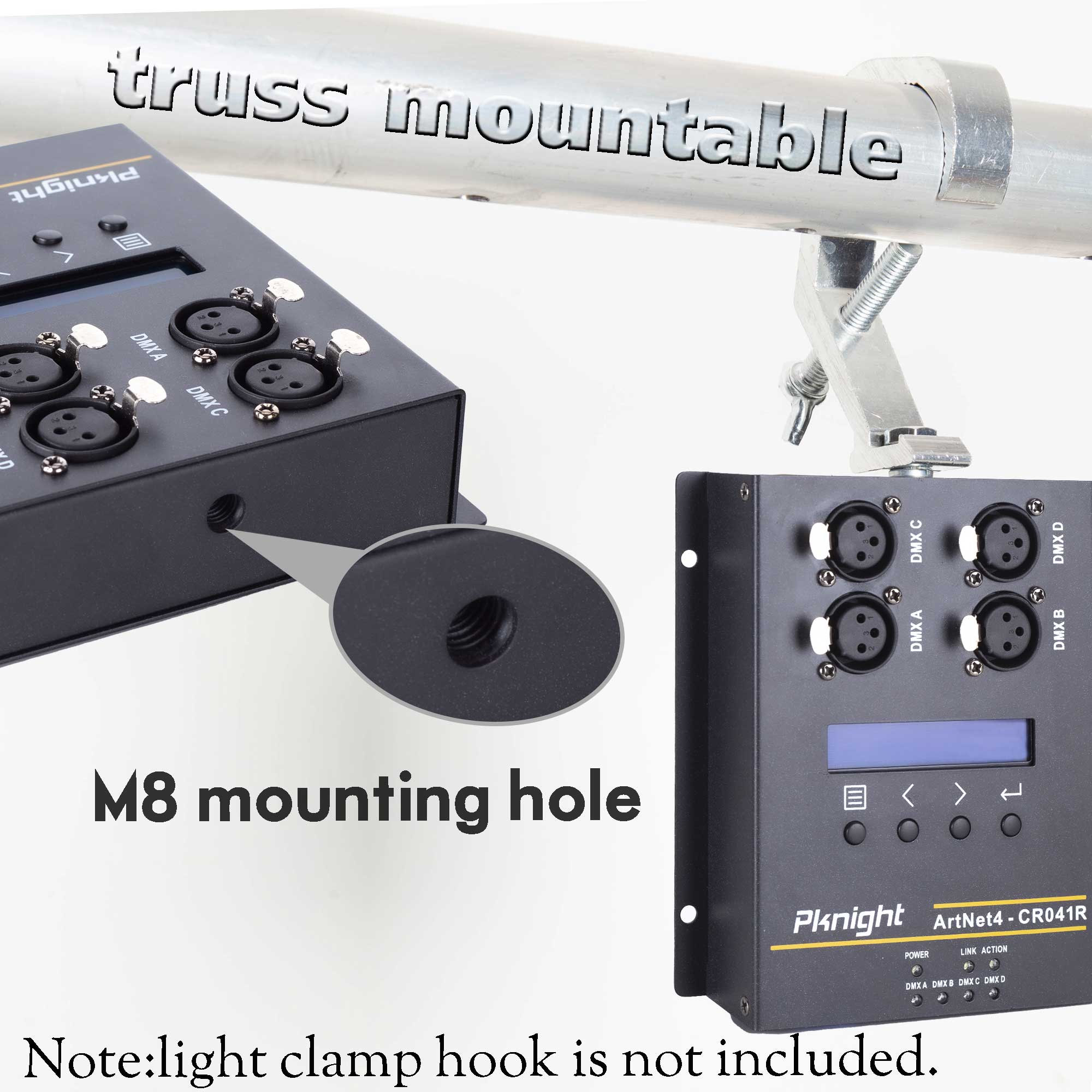

• Truss Mountable: There is a M10 screw holes on the top of the node box,you can easily install it on the truss with a stage light clamp hook.

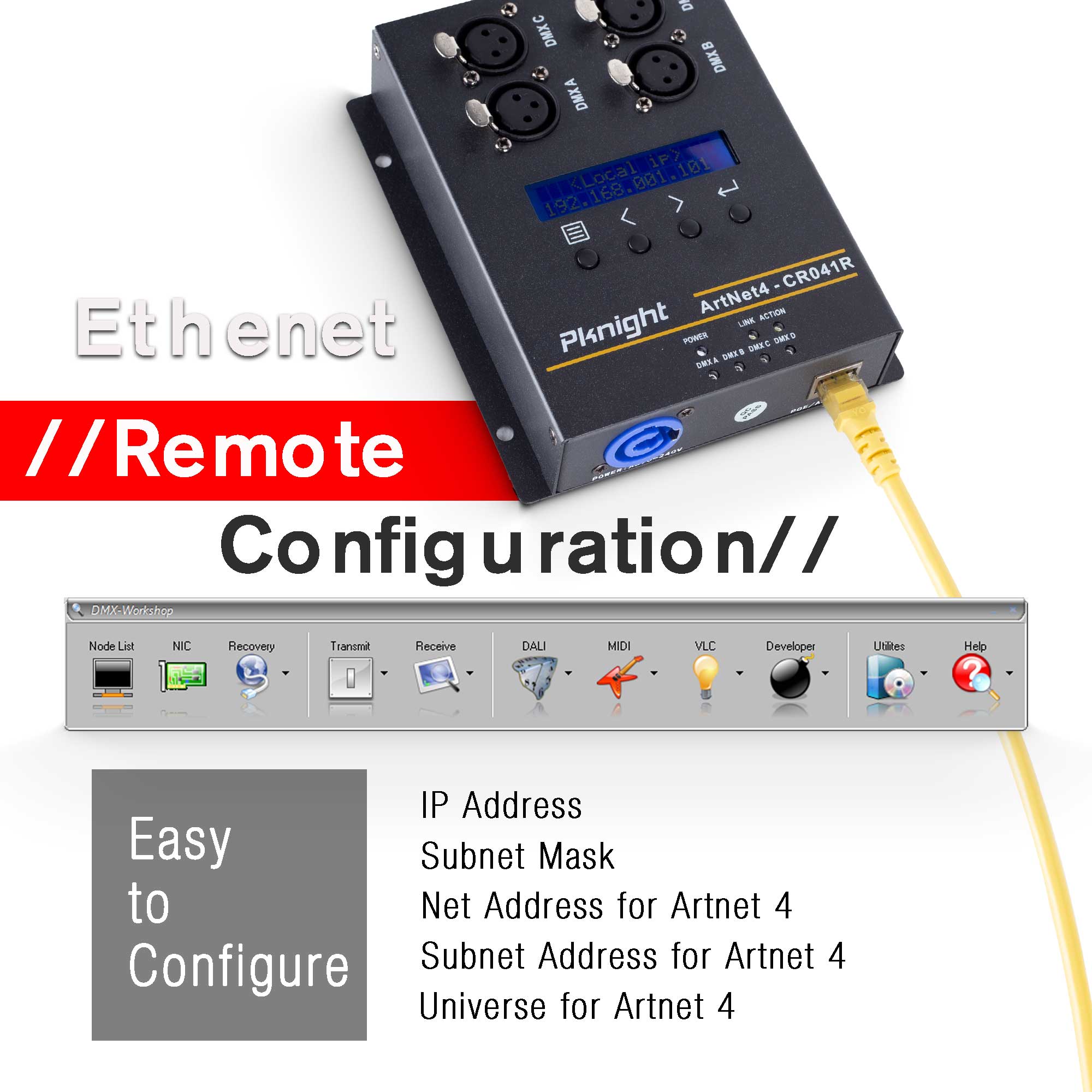

• Remote Configuration: we can remotely configure the IP address, subnet mask, net address, subnet address, and port universe through the software DMX Workshop.

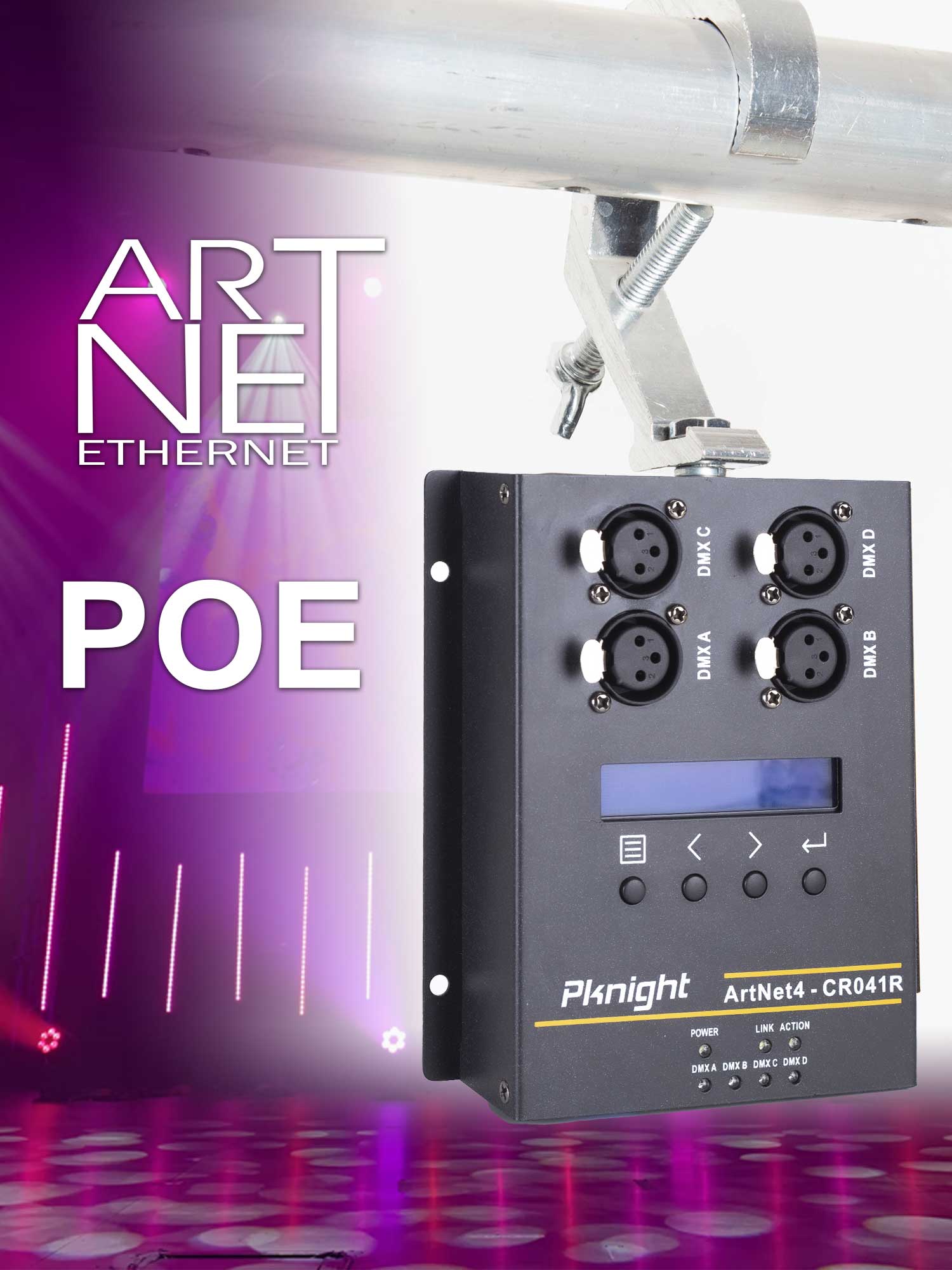

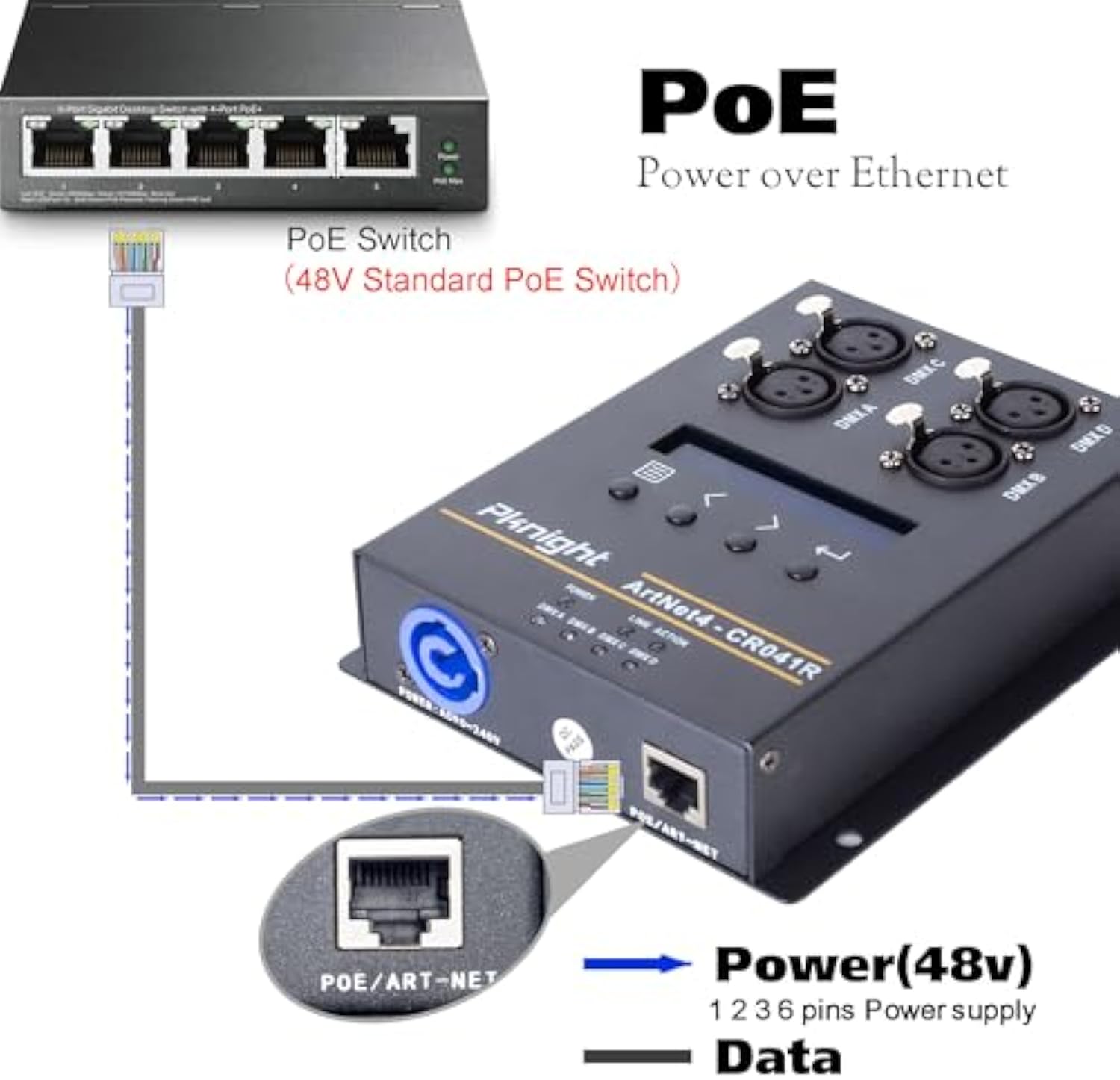

• PoE Available: Built tough and compact the adapter can be powered by PoE (power over ethernet),get a standard 48V PoE switch with 1 2 3 6 pins Power supply，You can use the existing network cable instead of the power cable to power the device, which is very convenient.

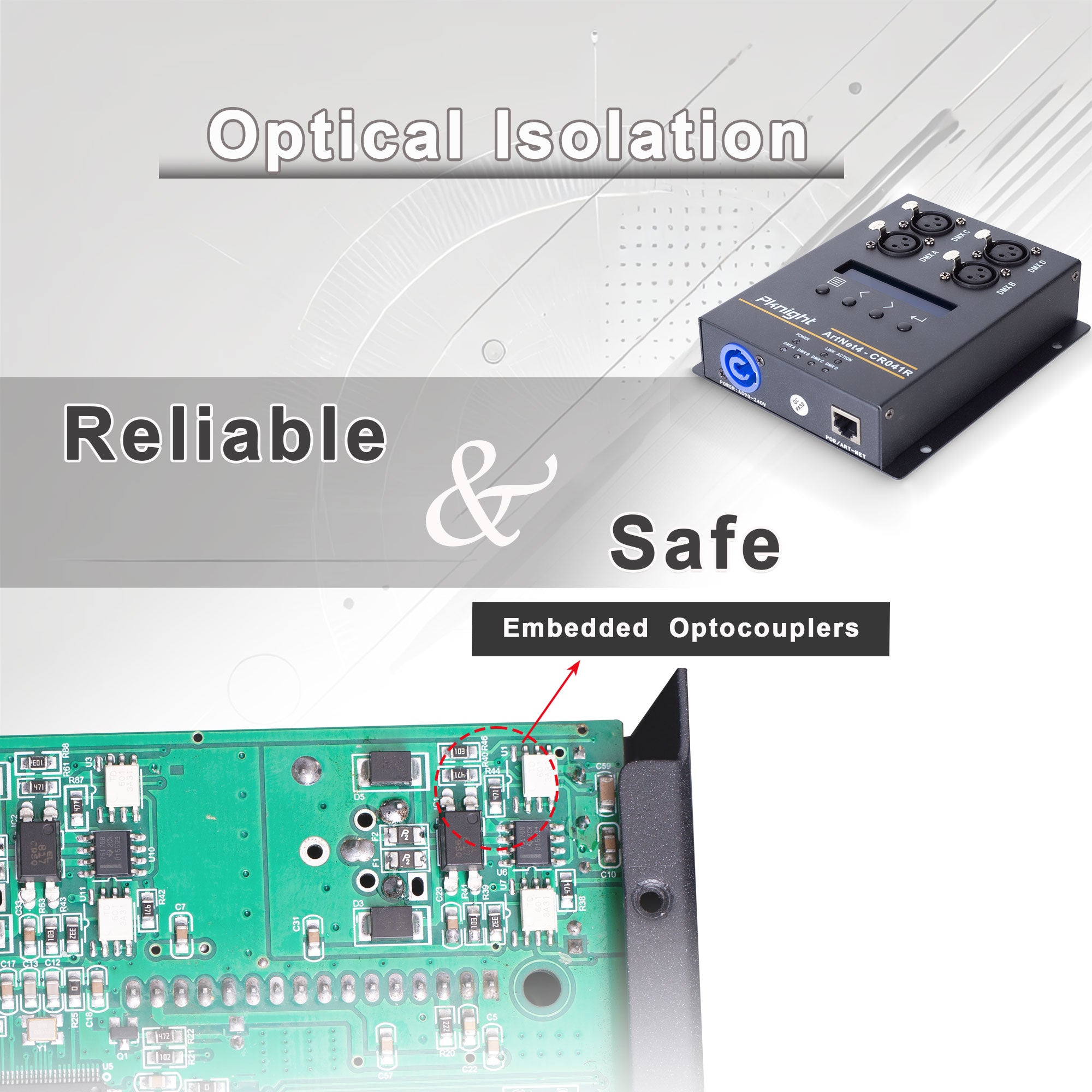

• All XLR Outputs Opt-Isolated:Four XLR ports feature optical isolation chips, effectively blocking electrical currents from connected fixtures to protect your control system. This ensures reliable signal integrity and shields your equipment from electrical interference and surges, providing strong protection for your entire setup.

• 4x DMX512 Out (3pin) with Art-Net, control up to 2048 channels.
