Description
Manual Link：Here
How to Work with the Router （CR011R, App：Photon 2）
Resolume Arena Connects to Pknight Artnet node CR011R
Features

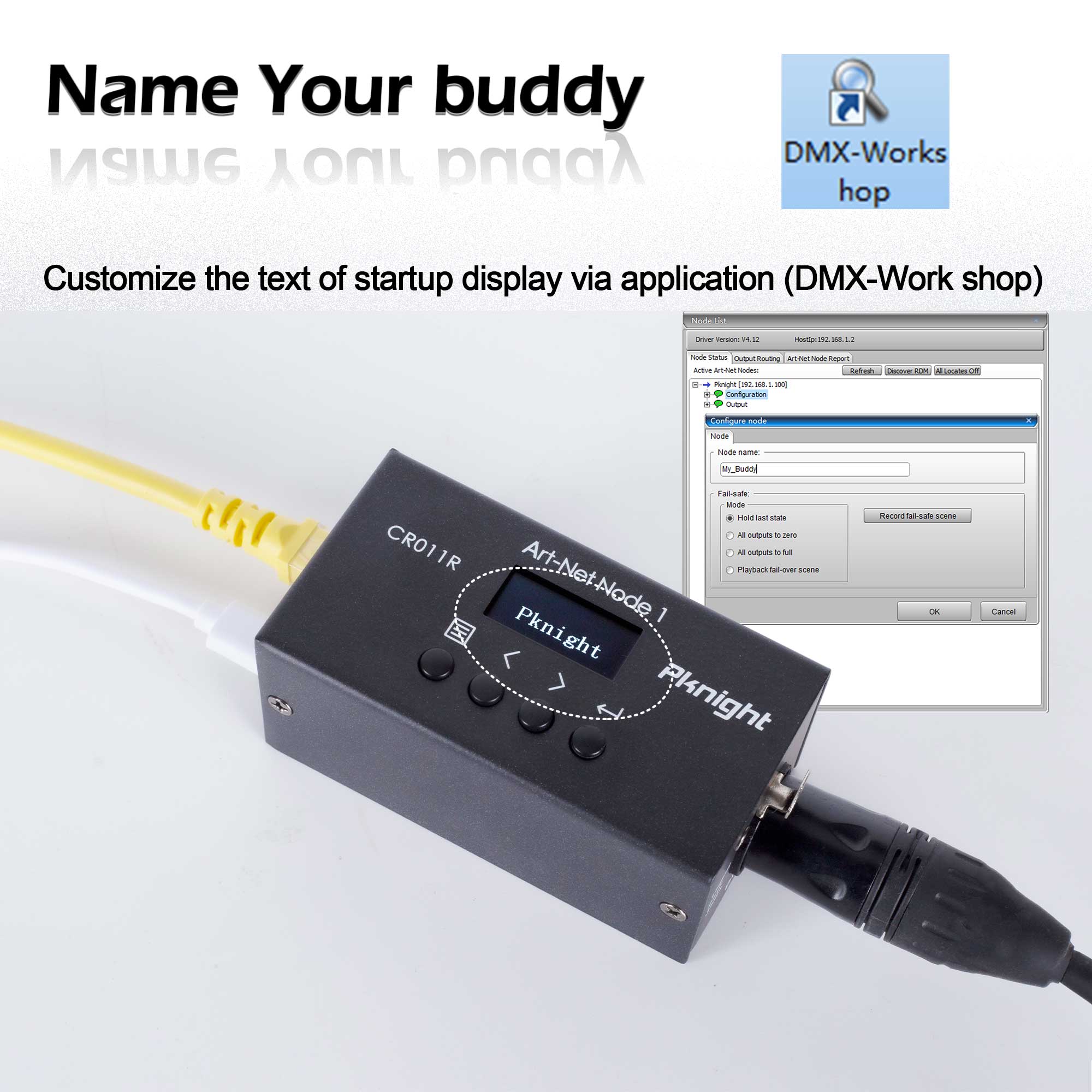

- Name Your Buddy: If we want to name our Artnet Box, we can customize the text of startup display via application (DMX-Work shop), it's a fun feature and very to set up.

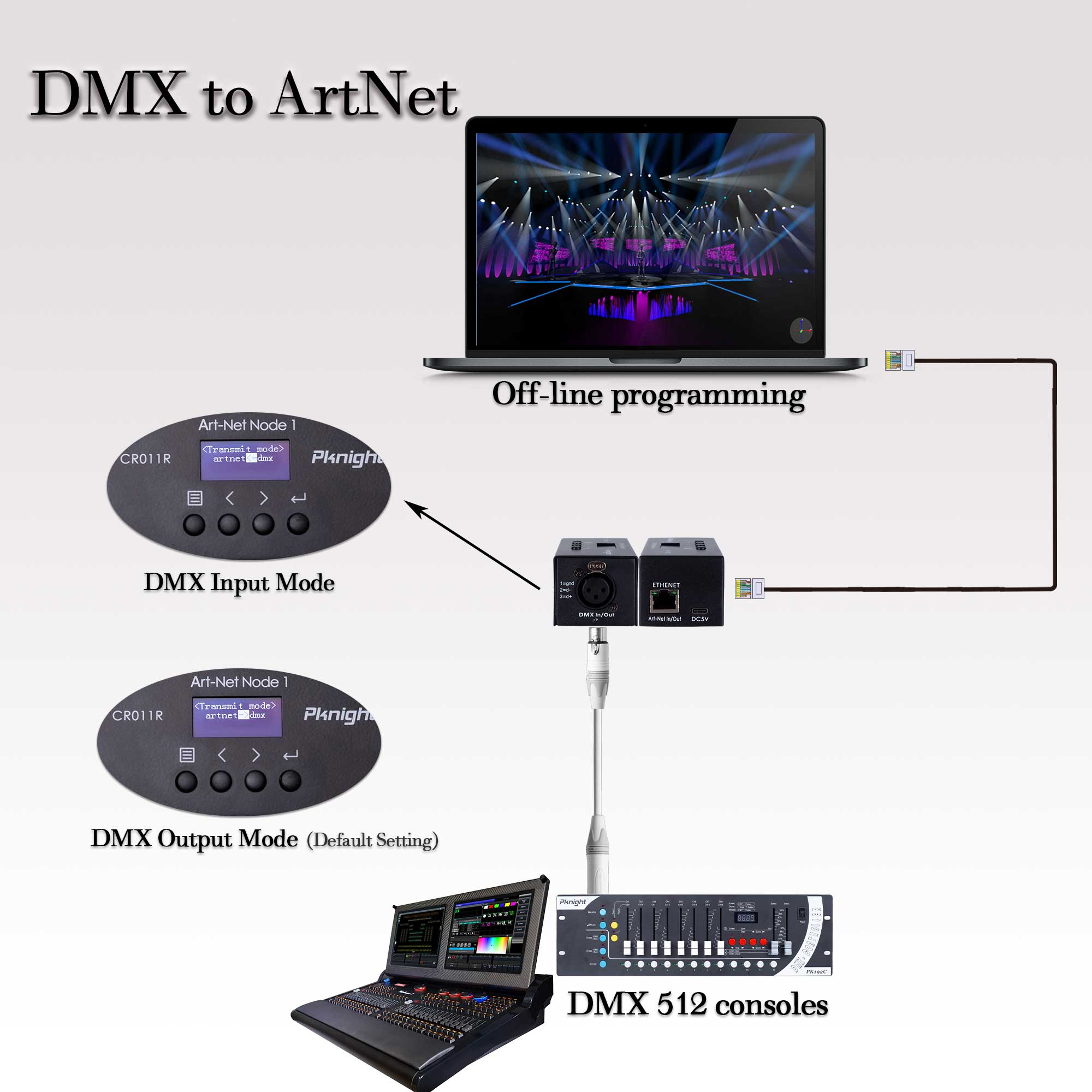

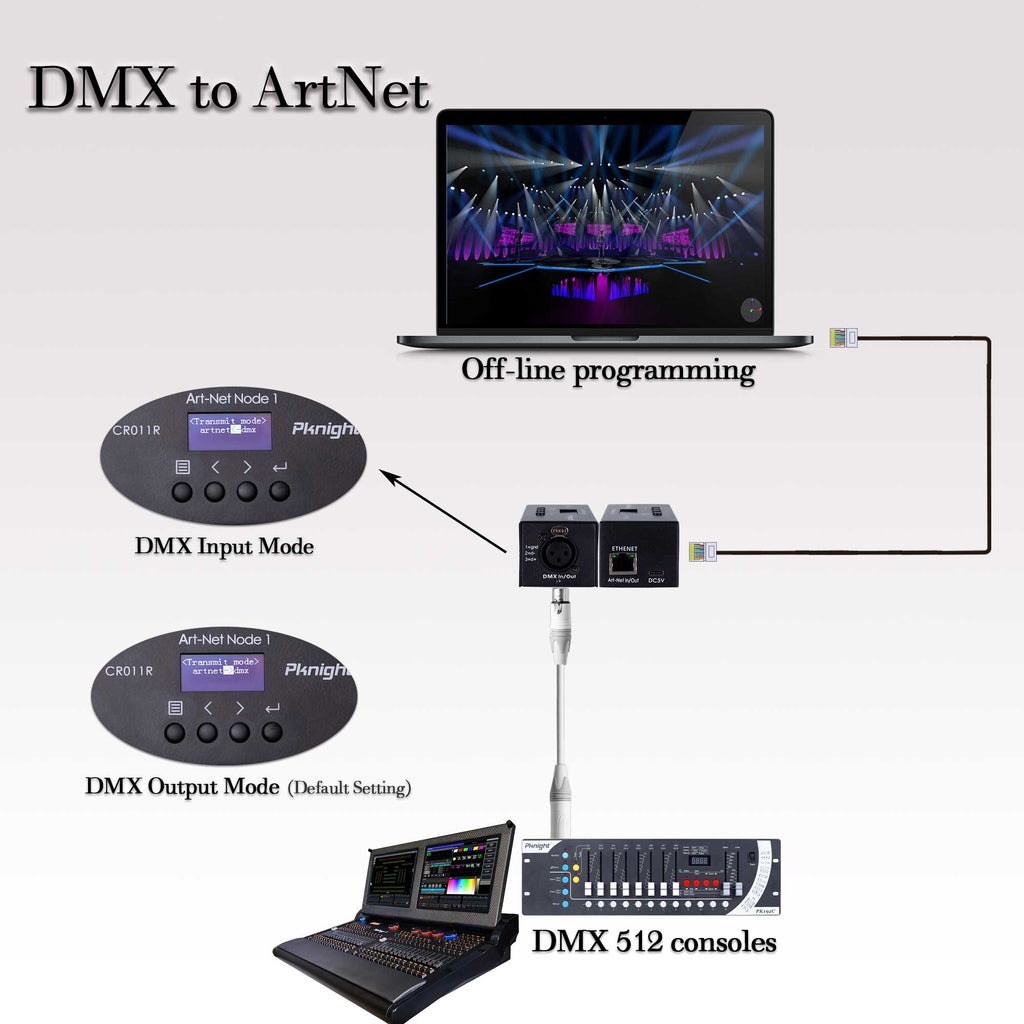

- Bi-directional Artnet box: Featured with DMX Input and output mode, the Pknight CR001R can be a bi-directional Artnet box. Just set the “Transmit mode” to be “artnet < - dmx”, When there is an external DMX signal input, the DMX will be converted to artnet.

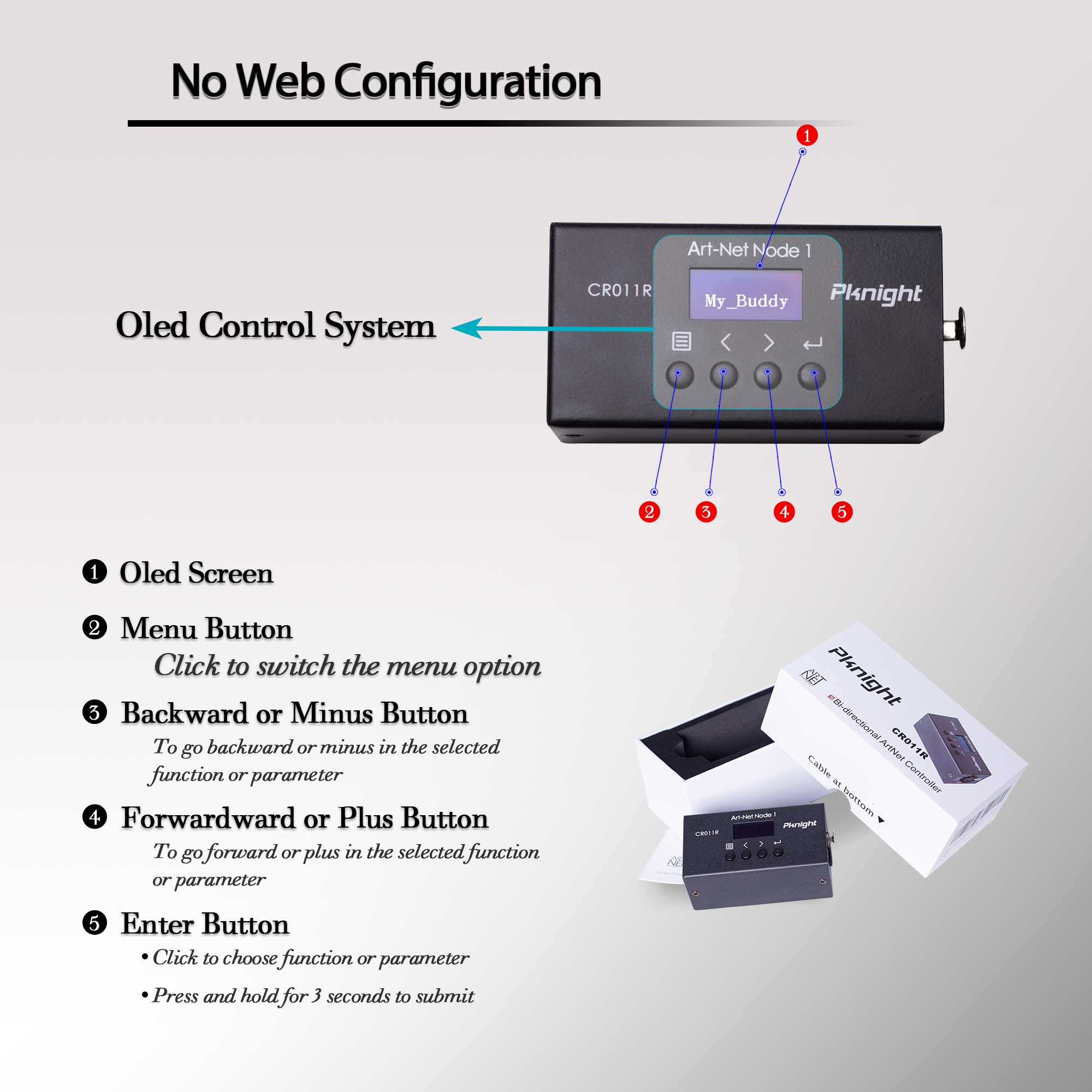

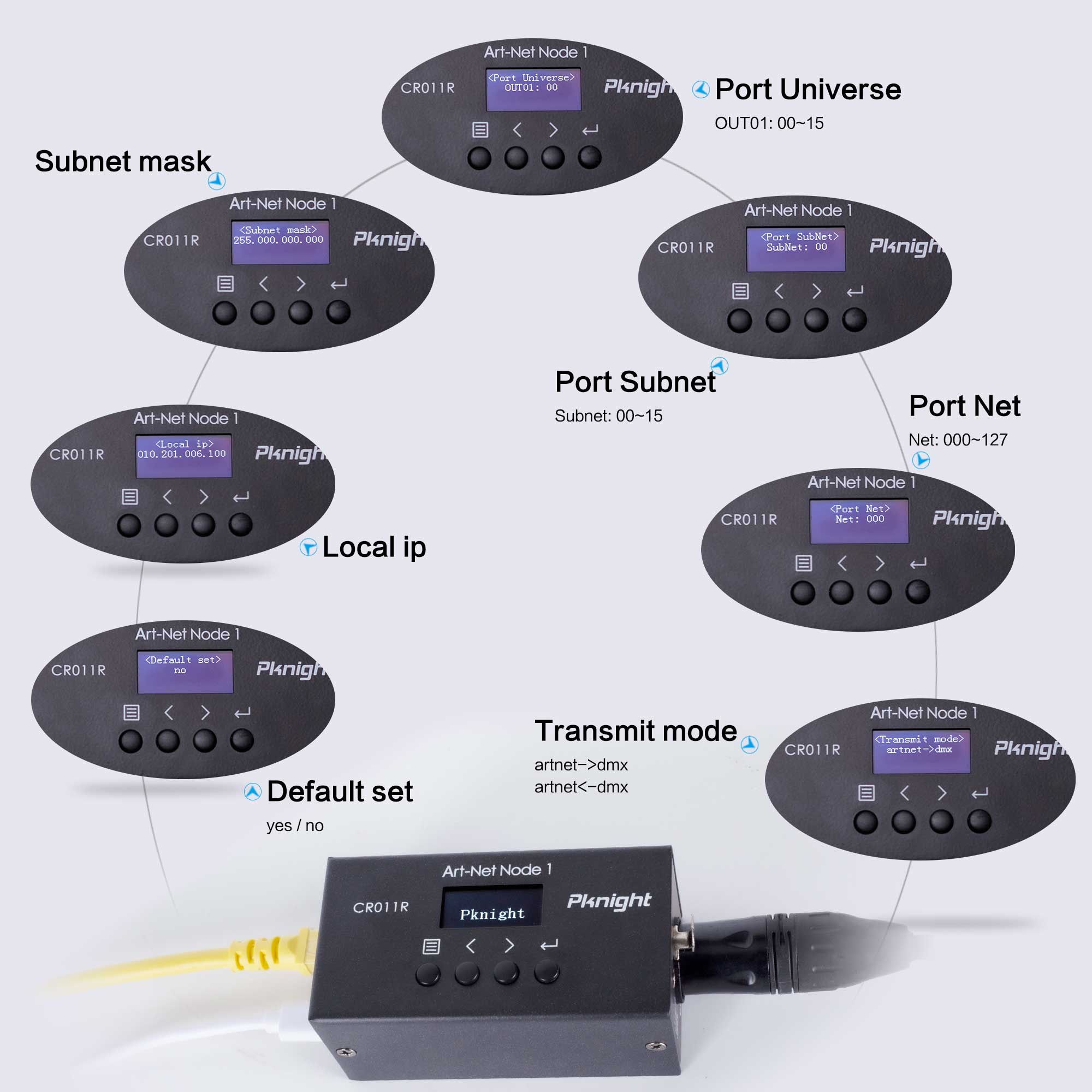

- Oled Control System: With the Oled display and 4 function buttons,you need not to find some applications or a web configuration to set it up.

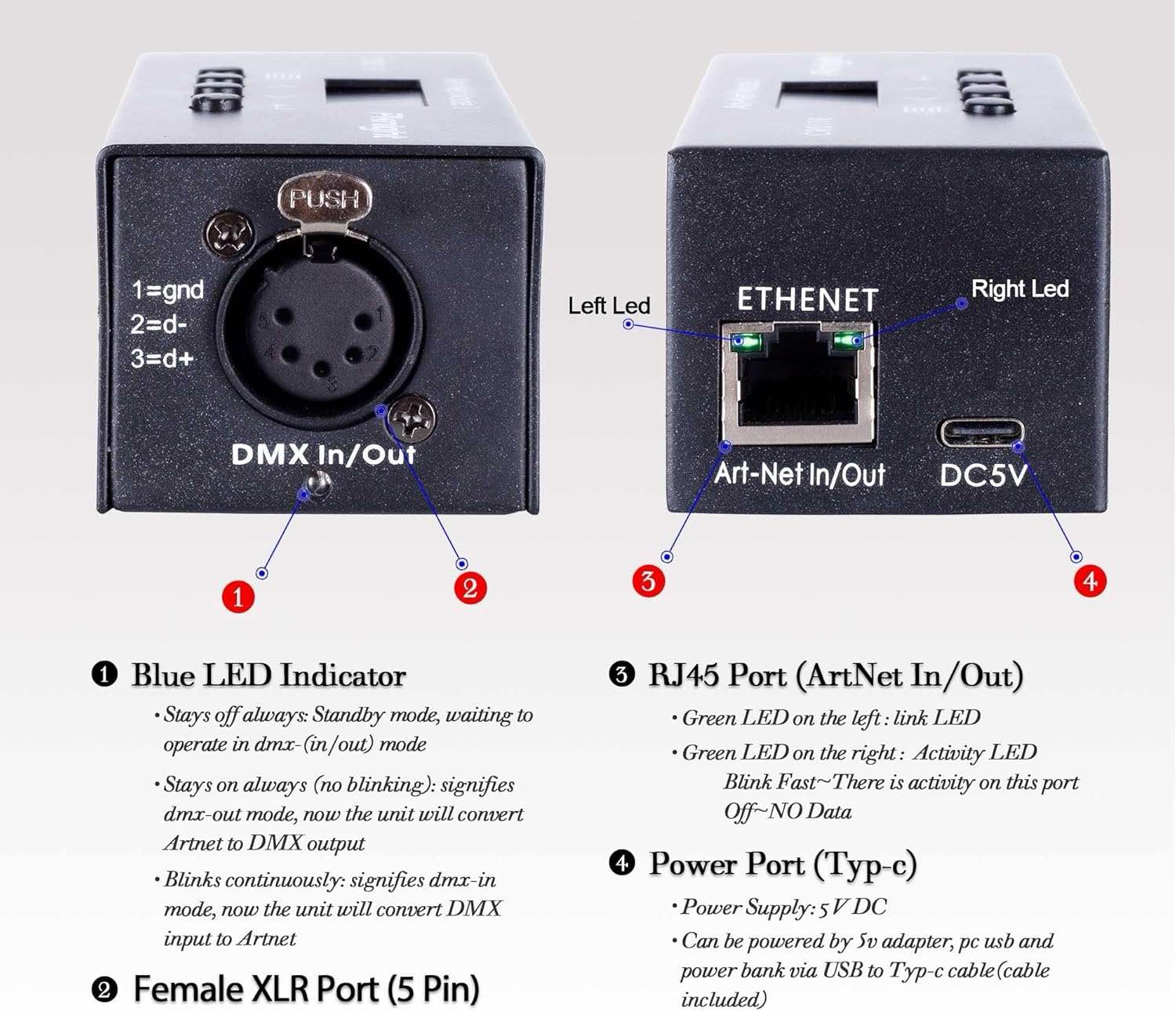

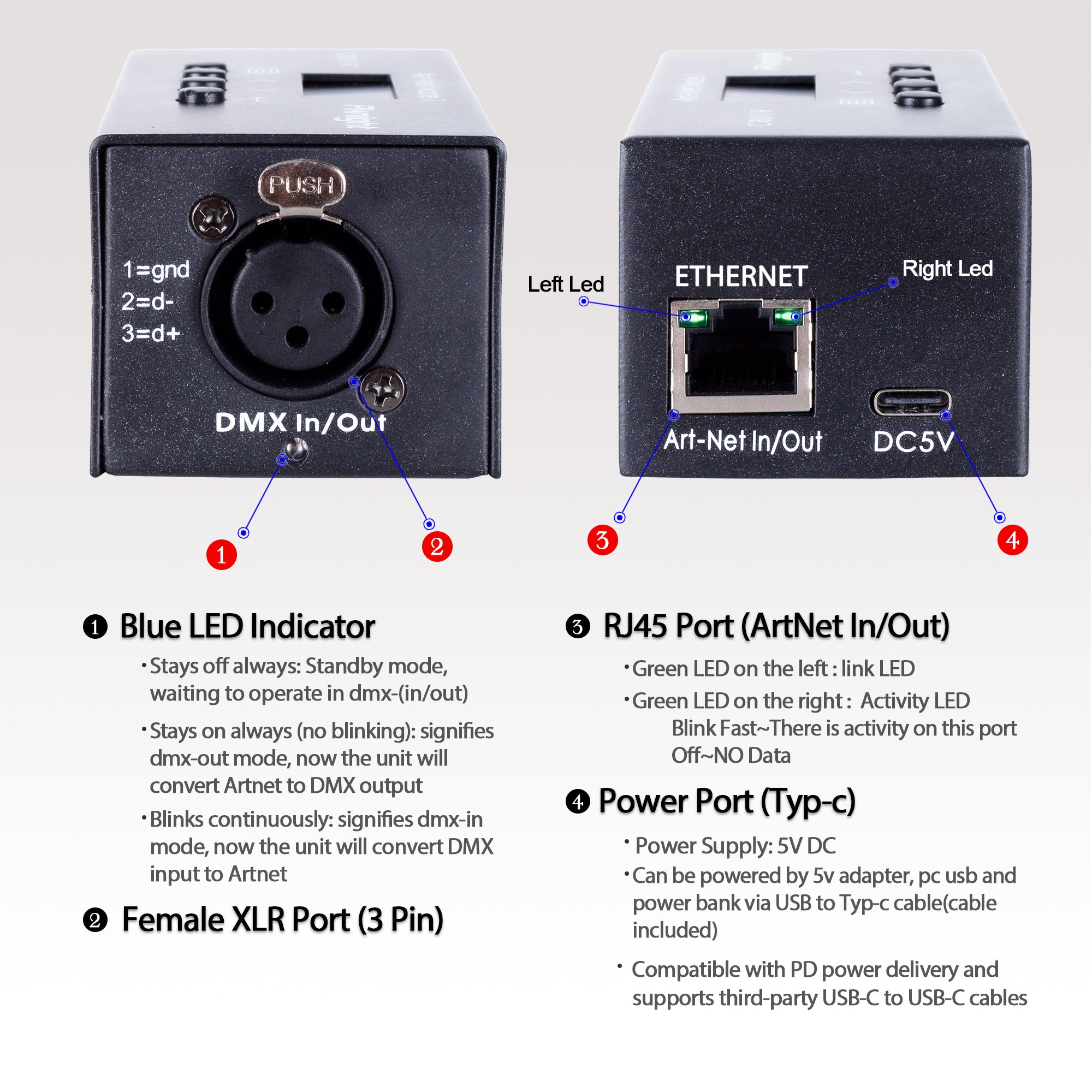

- One Universe: 1x DMX512 Out (3pin) with Art-Net, control up to 512 channels.

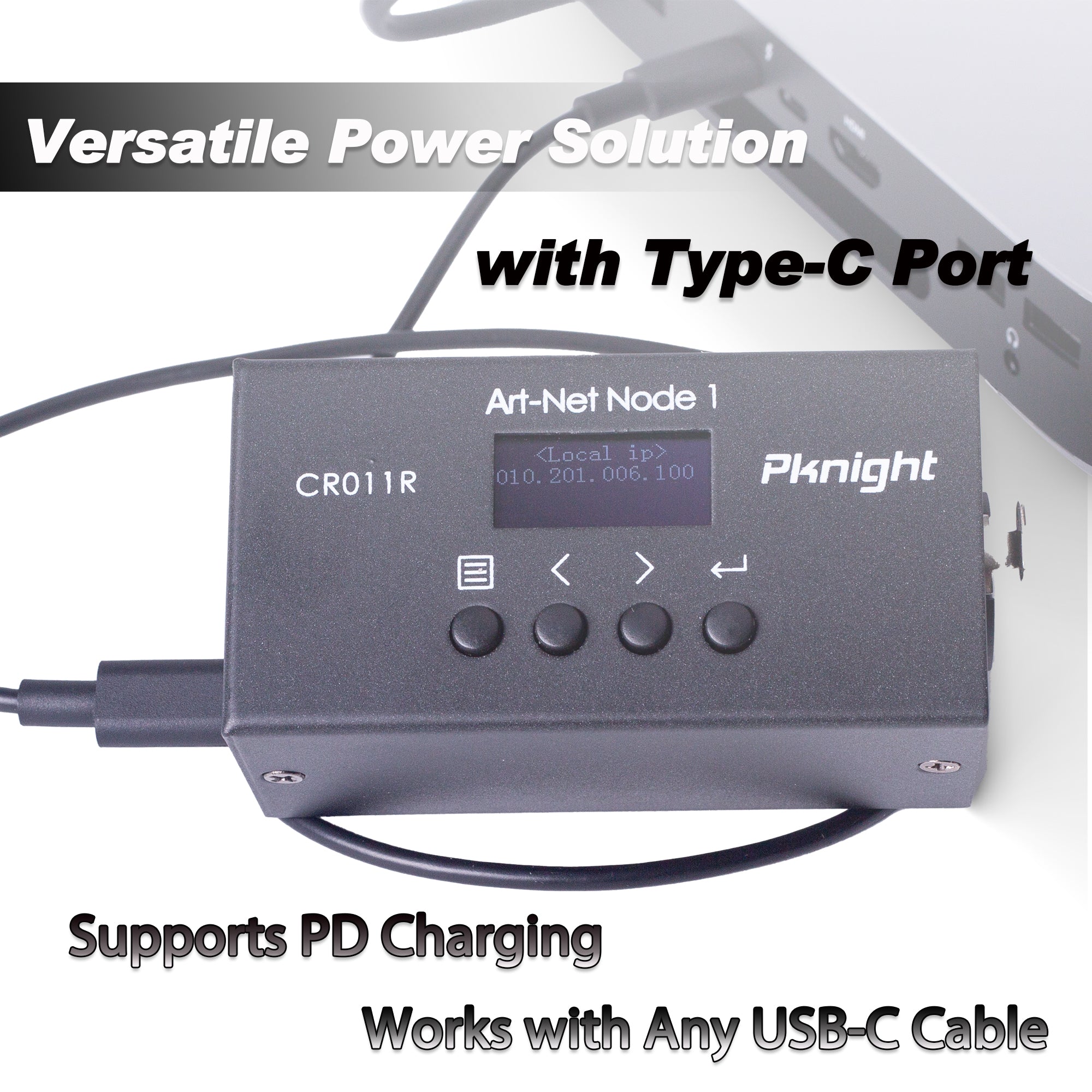

- 5v DC Power: you can also power the box by a power bank.
Artnet 4 Available
Art-Net 4 was released in September 2016. It is the most powerful and flexible version to date and, in recognition of this fact, gained a PLASA Award for Innovation.
- Transports up to 32,768 DMX universes over a single network
- Uses standard ethernet technology equipment
- One IP address per gateway (up to 1000 DMX ports)
- All DMX ports can be assigned a fully independent universe
- Free network tools(DMX-Workshop)
- Protocol is free-of-charge
- Perfect for large scale LED installations
How to do?
Step1: Connect CR001R and computer via the Ethernet cable
Step2: Ip setting; both should be located on the same Local Area Network.
Step3: Open DMX-Workshop(a free application，easy to find in the internet)
Step4: find your node in Node List and configure the node name
Now It's good to go!
