Save 50%
Pknight
shipping from: China
Device interface: 3 pin
Price:
$133.99 USD $267.98 USD

Description

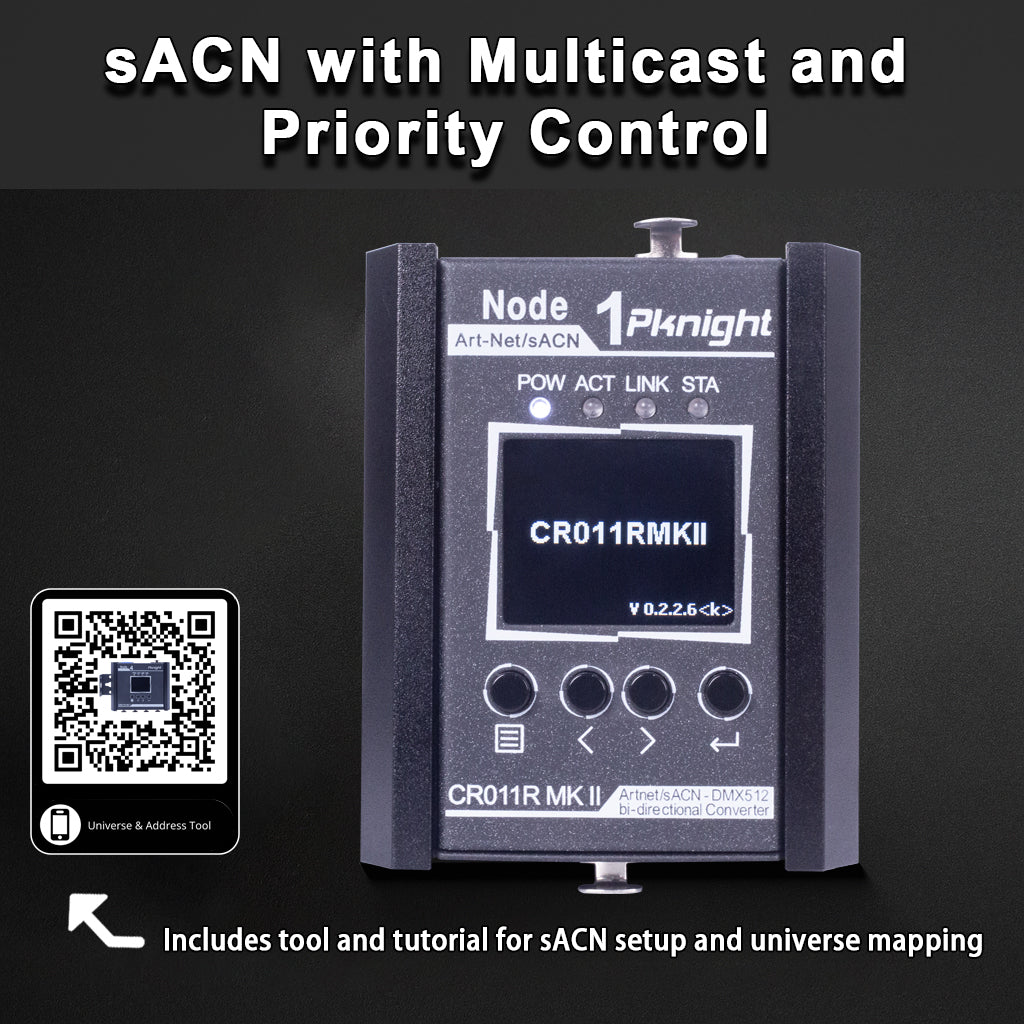

  • sACN multicast and priority supported ：Supports Art-Net and sACN protocols. Enables sACN multicast and priority control for smooth integration in multi-source lighting systems.
  • USB-C 5V Power Supply：Powered through USB-C 5V, works with adapters, laptops, or power banks—ideal for portable setups and small installations.

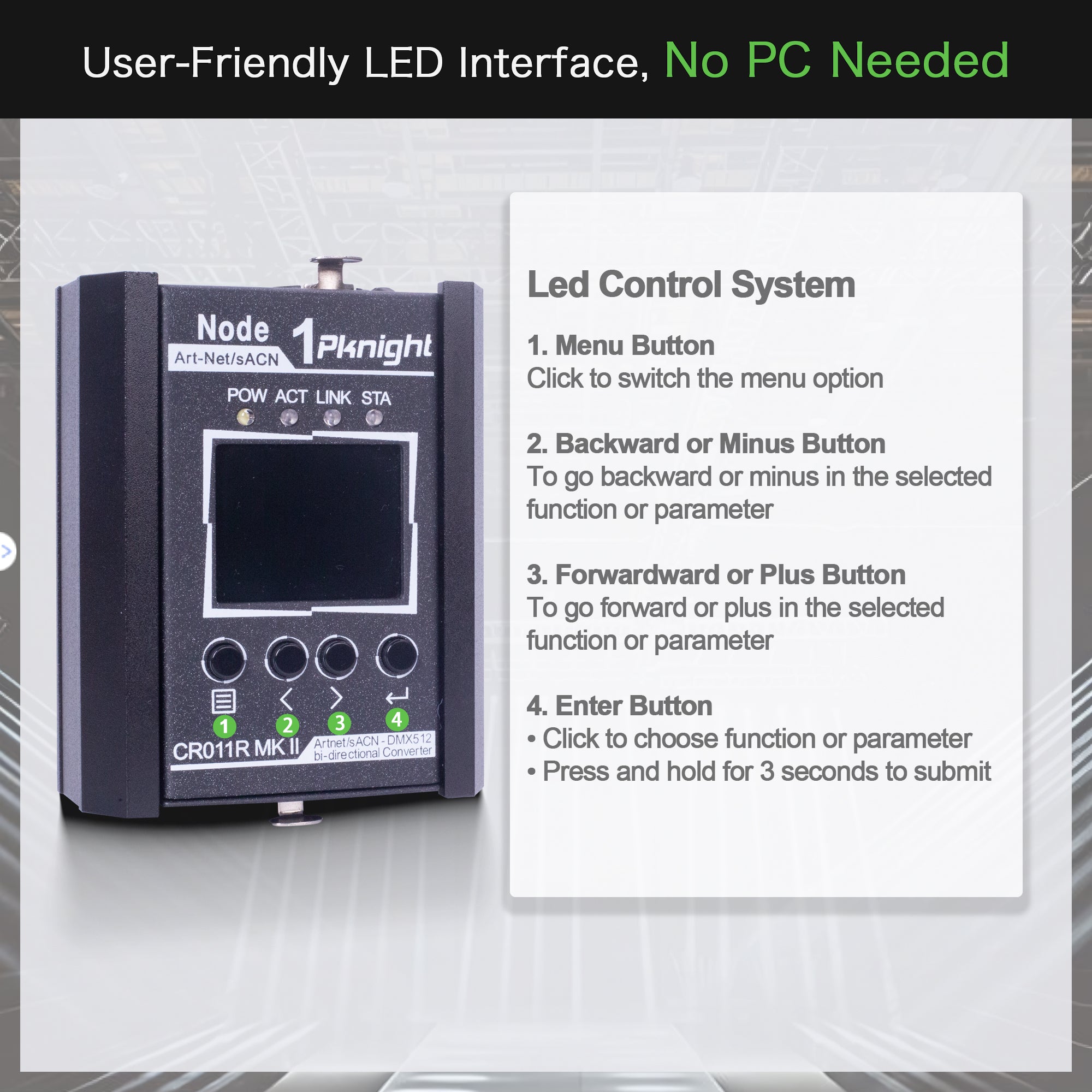

  • Intuitive Onboard Menu with Color Screen：Features a 1.8” color LED display and four-button interface for standalone configuration, universe mapping, and signal status monitoring—no PC required.

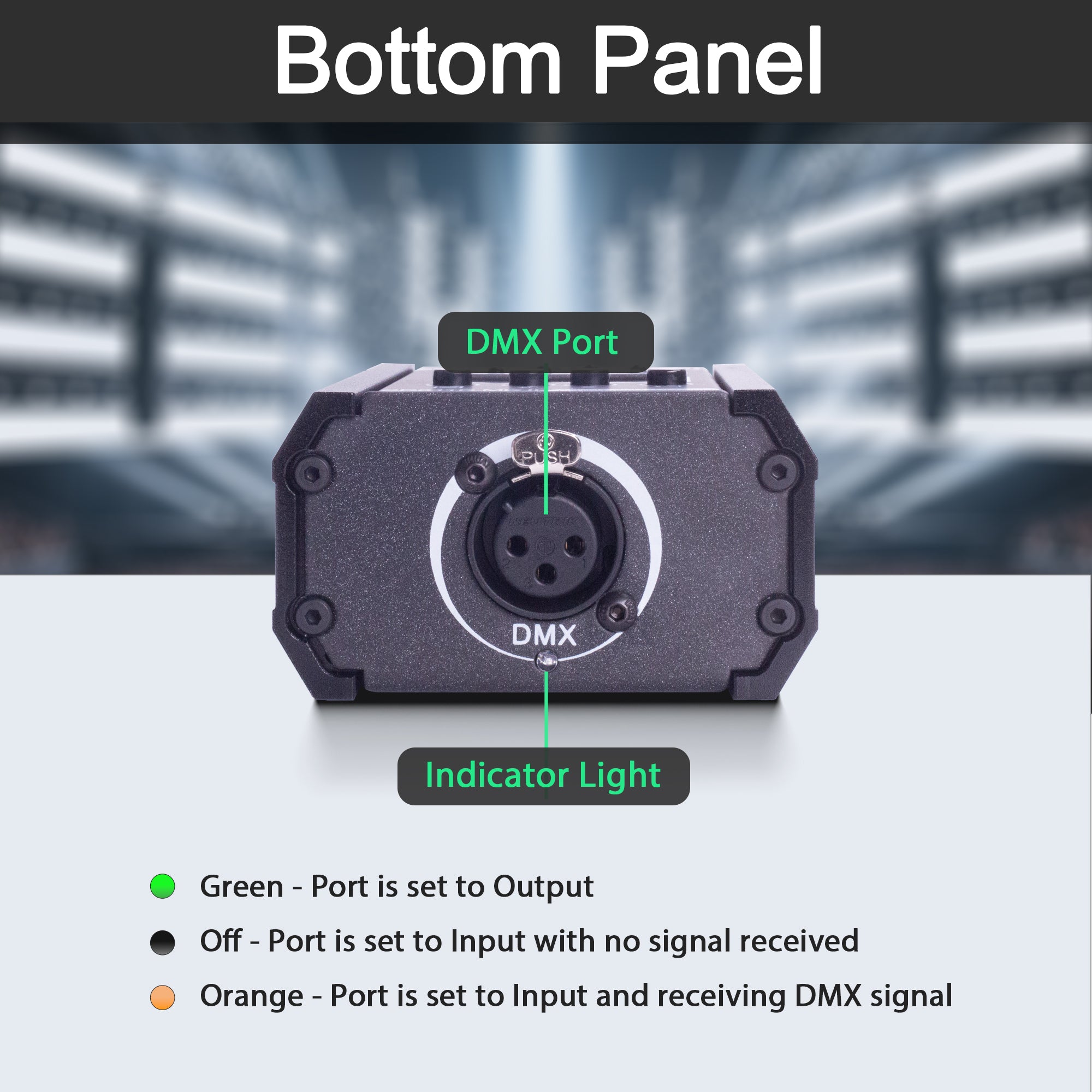

  • Bidirectional Protocol Conversion：Each port supports both DMX input and output. Easily switch between Art-Net/sACN to DMX512 or DMX512 to network—ideal for flexible lighting control workflows.

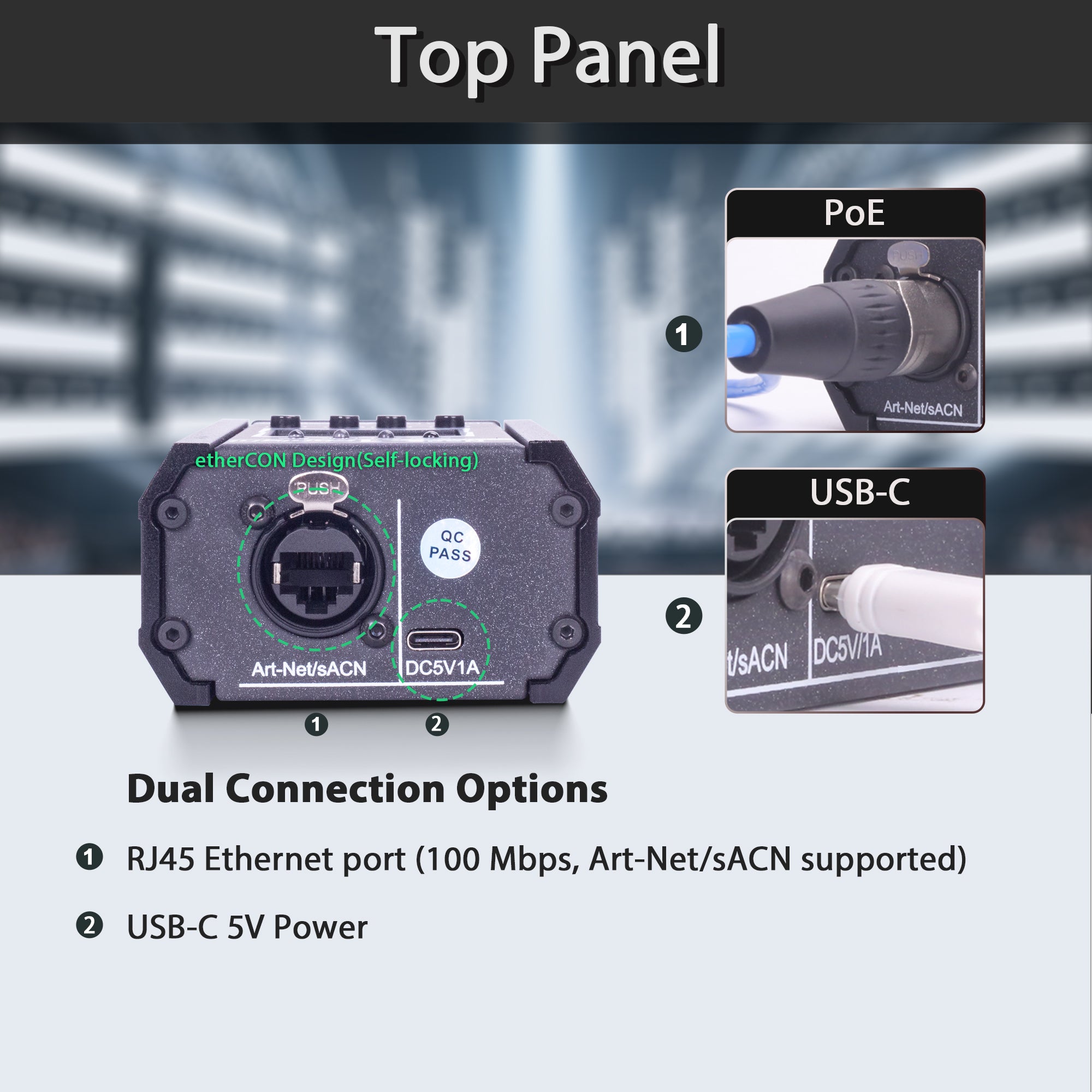

  • Compact Housing with Lockable RJ45：Rugged metal enclosure with compact form factor ensures durability. Lockable RJ45 (etherCON) provides secure data connection for live shows and installations.

OVER VIEW

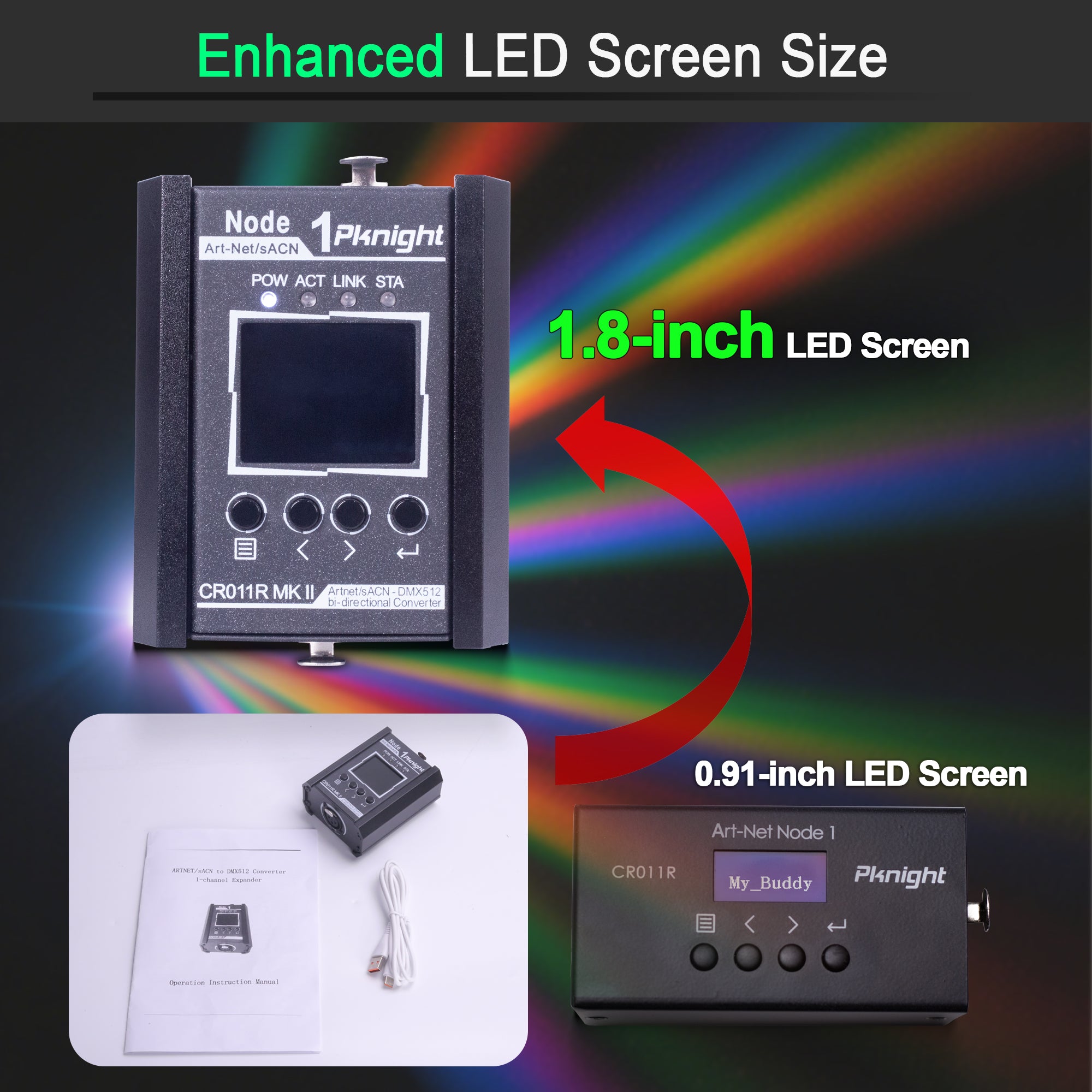

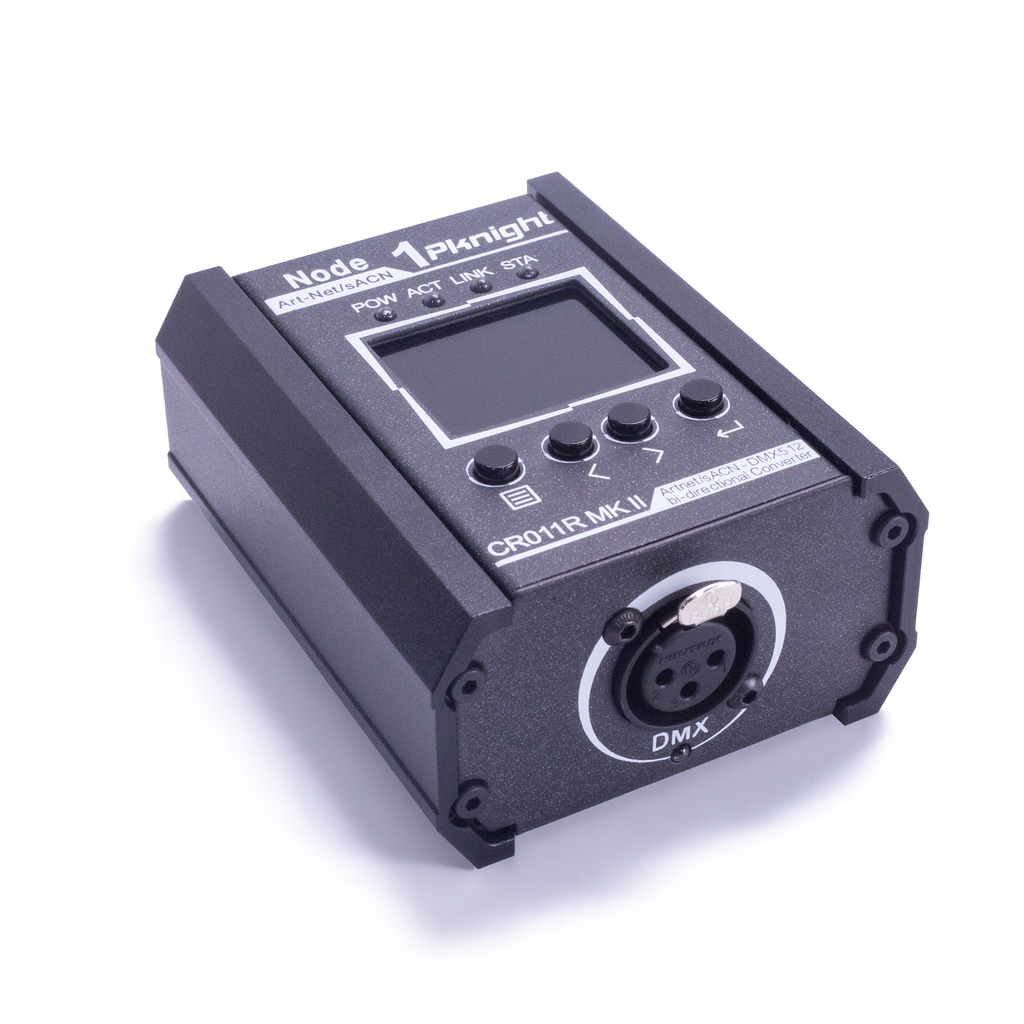

The Pknight CR011R MK II is a compact, single-port Art-Net/sACN to DMX512 bi-directional converter, purpose-built for modern stage, event, and architectural lighting applications. Upgraded from the previous CR011R, the MK II now features a 1.8-inch color LED display and a four-button menu system, providing clear real-time status monitoring and effortless on-device configuration. Supporting both Art-Net 4 and sACN protocols—including Multicast and Priority Control—the CR011R MK II ensures stable, flexible, and professional-grade network-to-DMX conversion. Powered via a USB-C 5V/1A input, it is compatible with adapters, laptops, or power banks, making it ideal for both fixed installations and portable setups. The robust metal housing guarantees reliable performance, even in demanding live show or touring environments. Compact yet versatile, the CR011R MK II is a practical solution for DJs, rental companies, touring productions, and small to mid-size lighting systems that require portable, stable, and easy-to-use DMX control.

Art-Net / SACN to DMX Converter

Four Status Indicators

• POWER Indicator: White light on when the device is powered.

• LINK Indicator: Orange light on when the device is connected to a network.

• ACTION Indicator: Orange light on when the device is receiving network data.

• STA Indicator: Blue light blinks to indicate the device is running normally.

Note: I ACTION is it but DMX is not, the signal received is not AtNet and cannot be processed.

Four Status Indicators

Extender Mode SACN Priority Settings

  • Q1: Does this device support sACN and Art-Net?

    A1: Yes. The CR011R MK II supports both Art-Net 4 and sACN protocols, including Multicast and Priority Control, ensuring broad compatibility.

  • Q2: How many universes can it handle?

    A2: The device provides one full DMX universe, supporting up to 512 channels for input or output.

  • Q3: Can it be powered by a power bank or laptop?

    A3: Yes. With its USB-C 5V/1A power input, it can be conveniently powered via adapters, laptops, or power banks.

  • Q4: Do I need a computer for configuration?

    A4: No. All parameters (such as IP address, universe, input/output mode, and protocol) can be configured directly on the device through the 1.8-inch color LED display and four-button menu system, without external software.

  • Q5: Is it reliable for live shows or touring?

    A5: Yes. The unit features a durable metal housing and full port and power isolation, ensuring stable and reliable performance in professional stage and touring environments.
