Description
Feature

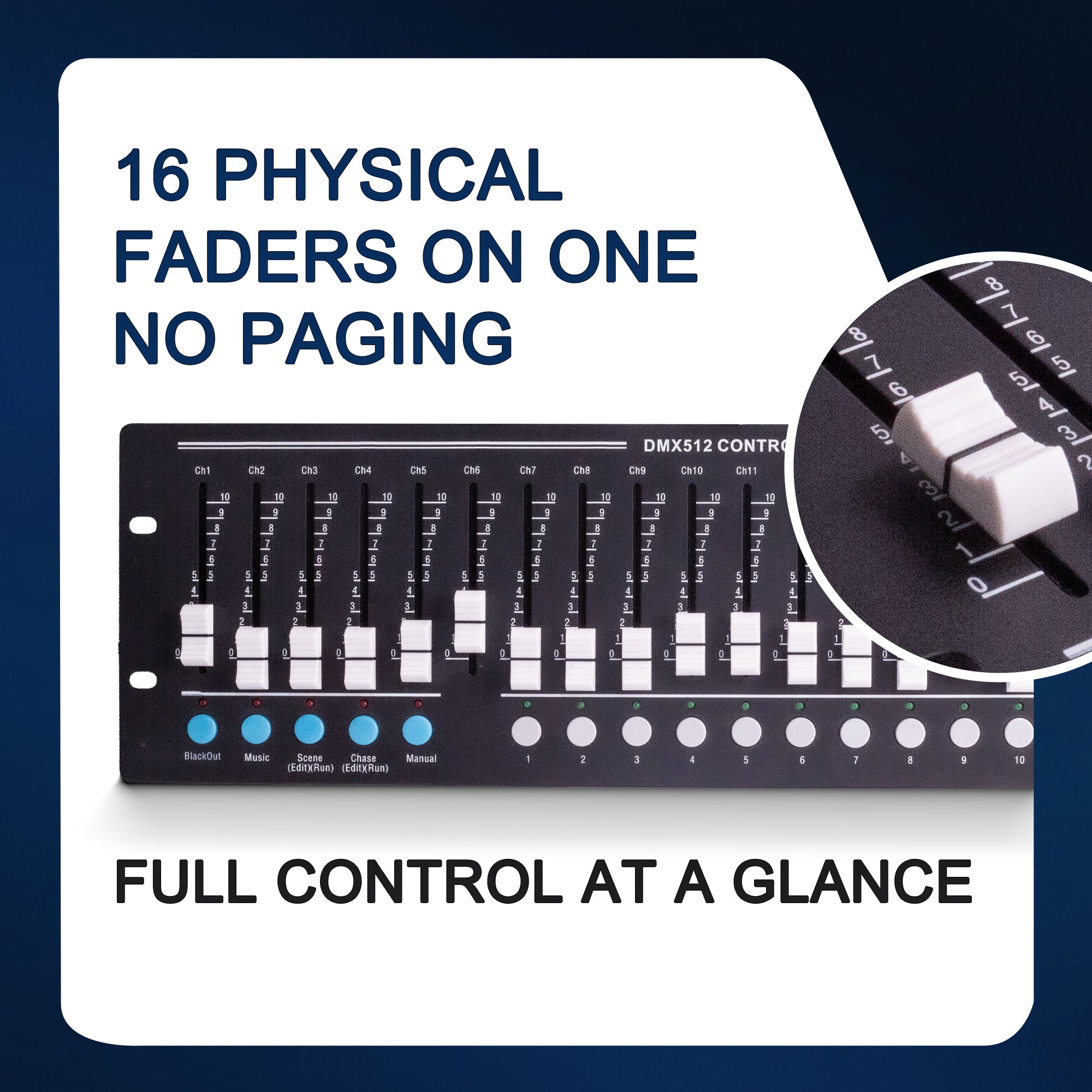

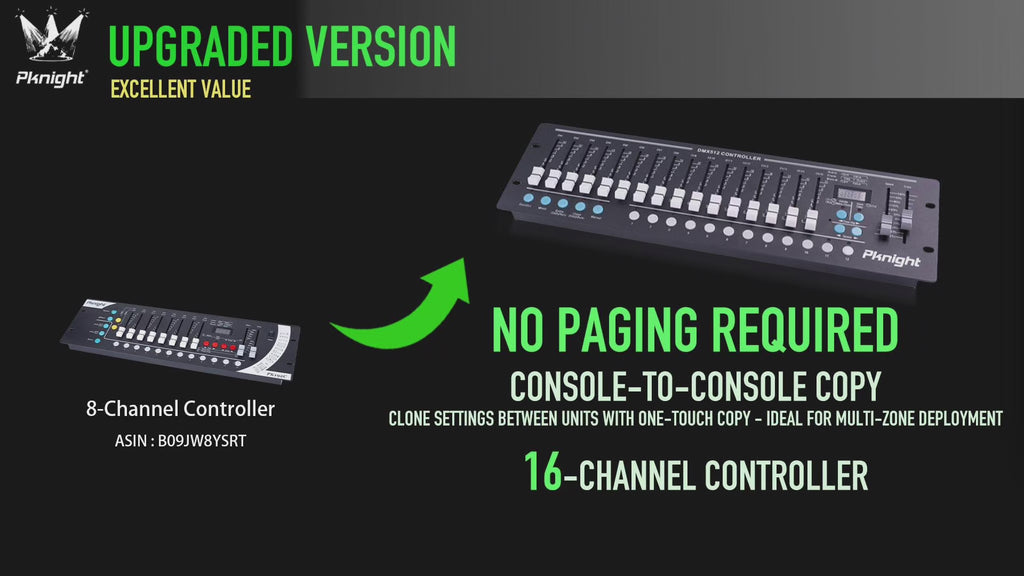

- Upgrade and Optimization ：The upgraded 16-channel DMX controller is easier for beginners and more efficient to use. With 16 physical faders on one page, there’s no need to switch channels. All functions are built into a high-performance chip for stable and powerful control.

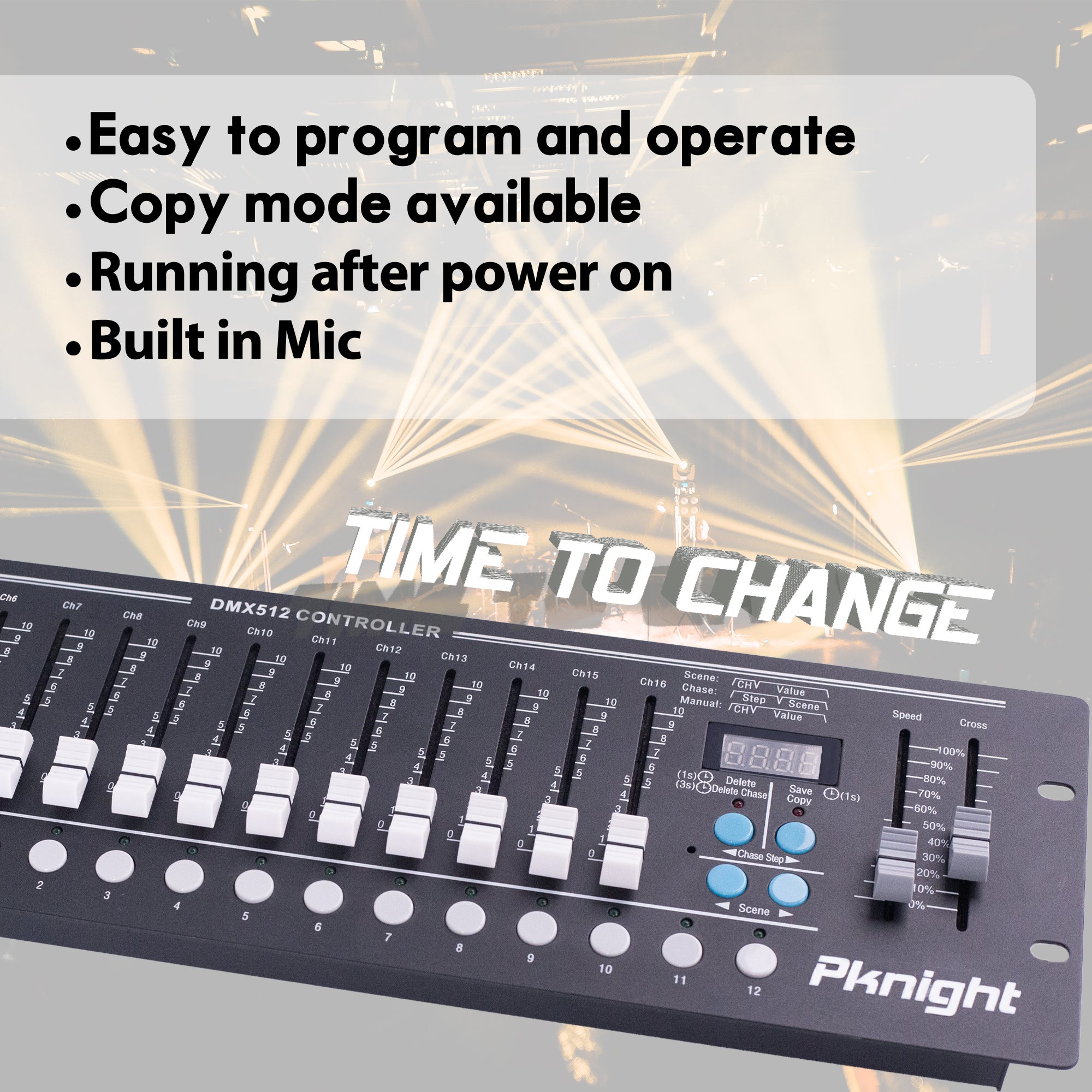

- Auto Playback on Power-Up ：Can be set to automatically run a designated scene or chase upon startup. Ideal for unattended environments such as ambient lighting, street scenes, square lighting, and architectural facade illumination.

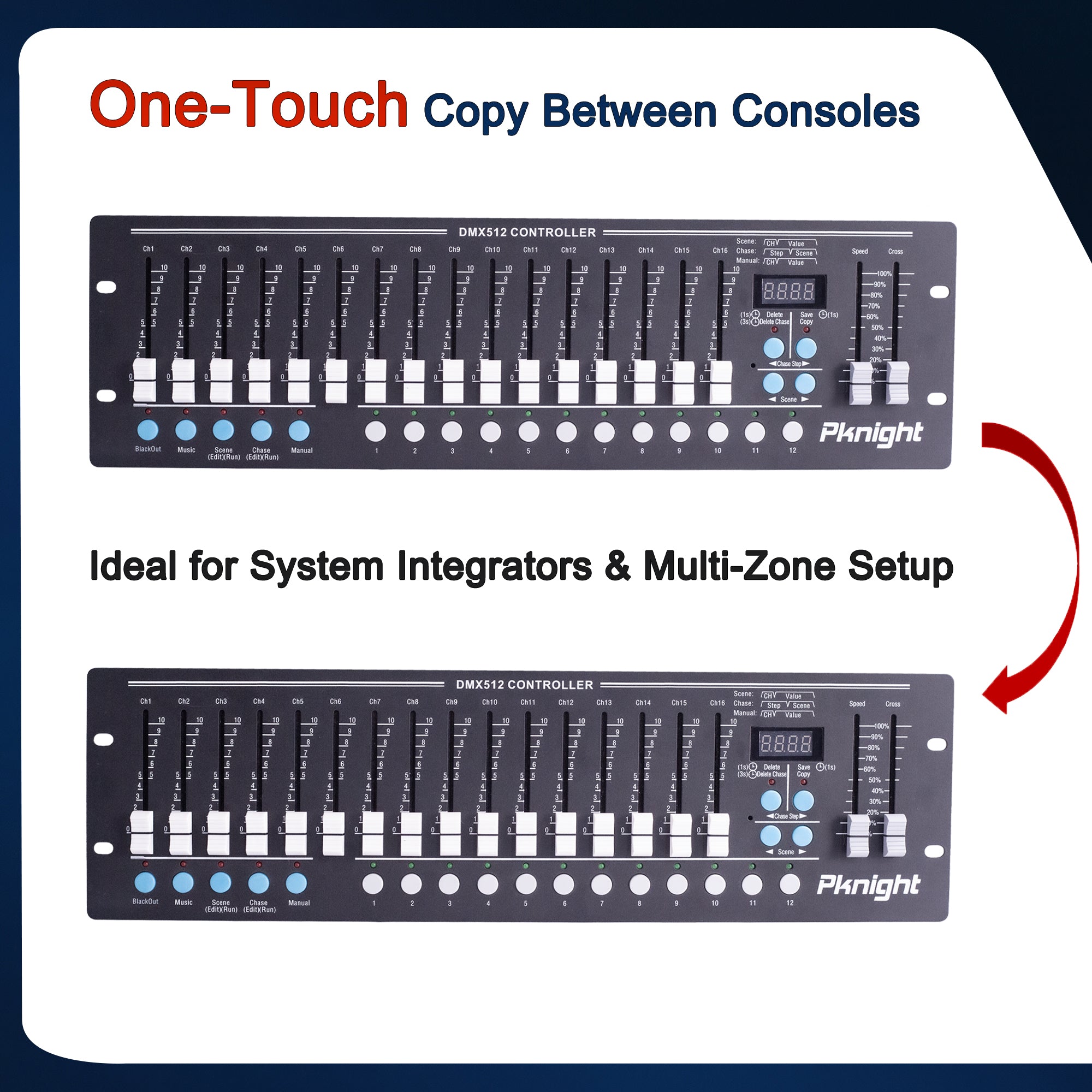

- Console-to-Console Copy Function ：Supports one-click data copying between two consoles. Program one device, then quickly replicate the settings to any number of identical units—perfect for system integration or large-scale deployment.
- Flexible Scene and Chase Programming：Stores 100 scenes (0–99), with scenes 0–11 directly accessible via panel buttons—no bank structure needed. Supports 12 chases with up to 100 steps each; scenes can be assigned to any step in any order for flexible, creative programming.

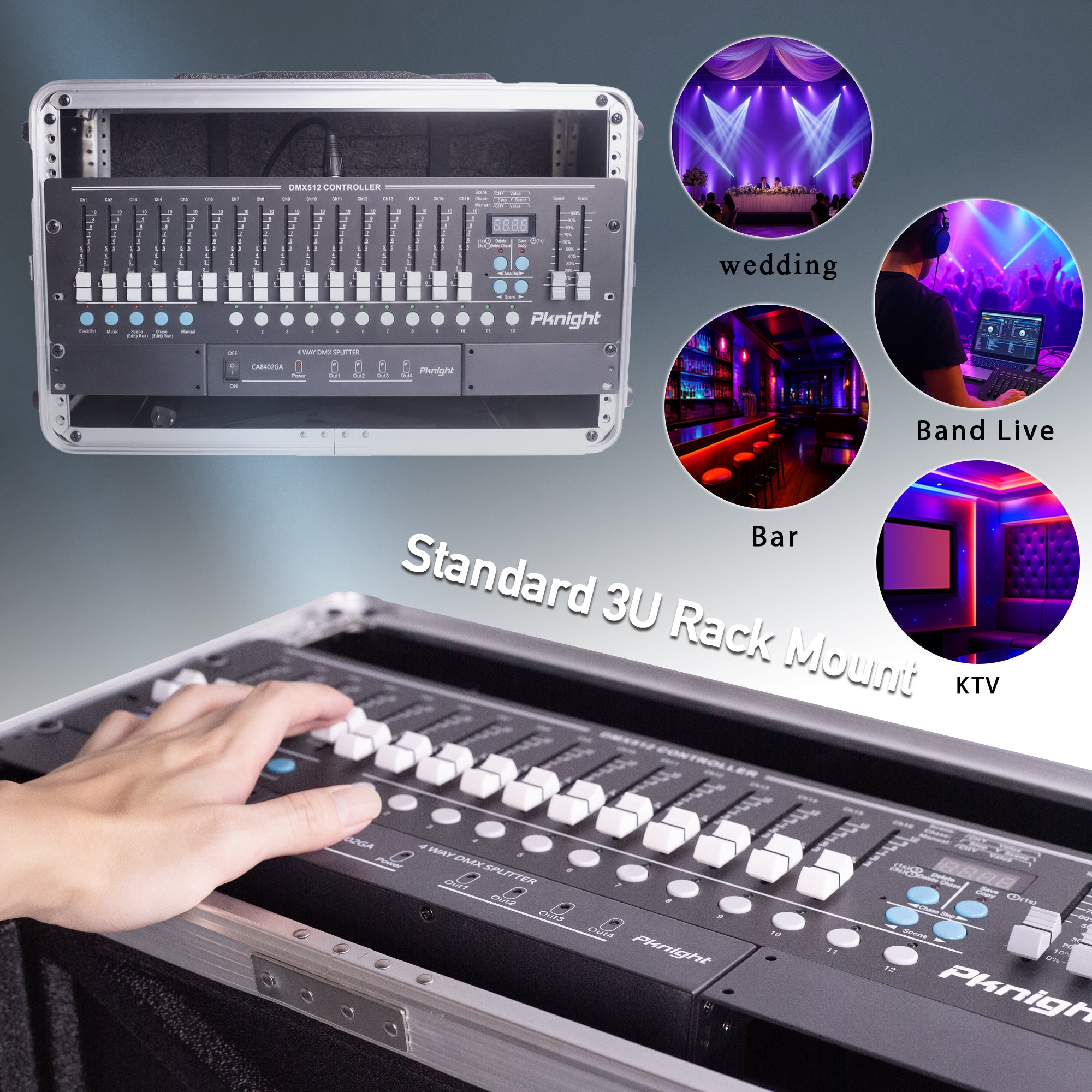

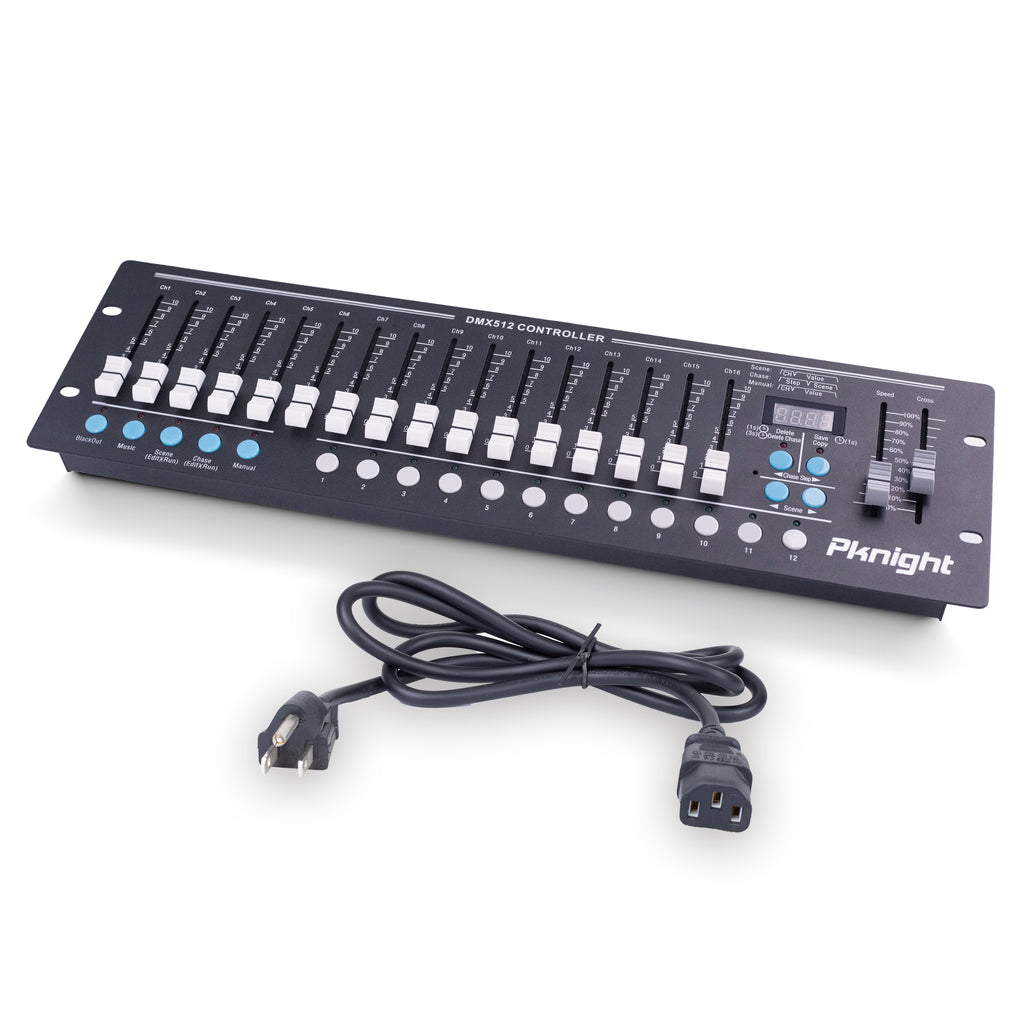

- Compact Rack-Mount Design ：Compatible with standard 3U rack installation and equipped with a built-in switching power supply. Simply connect a standard IEC power cable to 110V AC—no bulky external adapter needed, ensuring a clean and professional setup.
- Audio Trigger and Tap Sync ： Supports sound-activated triggering via built-in microphone and Tap Sync button for manual beat matching—ideal for live DJ and music environments.

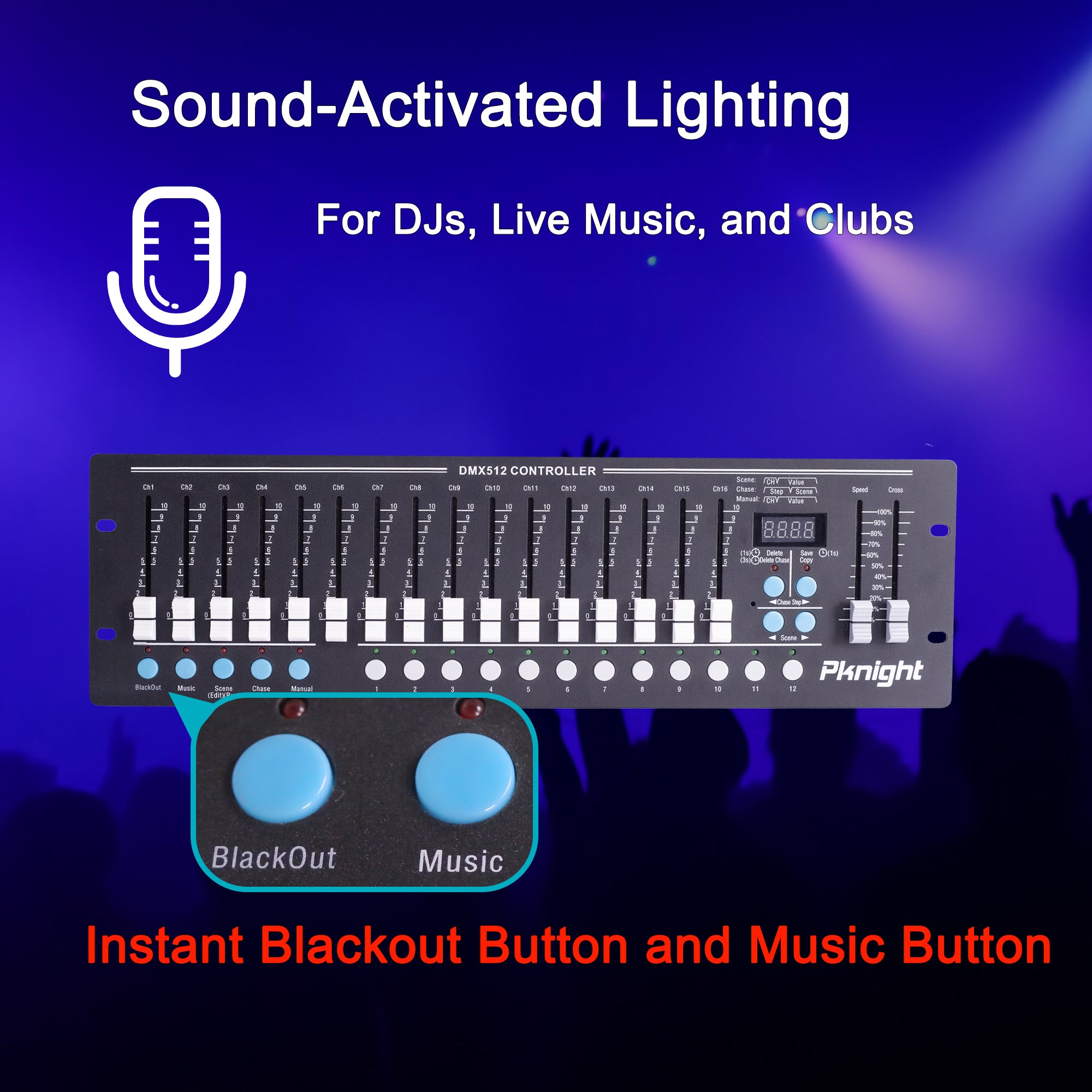

- Instant Blackout Button ： Equipped with a dedicated blackout button to instantly turn off all output channels—perfect for live performance control and emergency use.
Product Description
Smart Layout with Pro-Grade Controls
Versatile Lighting Control for Every Scenario
-
Q1: What kind of power supply and rack installation does it support?
A1: It features a built-in switching power supply supporting 110–240V AC via IEC cable. The unit fits a standard 3U rack, making it ideal for professional installations.
-
Q2: Can I sync lighting effects with music or beats?
A2: Yes. The controller features a built-in microphone for sound-activated lighting—ideal for DJs, parties, and live music events.
-
Q3: Does it remember my settings after power off?
A3: Yes, the controller features power-off memory. All programmed scenes and chases are saved automatically and will remain intact after shutdown or reboot.
-
Q4: What kind of lights or DMX devices is it compatible with?
A4: It is compatible with all standard DMX512 lighting fixtures, including moving head lights, LED PARs, laser lights, fog machines, and more—no brand restriction.
-
Q5: How many fixtures or channels can this controller handle?

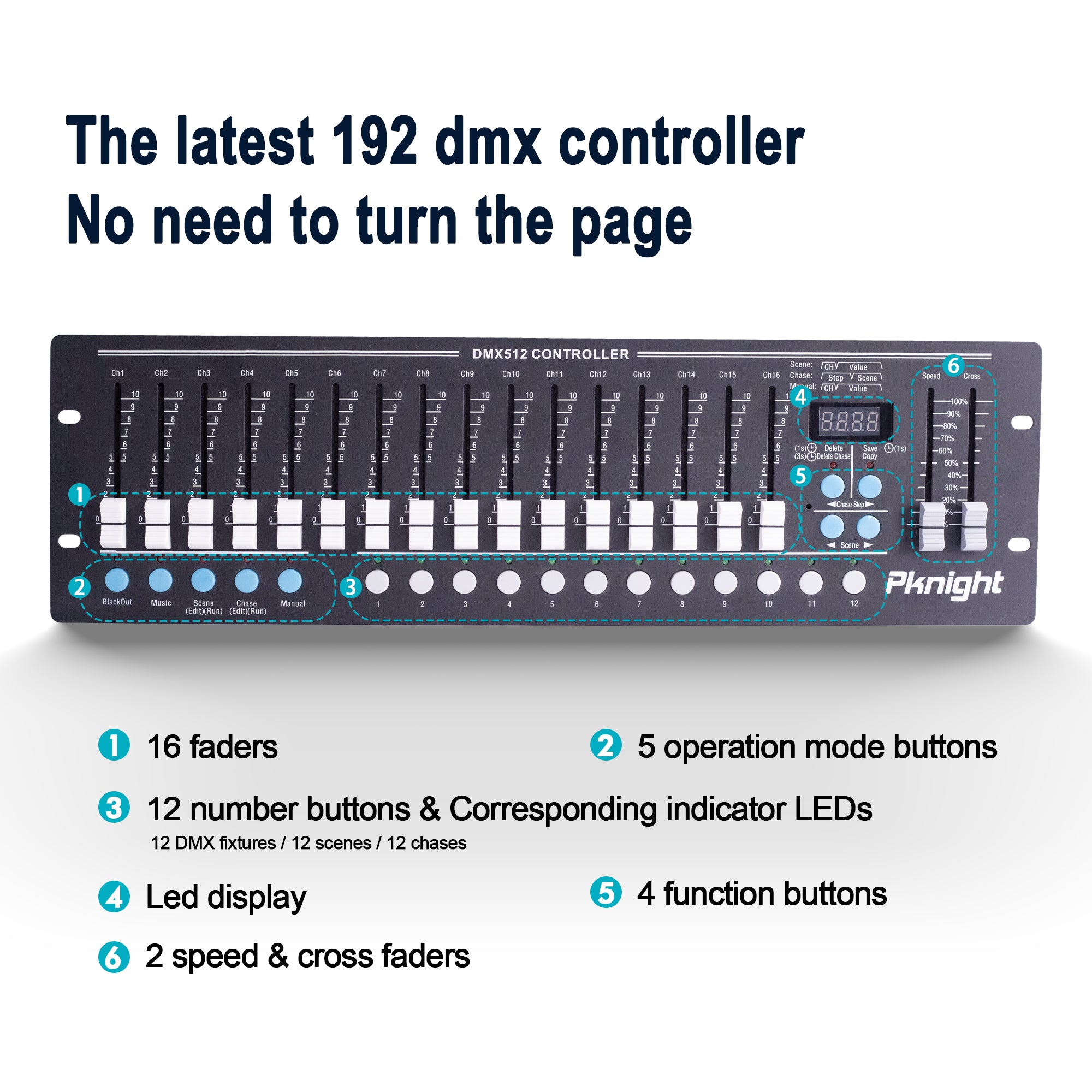

A5: The controller supports up to 192 DMX channels, allowing you to control multiple fixtures across 16 physical faders without the need for paging.
