About this item

• Advanced ArtNet-4 Integration: The ArtNet controller offers extensive customization through Net, Subnet, and Universe settings, capable of managing up to 32,768 DMX channels. It's perfect for large-scale events and complex lighting scenarios, providing exceptional scalability and flexibility.
• Comprehensive DMX Channel Control: This 8-channel ArtNet to DMX controller allows for precise management of extensive lighting arrays, ideal for sophisticated stage designs that require detailed synchronization and dynamic effects.
• Compact Rack-Mount Design: Designed to fit seamlessly into a standard 19-inch, 1U high rack, this controller integrates effortlessly into both live performance and studio setups. Its modular design also eases installation alongside other audio equipment.

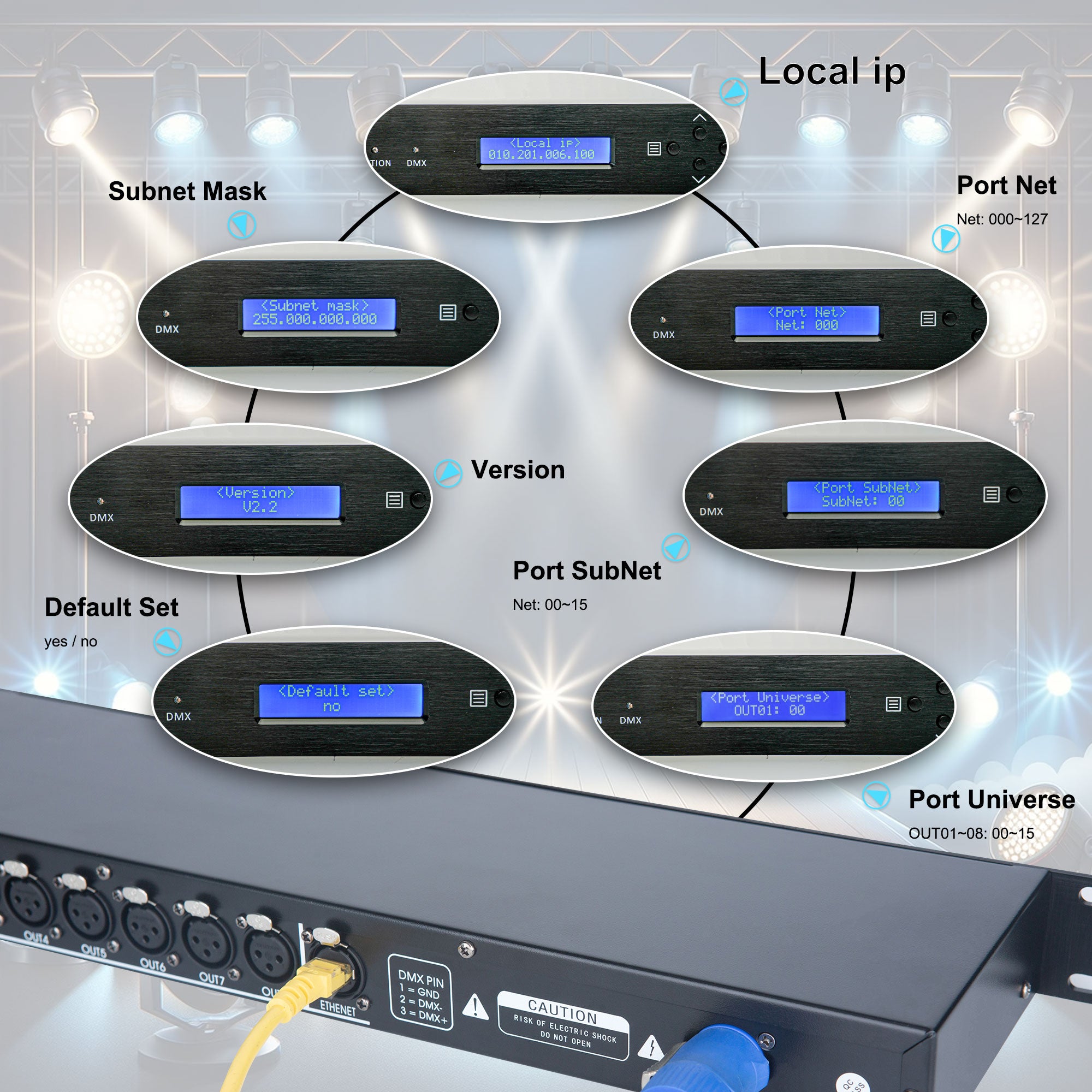

• Direct Configuration Capabilities: Equipped with an LCD and straightforward control buttons, this unit enables quick onsite adjustments to network settings, enhancing maintenance and operational efficiency.

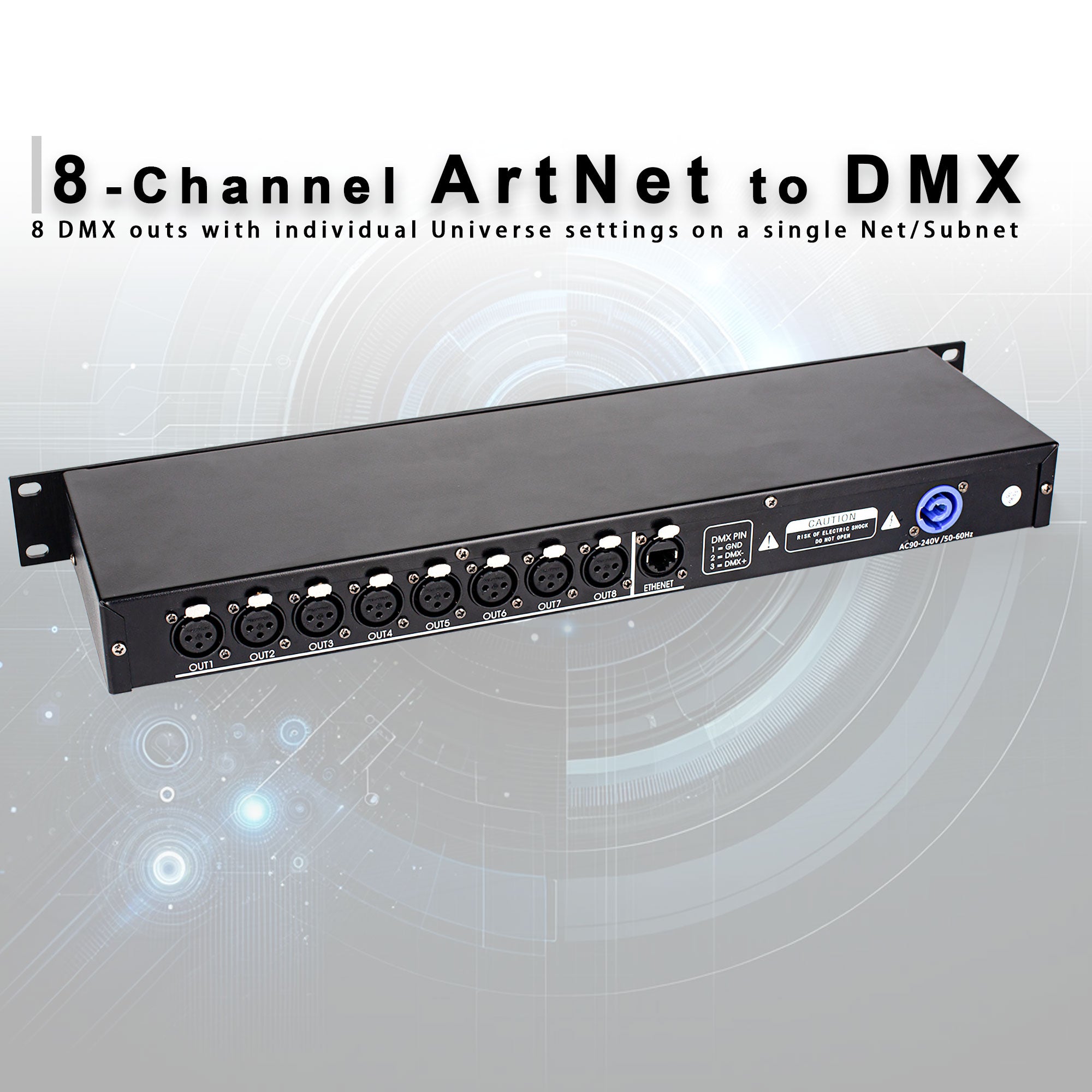

• Highly Configurable Outputs: Each of the 8 DMX outputs is independently adjustable, allowing for precise universe settings within a unified Net/Subnet framework.
• Durable and Economical: Built to withstand rigorous use, this ArtNet controller offers lasting reliability and low maintenance costs, making it a cost-effective choice for both fixed installations and touring shows.

Product Description

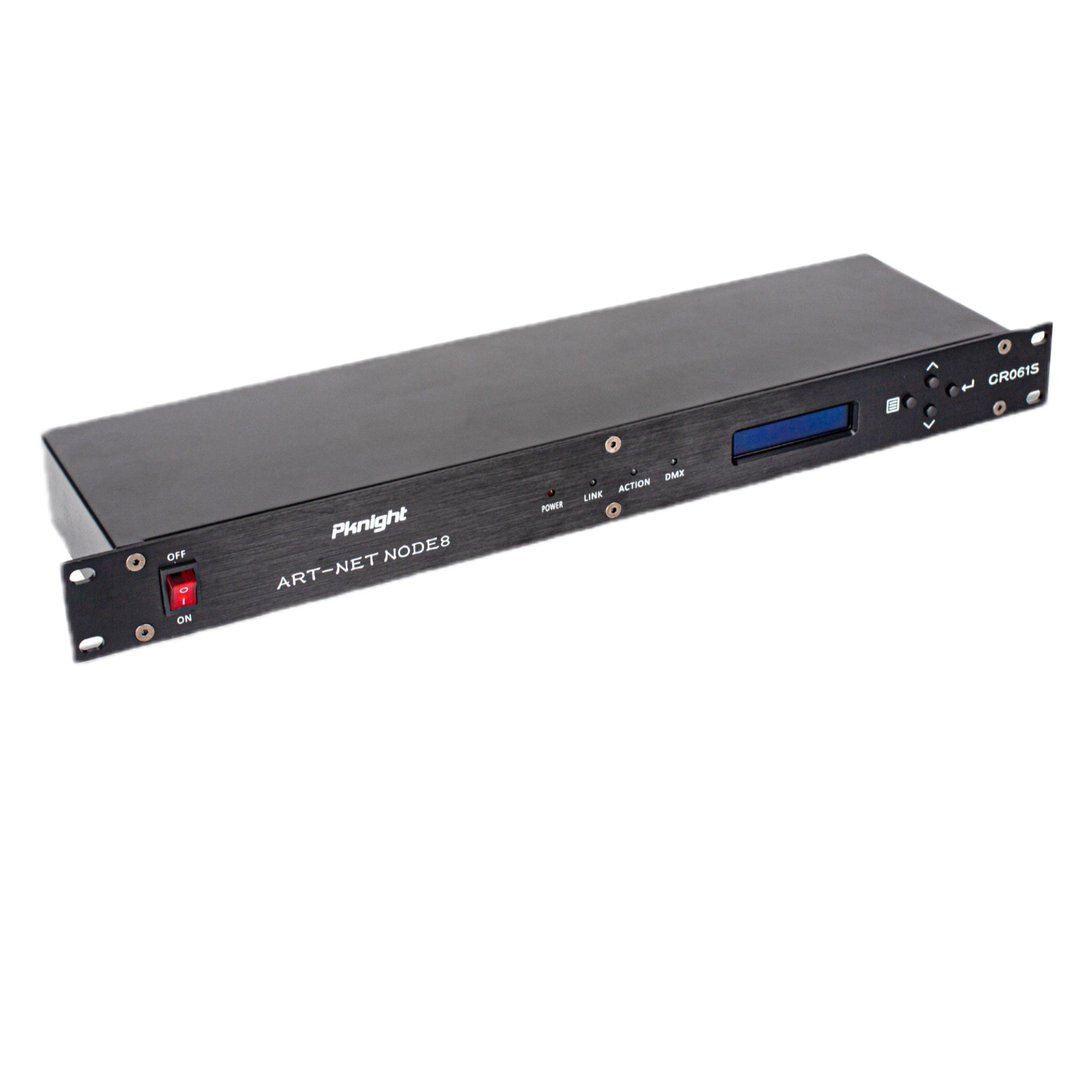

OverView

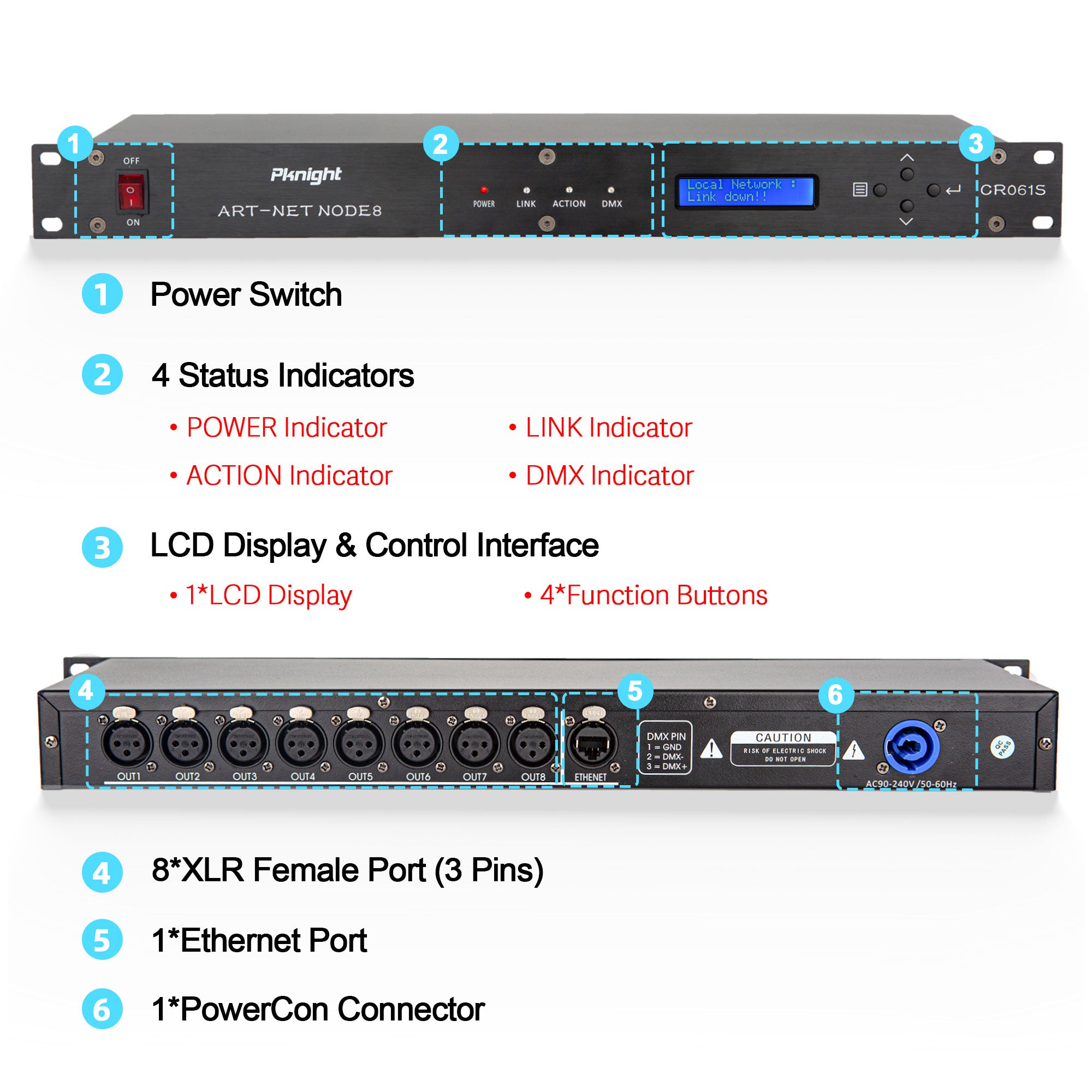

Four Status Indicators

1. POWER Indicator: Red light on when the device is powered.
2. LINK Indicator: Orange light on when connected to a network.
3. ACTION Indicator: Orange light on when receiving network signals.
4. DMX Indicator: Green light on when processing ArtNet signals

Note：If ACTION is lit but DMX is not, the signal received is not ArtNet and cannot be processed.

• Menu Button(leftmost button with the menu icon): Click to switch the menu option
• Backward or Minus Button(top button with the upward arrow): To go backward or minus in the selected function or parameter
• Forward or Plus Button(bottom button with the upward arrow): To go forward or plus in the selected function or parameter
• Enter Button(rightmost button with the curved arrow icon

1. Click to choose function or parameter Press
2. Hold for 3 seconds to save the settings
