• Overview of Artnet4- CR041R

• Remote configuration about cr series artnet controllers from Pknight

Features

• It is the most cost-effective artnet and dmx adapter with very comprehensive functions.

• East to set up: With the led display and 4 function buttons, you need not to find some applications or a web configuration to set it up.
• Truss Mountable: There is a M10 screw holes on the top of the node box, you can easily install it on the truss with a stage light clamp hook.

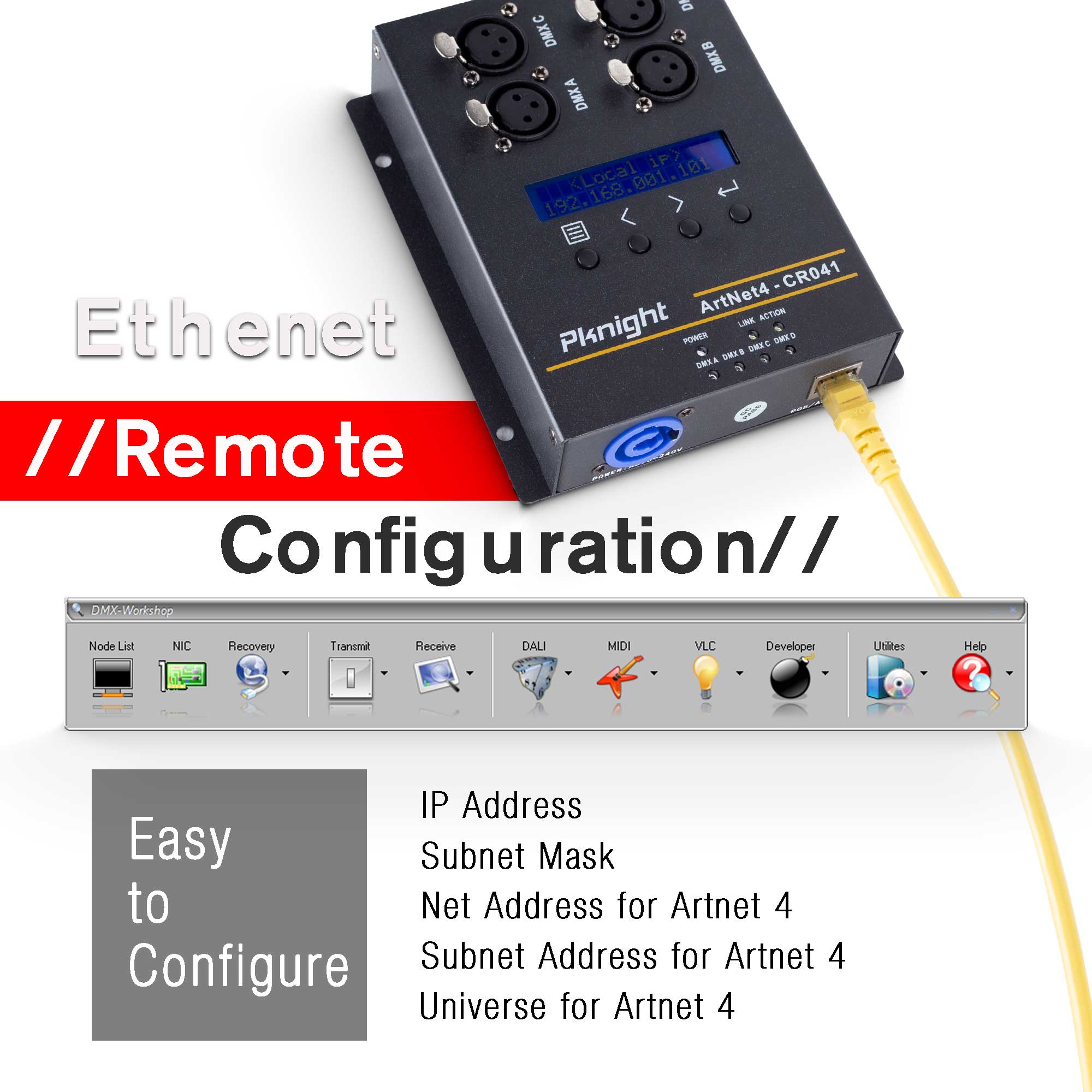

• Remote Configuration: we can remotely configure the IP address, subnet mask, net address, subnet address, and port universe through the software DMX Workshop.
• PoE Available: Built tough and compact the adapter can be powered by PoE (power over ethernet),get a standard 48V PoE switch with 1 2 3 6 pins Power supply，You can use the existing network cable instead of the power cable to power the device, which is very convenient.

• 4x DMX512 Out (3pin) with Art-Net, control up to 2048 channels.
