Pknight CP0802 Power Sequencer DMX Relay Pack RS485 Smart Switch

30 auf Lager
color :
Shipping From :

Shipping information

Free Shipping for Products in Overseas Warehouse

Shipping Info

Free shipping if the product is in stock in your country.

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

If we forget to set the shipping fee for your country, please contact us and we will set the shipping fee for your country.

Manual Link:Here

About this item

  • 90-240V/20A Switched PDU:the unit delivers and manages reliable power to home appliance, music production studio equipment and especially dmx fixtures, NOTE: Max 20A Rated Current for Total Unit!**Do not exceed the rated current of 20A to avoid the wire overheating**
  • 90-240V/40A Switched PDU:the unit delivers and manages reliable power to home appliance, music production studio equipment and especially dmx fixtures, NOTE: Max 40 Rated Current for Total Unit!**Do not exceed the rated current of 40A to avoid the wire overheating**
  • Smart and Simple:the Pknight unit-CP0802 15 is an multifunctional PDU which can be used as power sequencer, delay switch and DMX512/RS485 relay pack. With OLED control system, you can read the status and system menu setting information from the OLED display easily, such as the running mode, timing time, delay time, running, outlets status, DMX setting, RS485 setting etc.

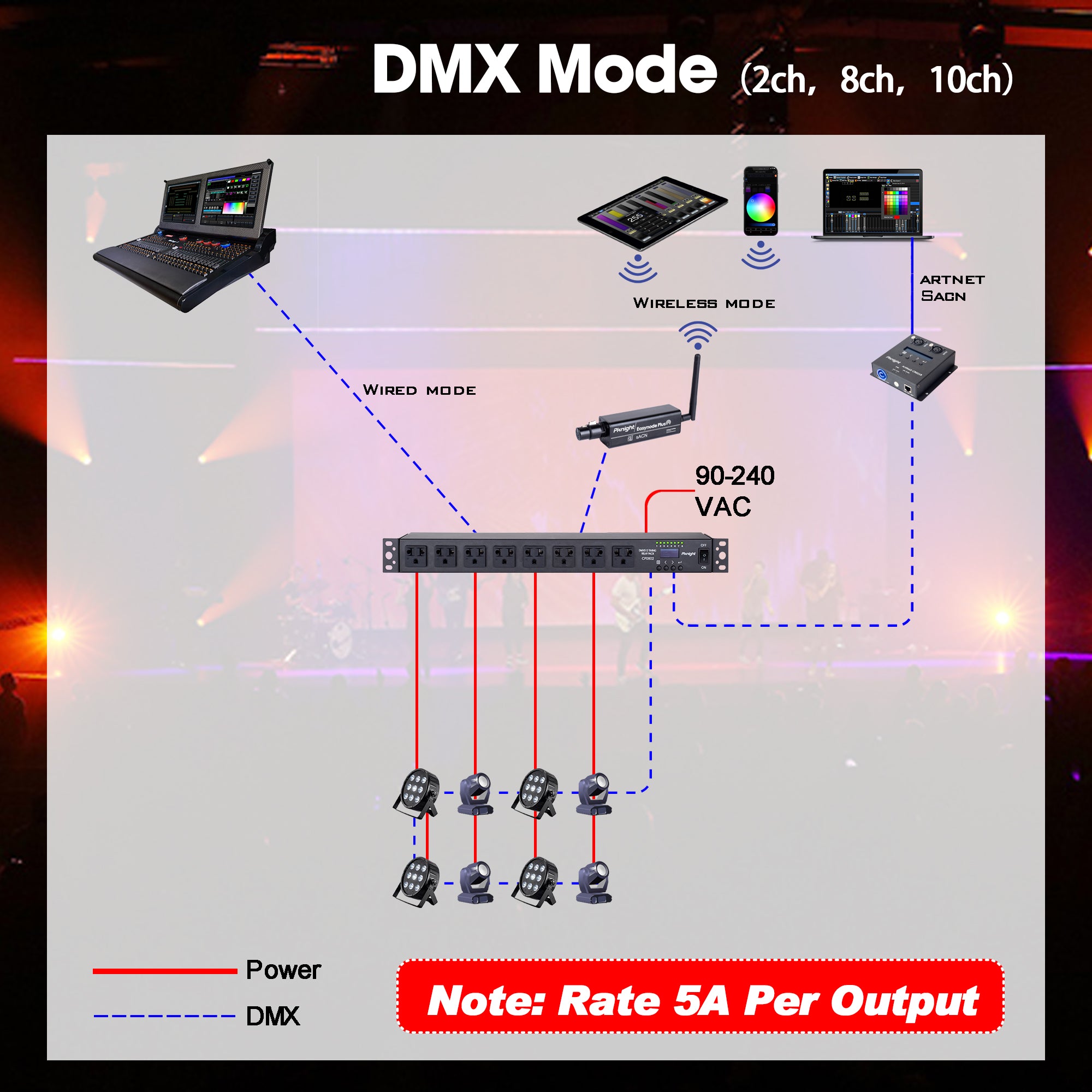

  • DMX Mode:It is the most important feature that the device can be controlled by DMX512.there are three DMX channel options,the 2ch, 8ch, 10ch. so It is a complete solution for delivering Power and DMX data to LED and automated fixtures remotely. Available with our easynode technology or a hardwired DMX input, this relay is ready to go.
  • Manual Mode:you will get the most comprehensive device, 8 outlets can be controlled separately to turn on or off, start time delayed power sequencer with 0~10s help expand to more outlets. timing time can be customized from 0-10s.
  • Lock Mode:In DMX mode, even if the dmx signal is lost,the eight relays will hold their value; or Sometimes the dmx controller accidentally powers off and restarts and outputs all 0, Don't worry, these 8 relays can still stay in last state
  • Code Mode:Compatible with RS485, it can be a smart switch controlled by some central controller or pc which can output RS485.

dmx relay pack


Anywhere you need to quickly and conveniently get power control and DMX to fixtures, hazers, or moving lights:

  • - School theatres, cafetoriums, and gymnatoriums
  • - Houses of worship
  • - Theatres retrofitting to LED stage luminaires
  • - Night clubs
  • - Event lighting
  • - Conference and exhibition centers
  • - Hotel ballrooms

Home audio
Live sound
Smart home




(Max 5A Rated Current each)

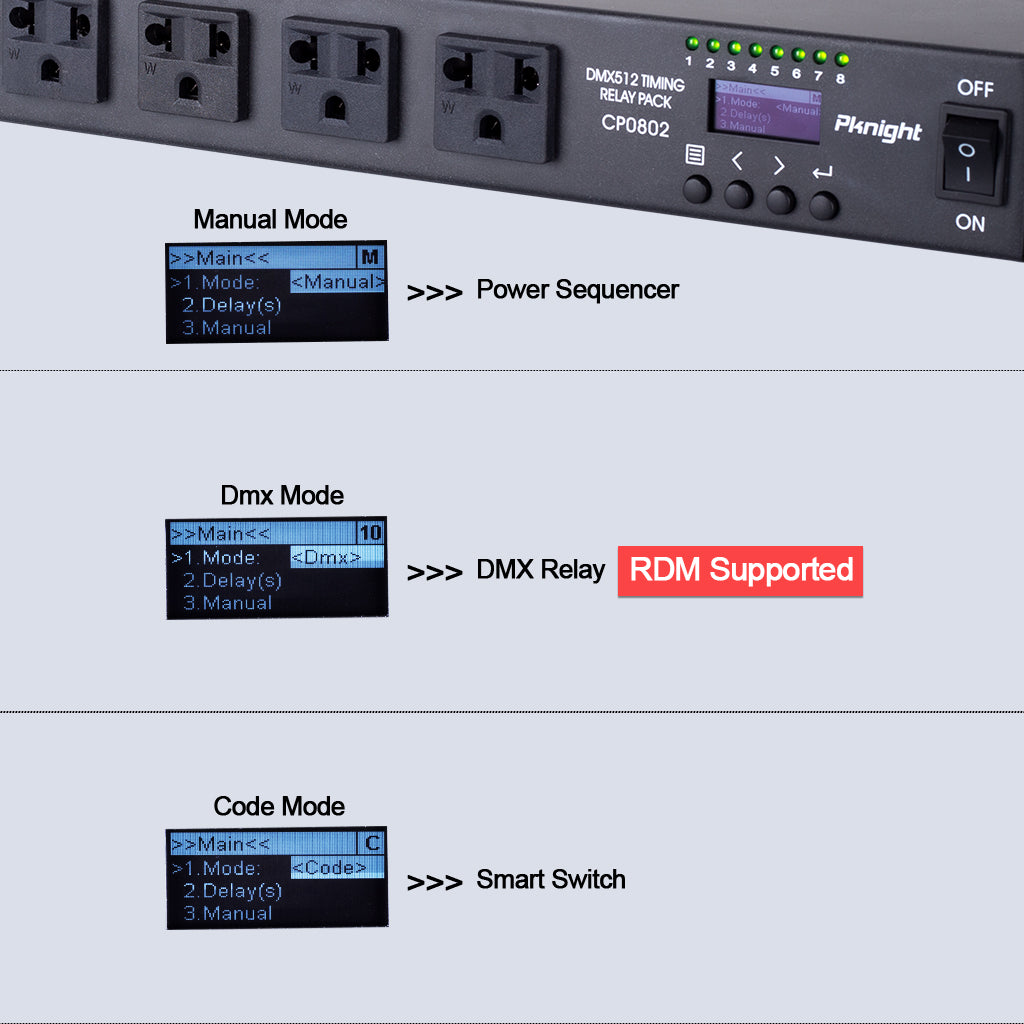

Oled control system

  1. four power indicators
  2. one Oled display
  3. one "meun" button
  4. one "forward" button
  5. one "backward" button

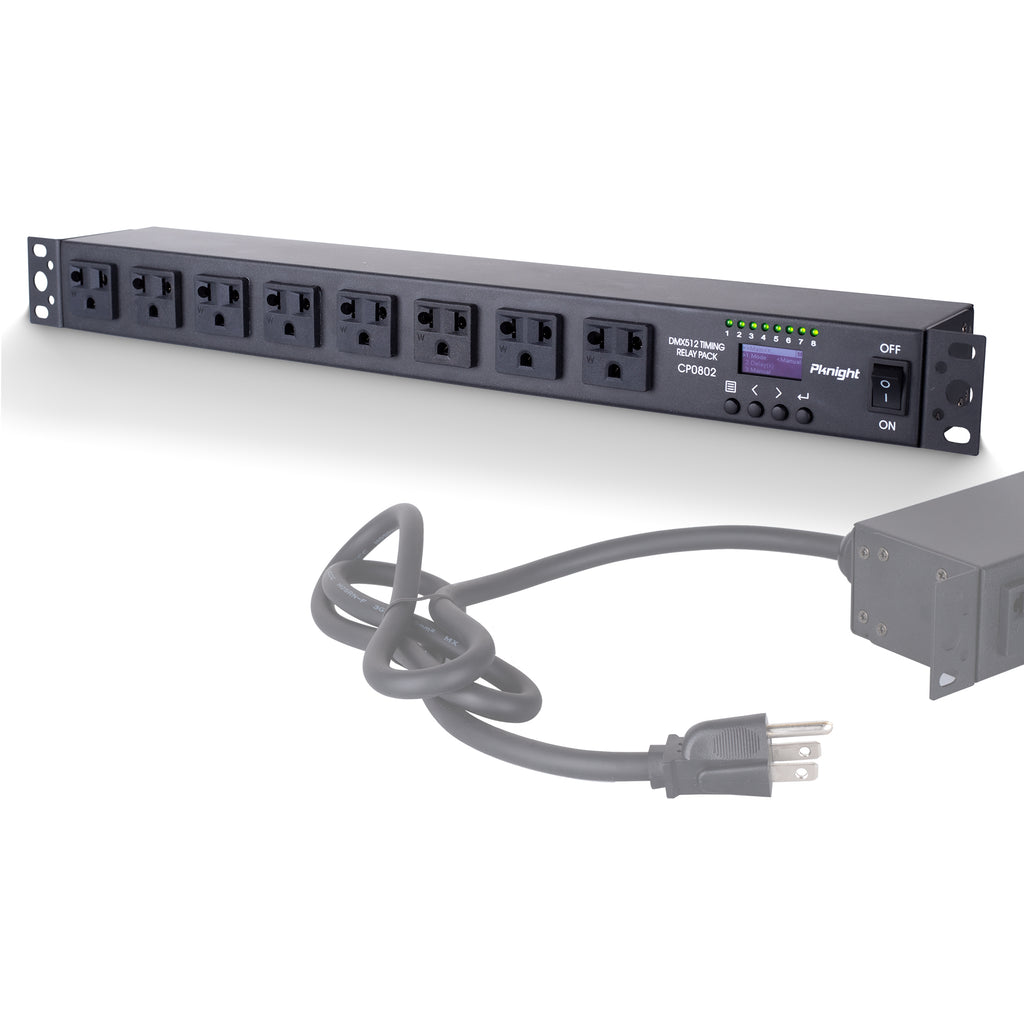

INPUT(20 Amps version)

  • 3.28 ft/100cm power cord
  • NEMA 5-15P straight plug (max 20 Amps)

INPUT(20 Amps version)

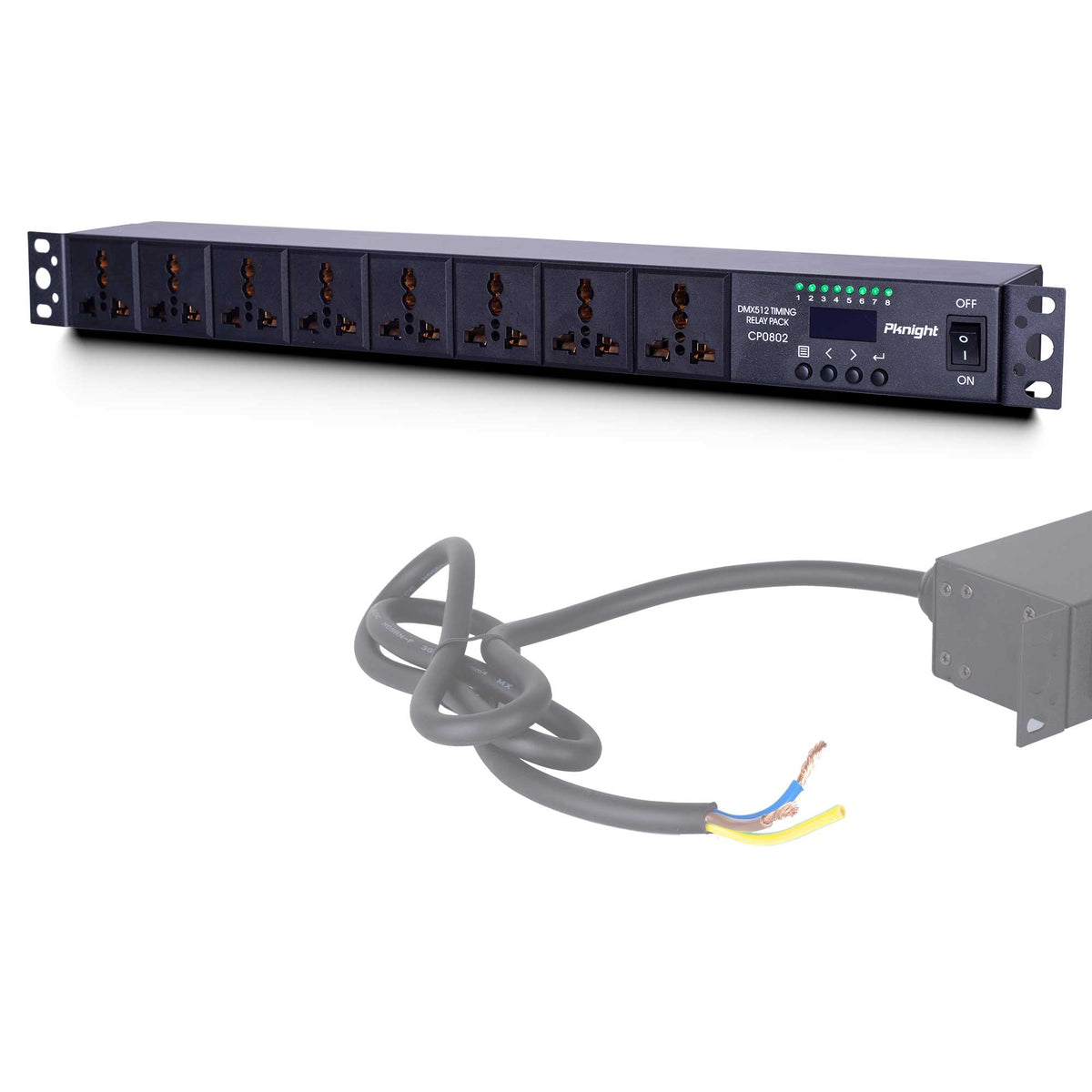

3.28 ft/100cm 11AWG power cord

open wiring (max 40 Amps)

  • Brown:Live
  • Blue:Neutral
  • Yellow and Green:Earth



  • With lock mode, prevents all relays from de-energizing due to dmx controller de-energizing and restarting
  • Ideal for remote timing control
  • Customizable delay time


Manually control the switching of each relay independently and in real time


Combining the features of 2ch and 8ch, make it a most power dmx relay
