Key Product Features
-

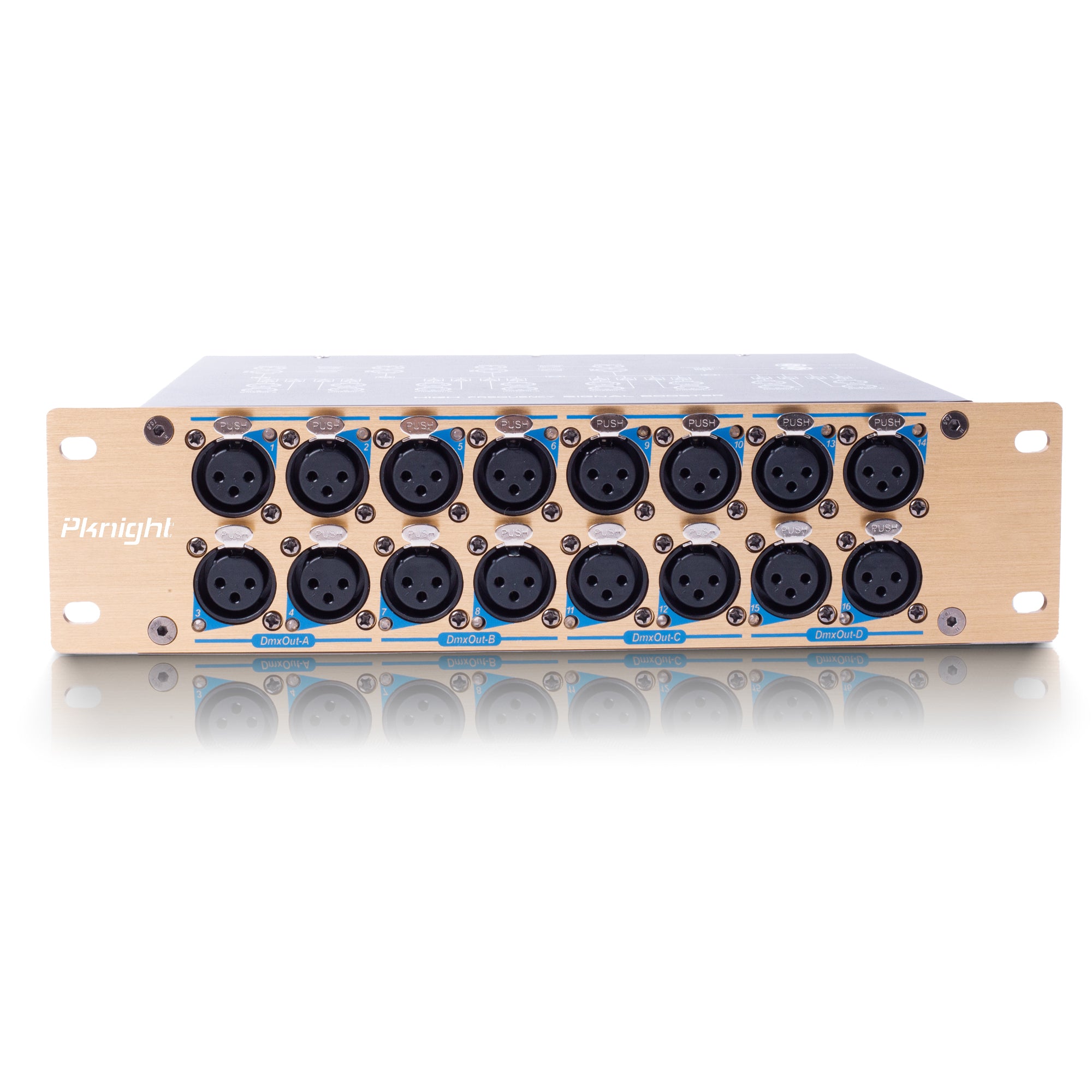

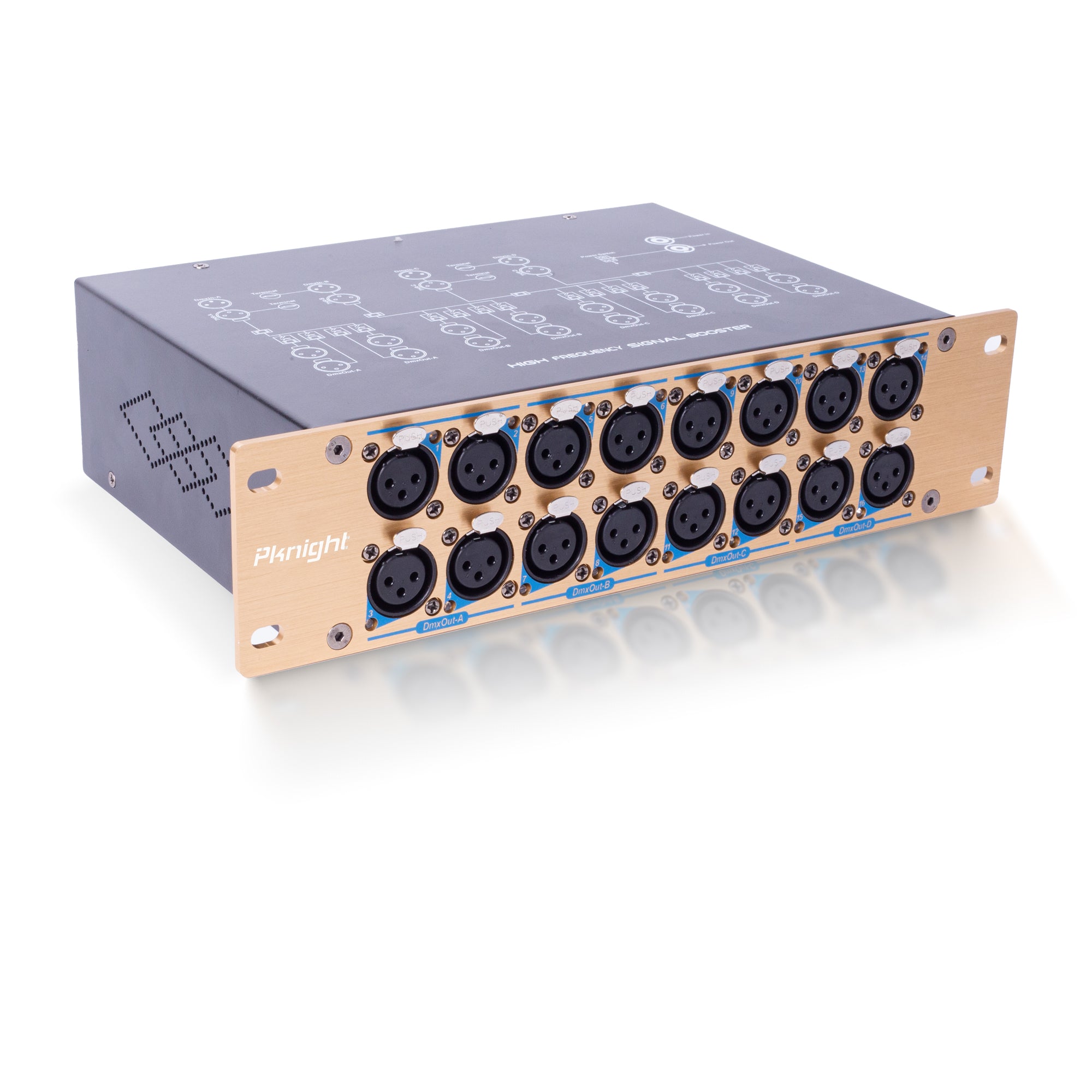

16-Channel DMX Signal Distribution: Designed to distribute DMX512 control signal across 16 front-panel output channels. The outputs are arranged in four clearly labeled groups, DmxOut-A, DmxOut-B, DmxOut-C, and DmxOut-D, helping technicians keep multi-fixture wiring organized.
-

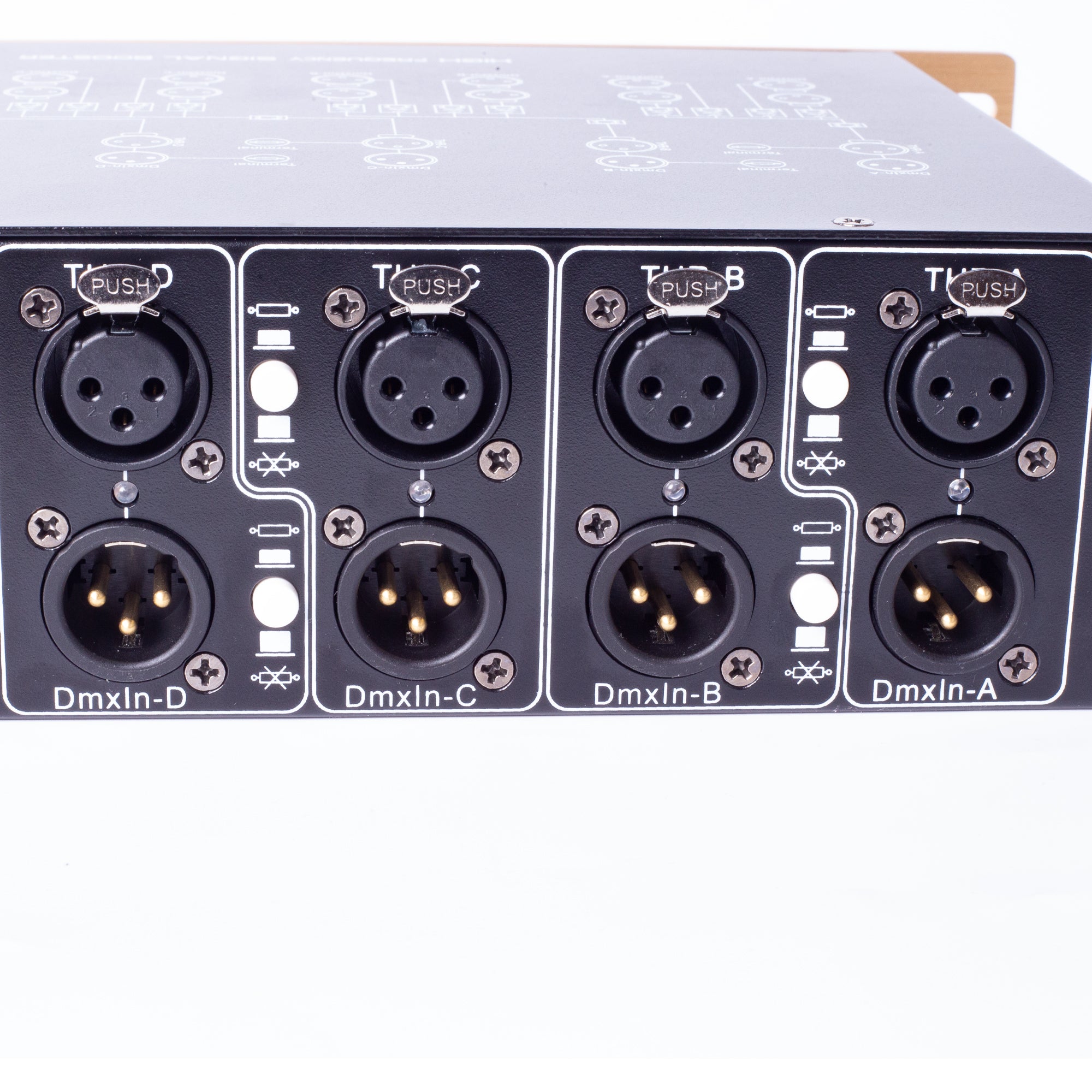

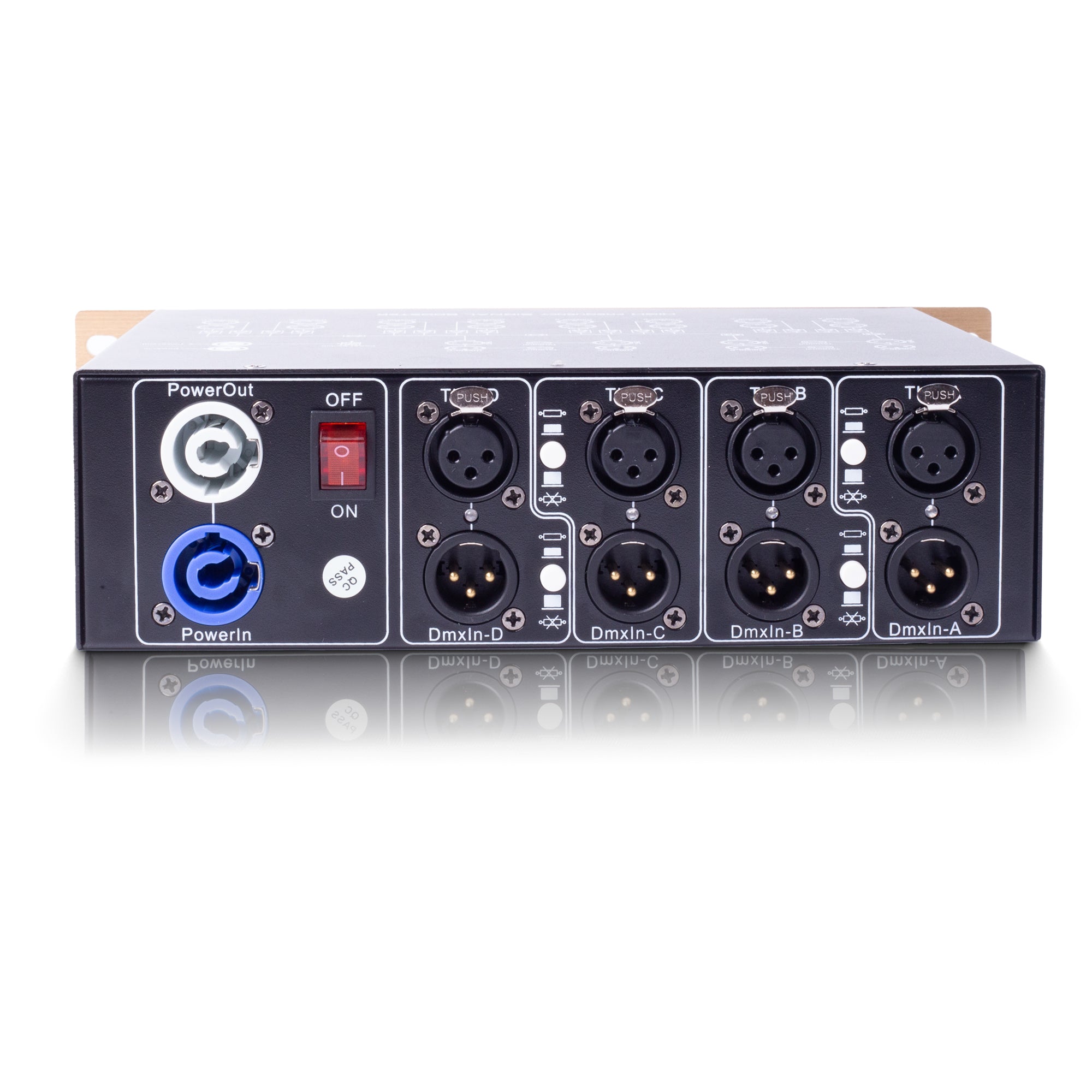

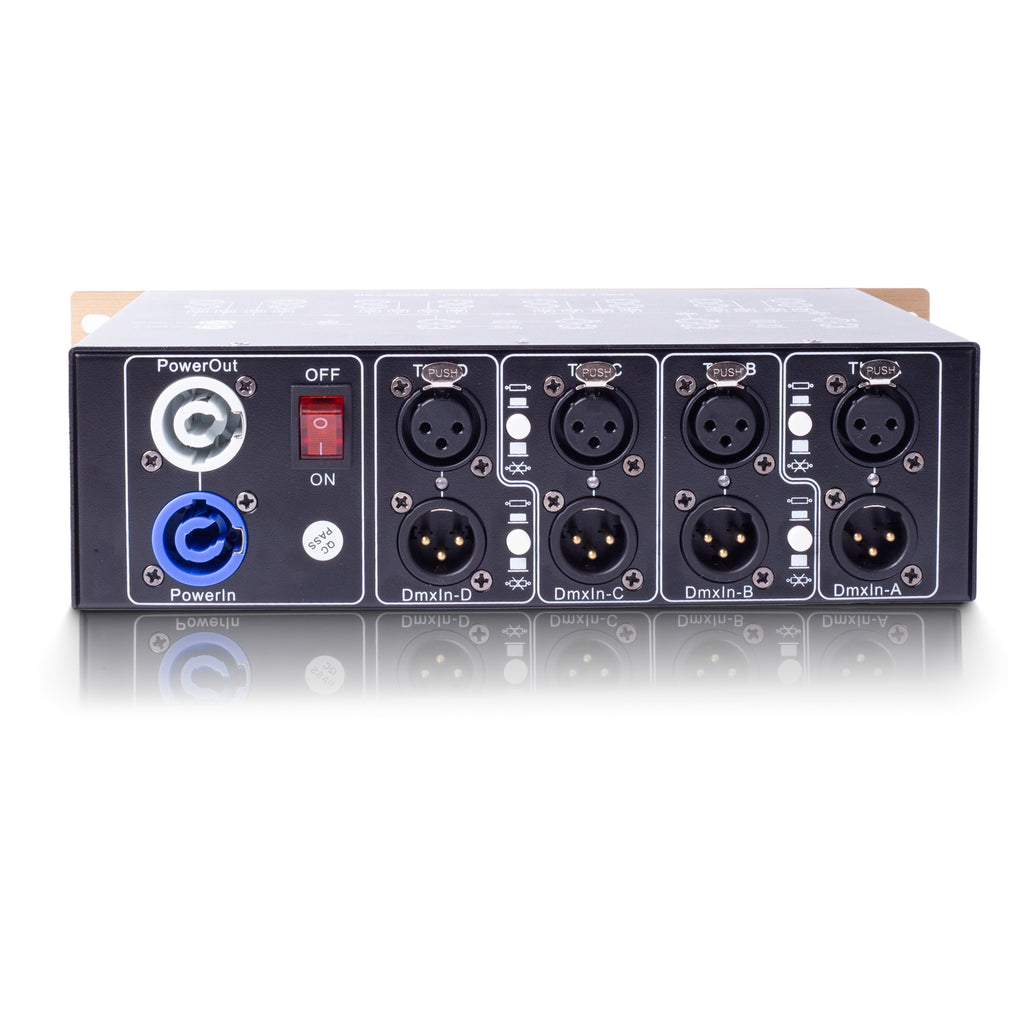

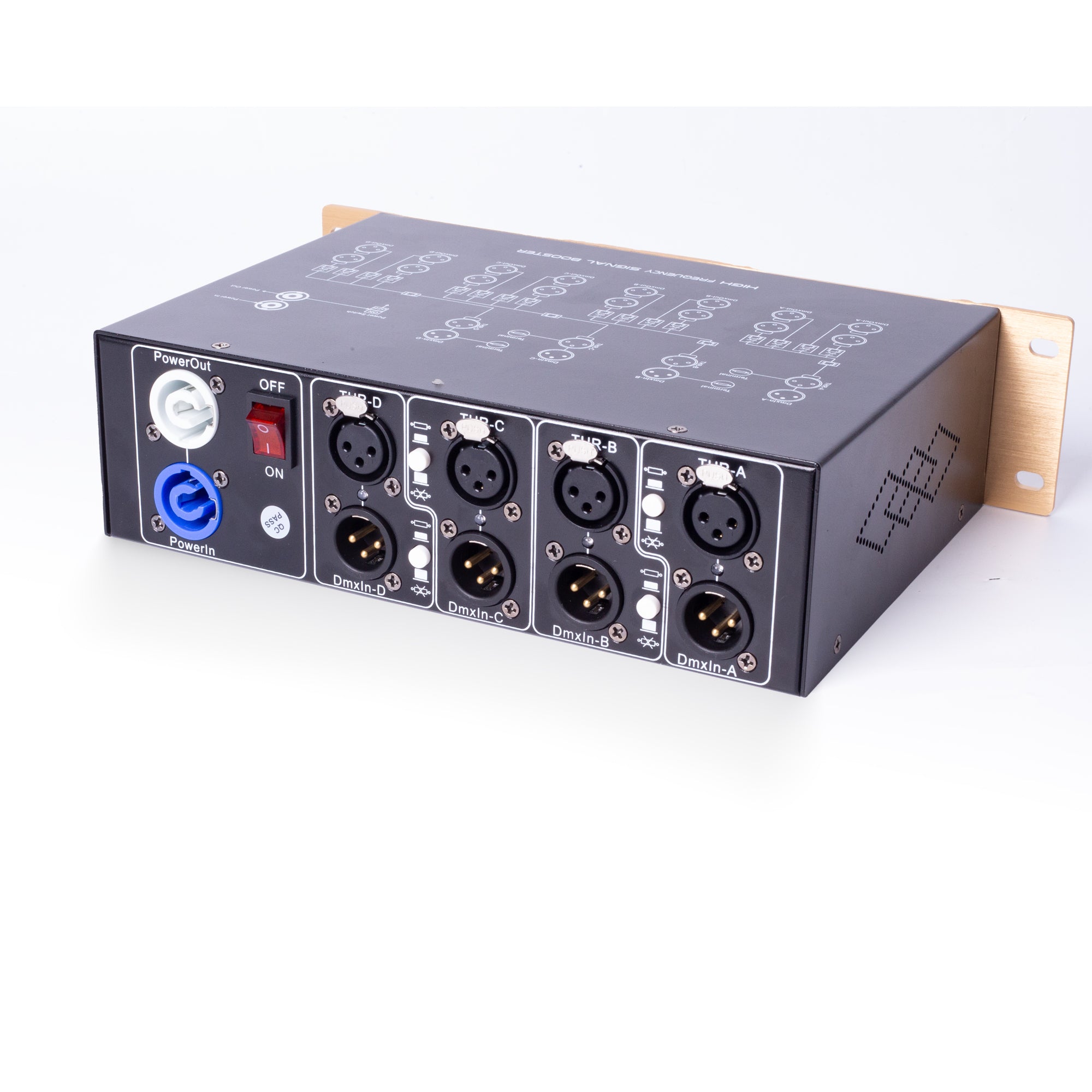

4 Independent DMX Input Groups: The rear panel includes DmxIn-A, DmxIn-B, DmxIn-C, and DmxIn-D input sections, each paired with a matching THR-A, THR-B, THR-C, or THR-D thru connector. This layout supports four separate DMX signal lines in one rackmount unit.
-
Rear Terminal Resistor Design: Built with rear-panel terminal resistor control markings for proper DMX line termination setup. This helps users manage end-of-line signal handling more conveniently during stage, venue, or touring installation.
-
Non-RDM DMX512 Booster: This model is a non-RDM DMX signal amplifier for standard DMX512 lighting control systems. It is suitable for moving heads, LED pars, dimmers, wash lights, effects fixtures, and other DMX receiving equipment that does not require RDM communication.
-

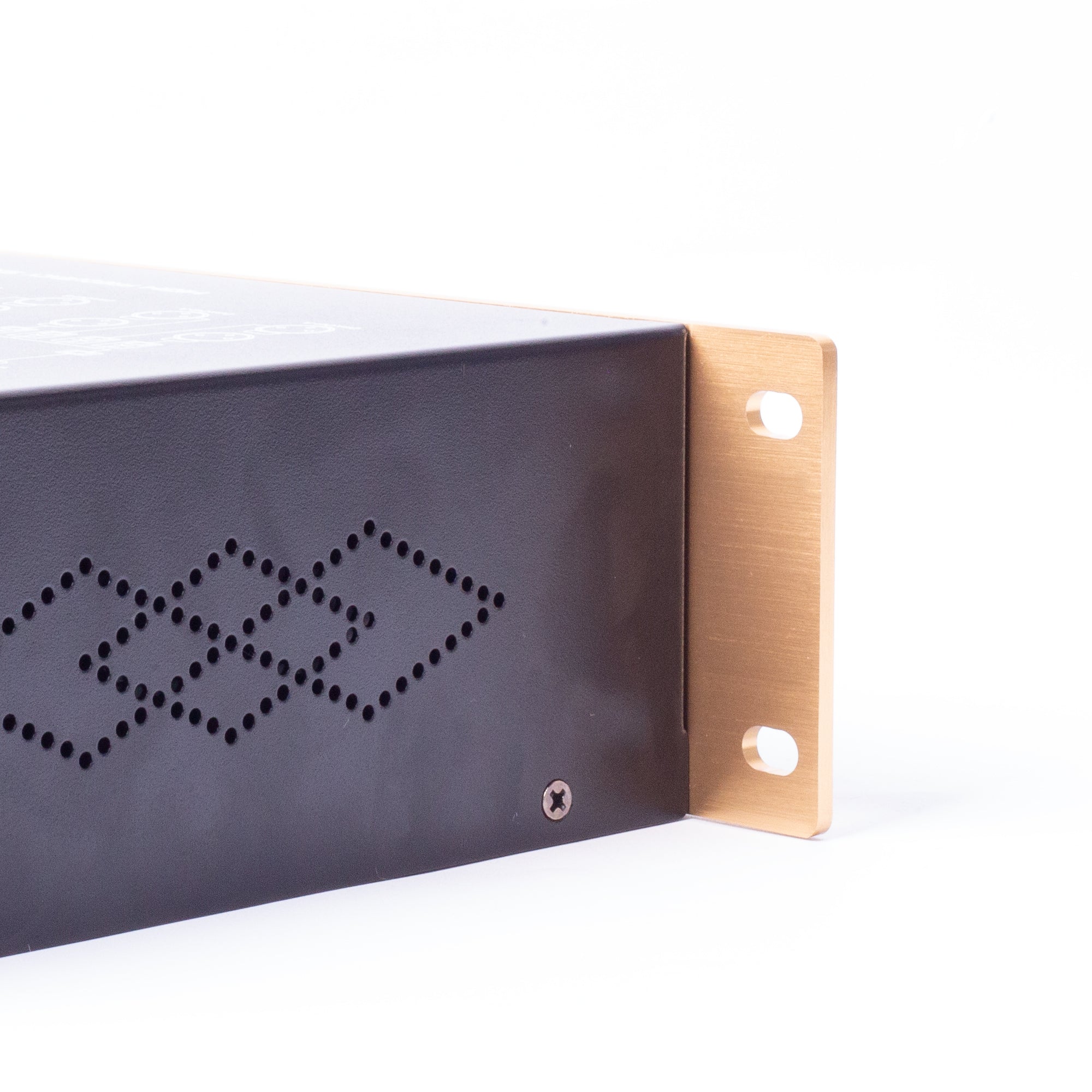

Rackmount Metal Housing: The rugged metal chassis, front mounting ears, rear power in/out section, and clearly printed panel labels are built for professional lighting racks, control rooms, theaters, churches, clubs, studios, and mobile event systems.
Product Description
This 16-channel non-RDM DMX signal amplifier is designed for professional DMX512 signal distribution in stage lighting and event control systems. It provides four DMX input groups on the rear panel and sixteen DMX output channels on the front panel, making it a practical solution when multiple lighting fixture runs need to be organized from one rack-mounted unit.
Each input group is labeled A, B, C, or D and includes a matching thru connector for signal pass-through. The front panel separates the sixteen outputs into four output groups, helping users route and identify fixture lines quickly during setup, rehearsal, and live operation.
The rear panel includes terminal resistor markings for DMX termination control. This is useful when setting up longer signal chains or managing the last device on a DMX line. The unit uses standard 3-pin XLR DMX connectors and a rackmount metal housing suitable for fixed installations and mobile production environments.
This model is intended for standard DMX512 signal boosting and distribution only. It does not support RDM control.
