Quick Guide --- 8 Port DMX Splitter

8-Port RDM DMX Splitter & DMXelf Tutorial for RDM Control

FEATURES

• On-Site "Split-Merge" Function Support: Easily switch between two 4-way or one 8-way mode with a dual-mode switch, enhancing flexibility, reducing equipment needs, and saving space and costs. Perfect for quick adjustments.

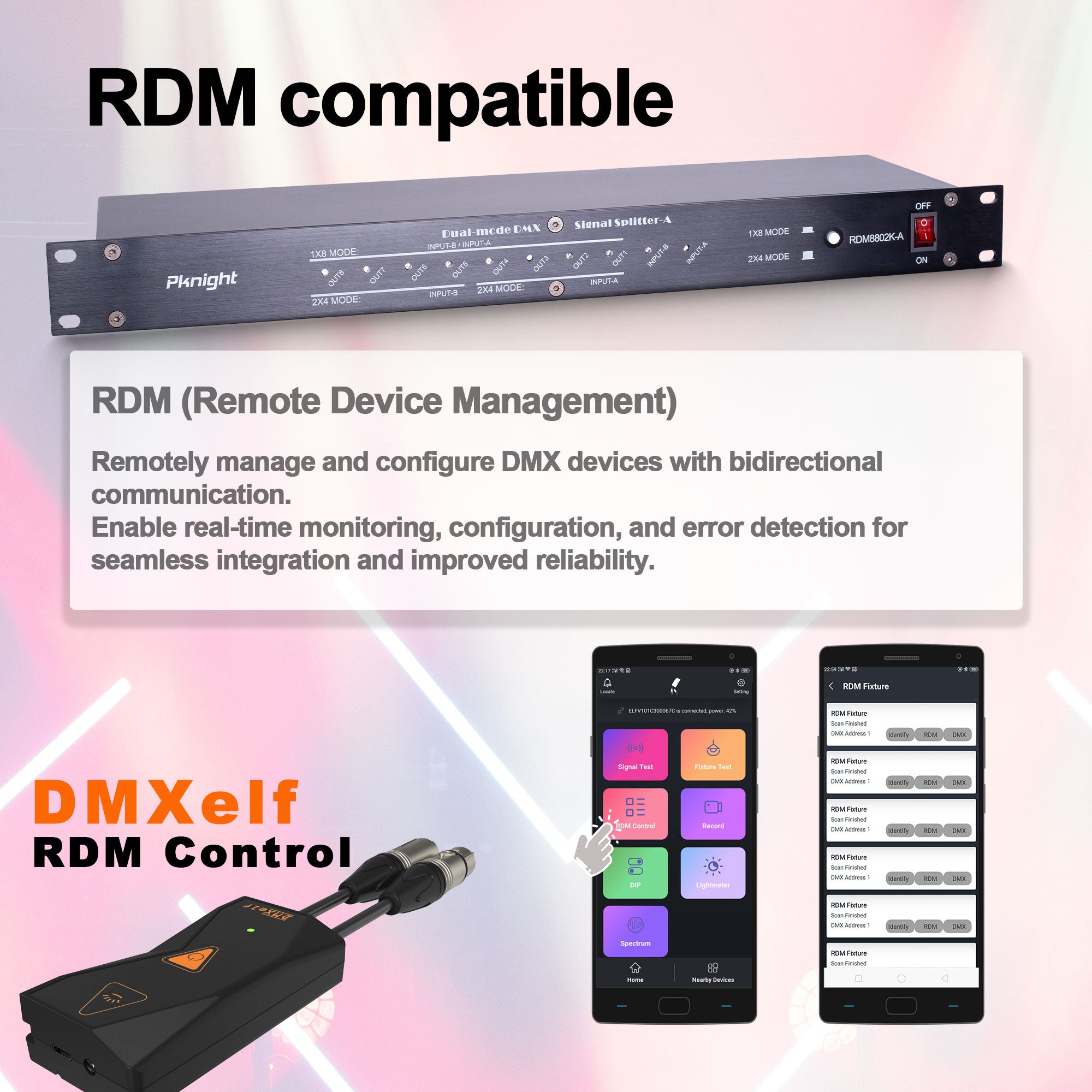

• RDM Transmission Support: Supports bidirectional RDM communication for remote device management, real-time monitoring, and easy fixture configuration. Ensures seamless integration, reduced setup time, and improved system reliability.

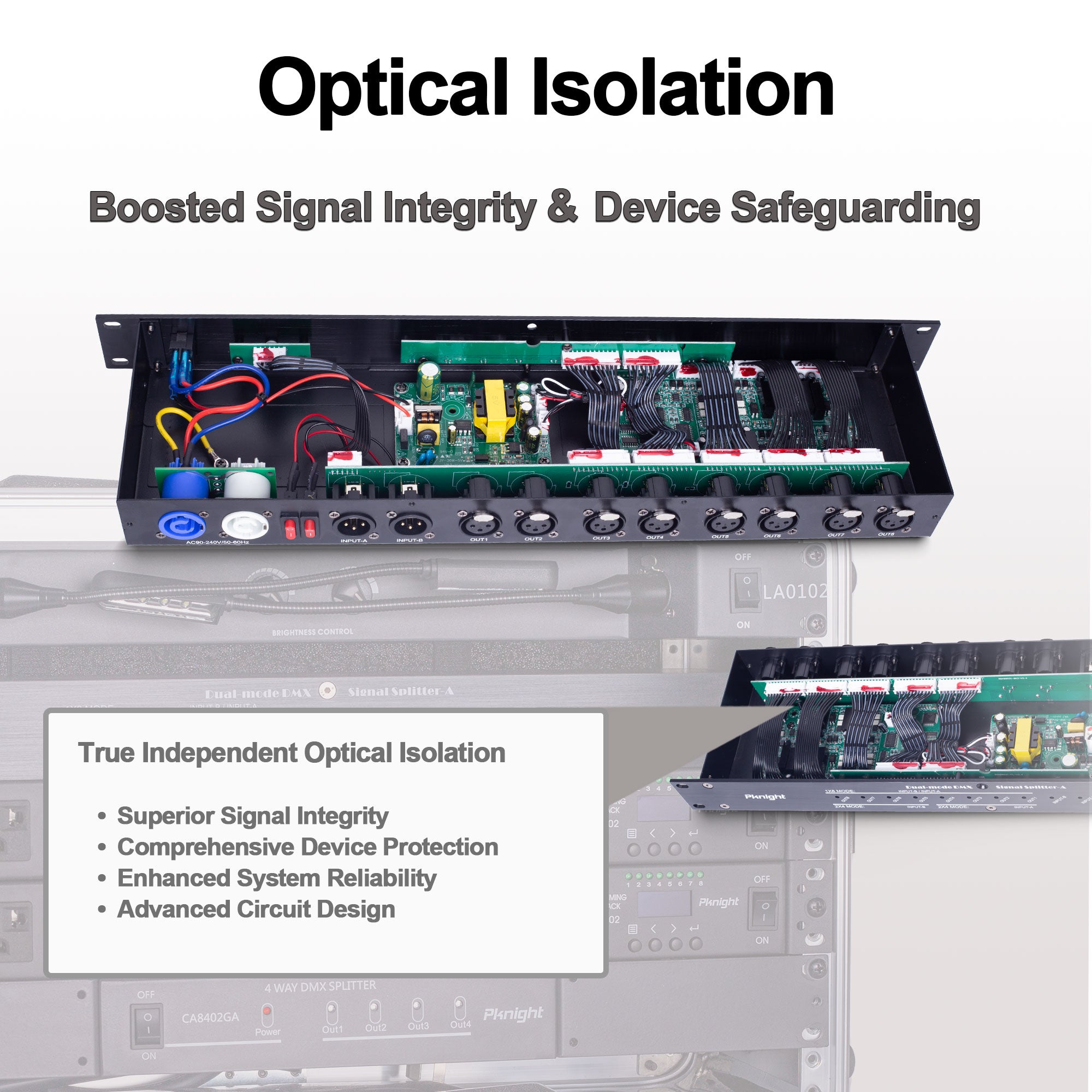

• Optical Isolation: Each port features independ
• ent power and optical isolation with surge protection, enhancing safety and reliability while protecting equipment from electrical damage.
• Integrated Terminator Resistor: Eliminates signal reflection and interference, ensuring stable and reliable data transmission.
• Multi-Scenario Application: Ideal for RDM-DMX512 transmission, fixture expansion, signal enhancement, isolation, and remote settings. Designed for 19-inch rack mounting, it is perfect for large events and installations.
• User-Friendly Design: Intuitive design with easy-to-follow prompts means no manual is needed. Suitable for all users, ensuring effortless setup and control.

Overview

The RDM8802K-A is a bidirectional RDM-DMX512 signal distributor with built-in RDM (Remote Device Management) protocol. It provides a communication pathway for RDM devices, amplifies RDM and DMX512 data, and expands input signals into multiple outputs. This enhances transmission distance, increases the number of connected lighting fixtures, and ensures signal stability and reliability.

Versatile Rack-Mountable Design for Efficient Setup

The RDM8802K-A features a space-saving rack-mount design, perfect for professional use. Mount it securely on standard racks to streamline your setup, providing easy access and a clean, organized look. This design ensures quick adjustments and reliable performance in any setting.

Daisy Chain Power Solution

It provides a reliable and flexible solution for complex lighting setups. It supports both DMX512 and RDM protocols, enabling seamless signal splitting and distribution.

Split-Merge Function

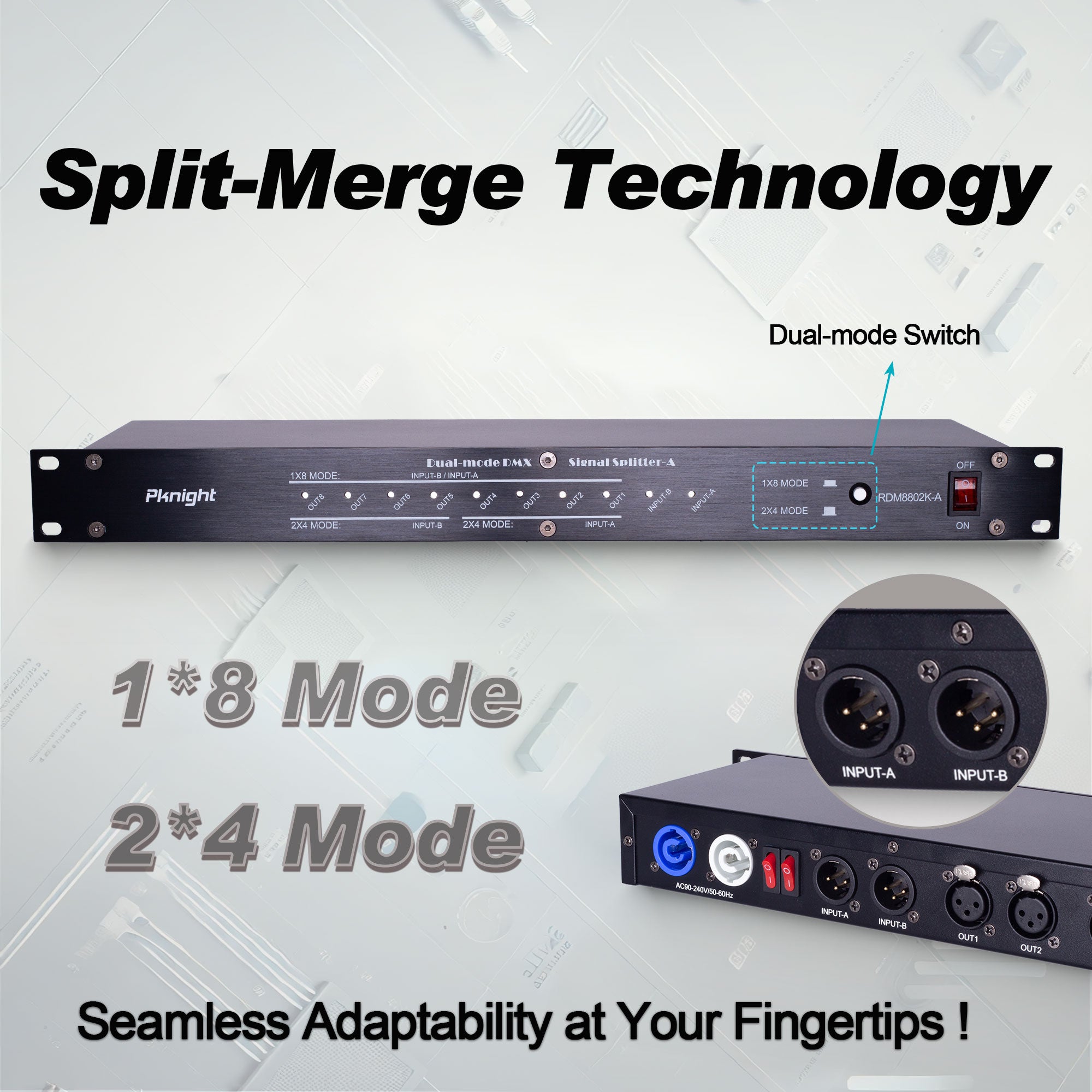

The RDM8802K-A features a Split-Merge Function. With a simple switch, it can be split into two 4-way RDM devices or merged into one 8-way RDM device. This enhances on-site flexibility, reduces equipment, saves space, and lowers costs.When the button is pressed, switch to '1*8 mode'. When the button is released, switch to '2*8 mode'.
