About this item

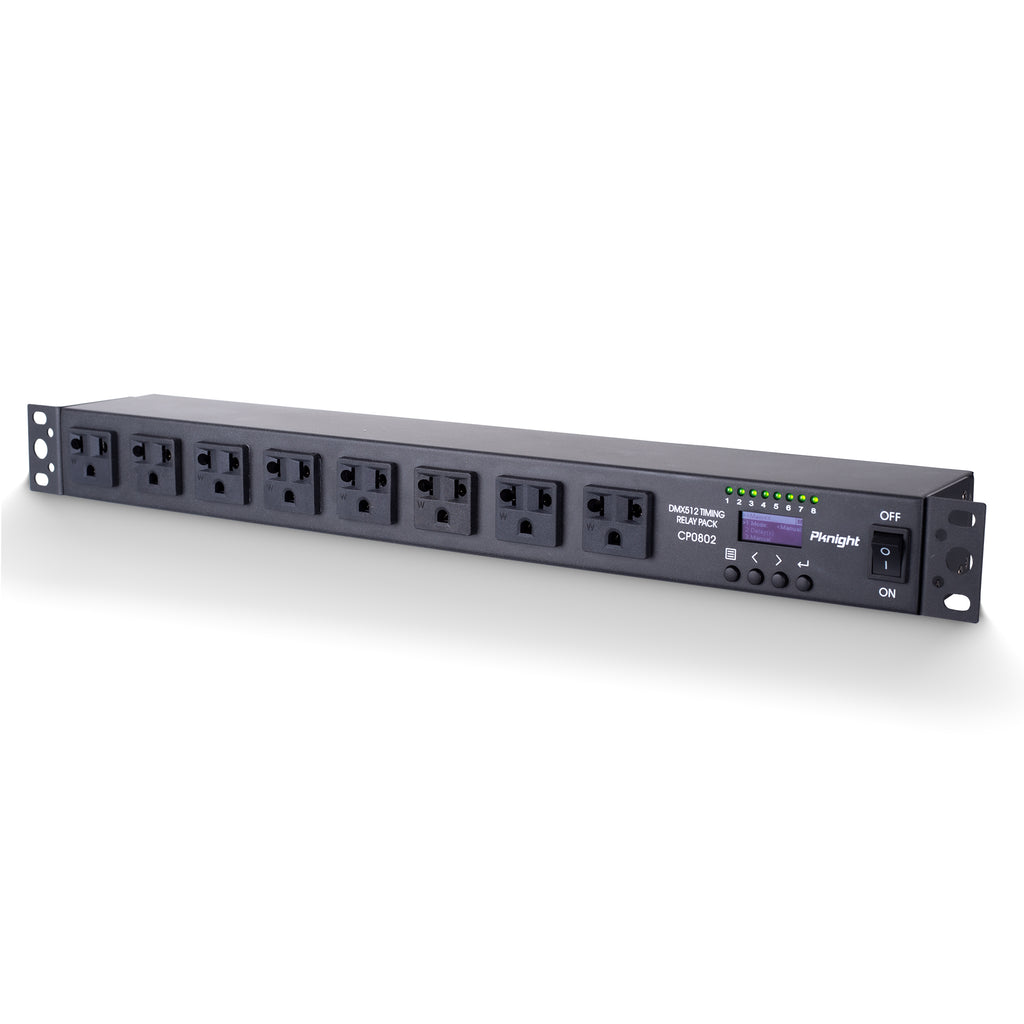

• 90-240V/20A Switched PDU：the unit delivers and manages reliable power to home appliance, music production studio equipment and especially dmx fixtures, NOTE: Max 20A Rated Current for Total Unit!**Do not exceed the rated current of 20A to avoid the wire overheating**

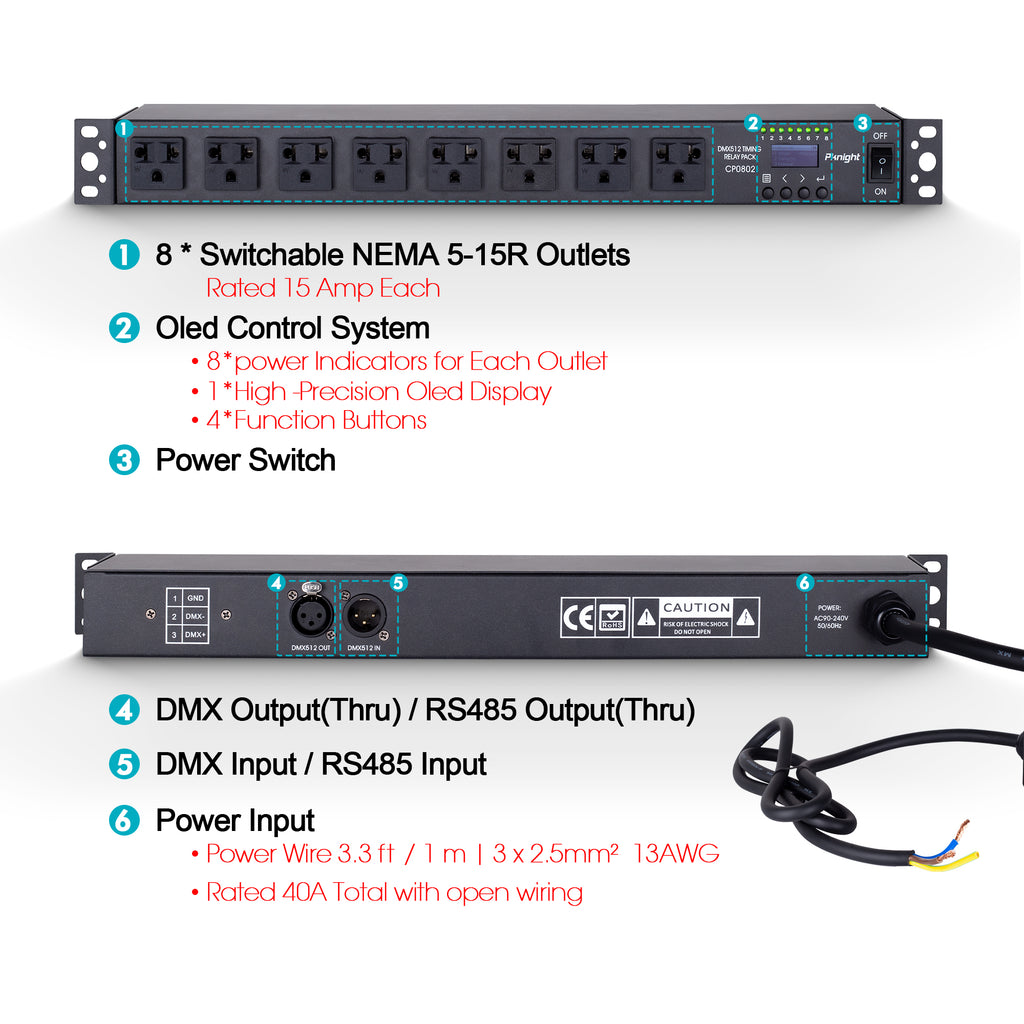

• Smart and Simple:the Pknight unit-CP0802 15 is an multifunctional PDU which can be used as power sequencer, delay switch and DMX512/RS485 relay pack. With OLED control system, you can read the status and system menu setting information from the OLED display easily, such as the running mode, timing time, delay time, running, outlets status, DMX setting, RS485 setting etc.

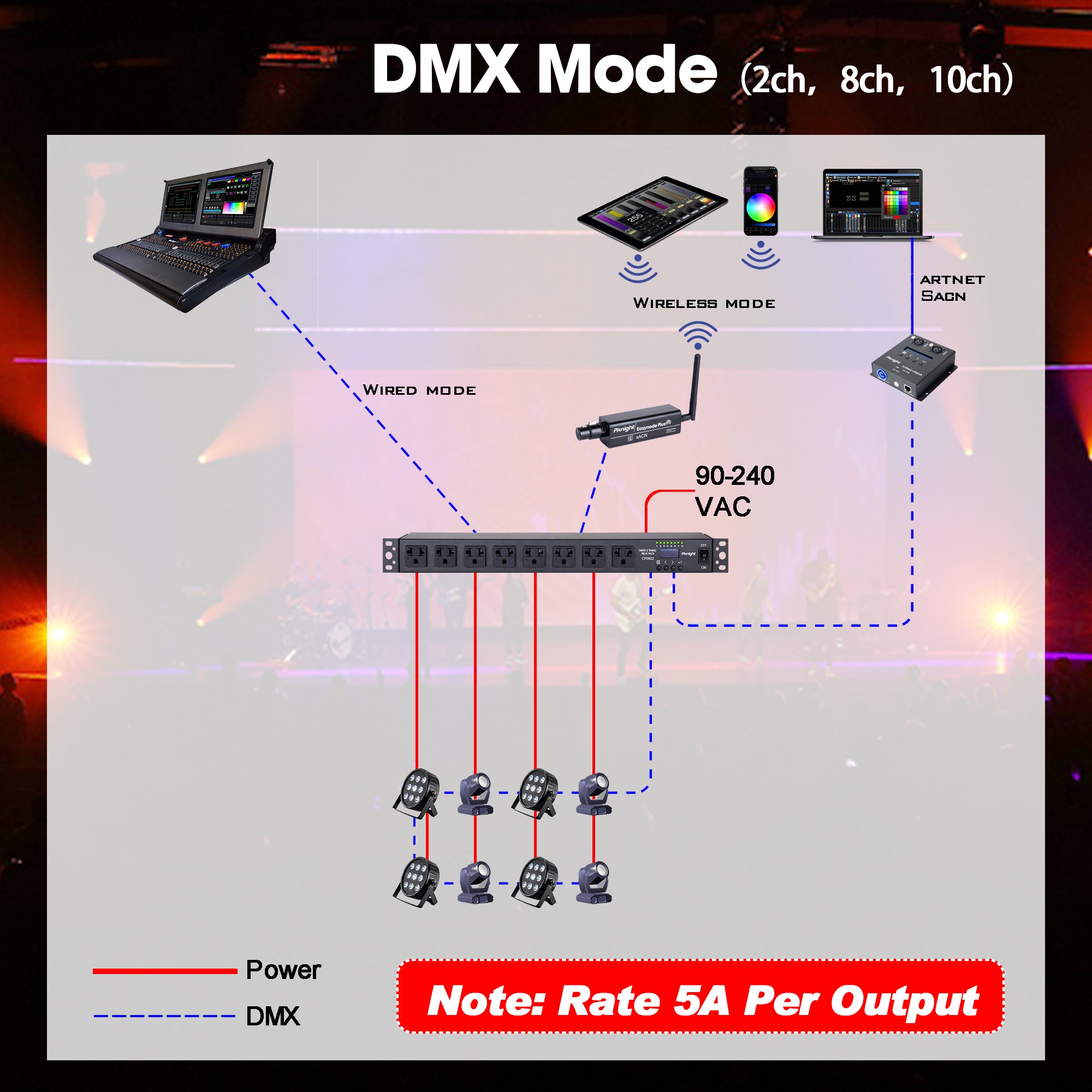

• DMX Mode:It is the most important feature that the device can be controlled by DMX512.there are three DMX channel options,the 2ch, 8ch, 10ch. so It is a complete solution for delivering Power and DMX data to LED and automated fixtures remotely. Available with our easynode technology or a hardwired DMX input, this relay is ready to go.

• RDM Support: This unit supports Remote Device Management (RDM), allowing real-time communication with DMX fixtures. Through RDM, users can remotely adjust settings, monitor device status, and optimize system performance using RDM controllers. This feature simplifies complex lighting setups, making it ideal for professional studio and stage applications.

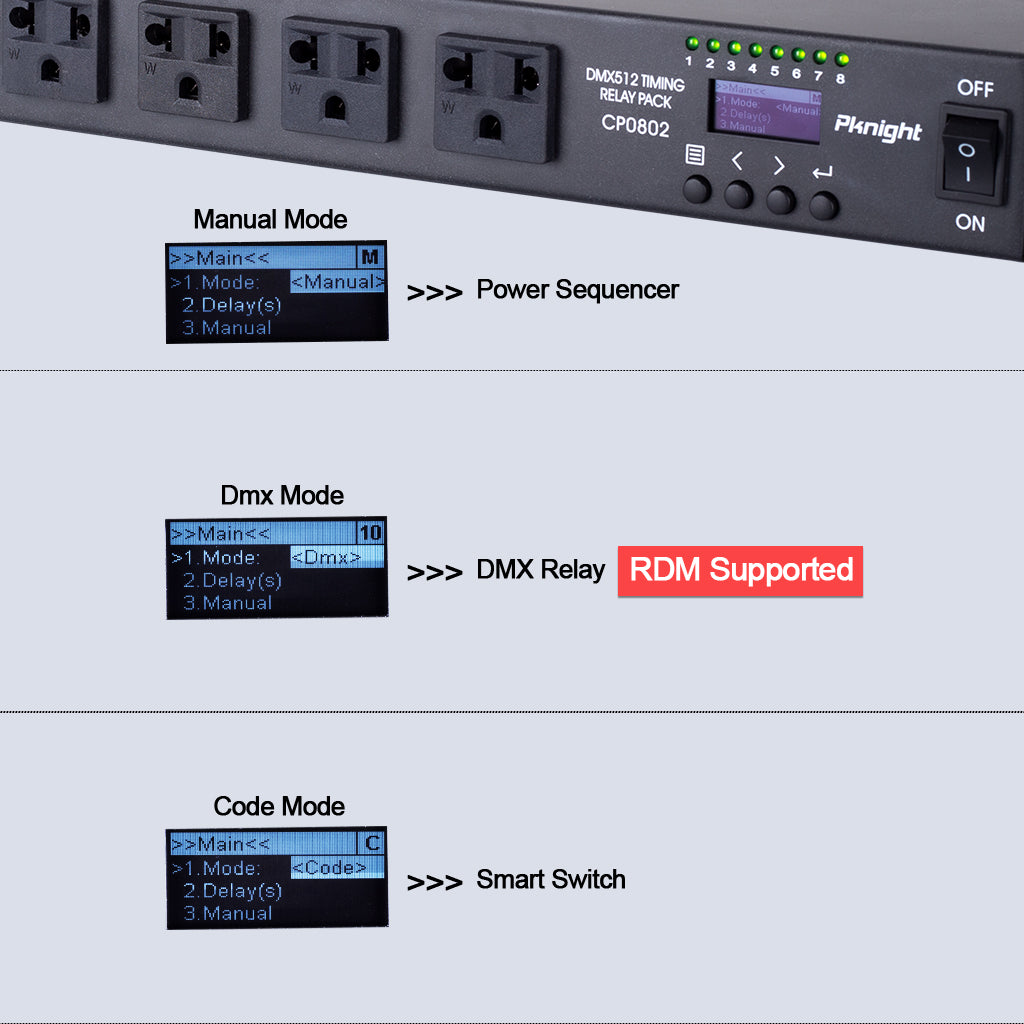

• Manual Mode:you will get the most comprehensive device, 8 outlets can be controlled separately to turn on or off, start time delayed power sequencer with 0~10s help expand to more outlets. timing time can be customized from 0-10s.
• Lock Mode:In DMX mode, even if the dmx signal is lost,the eight relays will hold their value; or Sometimes the dmx controller accidentally powers off and restarts and outputs all 0, Don't worry, these 8 relays can still stay in last state
• Code Mode:Compatible with RS485, it can be a smart switch controlled by some central controller or pc which can output RS485.
• RDM Support: This unit supports Remote Device Management (RDM), providing real-time, two-way communication with DMX fixtures. Through RDM, users can remotely set parameters, monitor device performance, and conduct troubleshooting directly via RDM controllers. This feature enhances the ease of use and management of complex lighting setups, making it ideal for professional studio and stage environments.

APPLICATIONS

Anywhere you need to quickly and conveniently get power control and DMX to fixtures, hazers, or moving lights：

• - School theatres, cafetoriums, and gymnatoriums
• - Houses of worship
• - Theatres retrofitting to LED stage luminaires
• - Night clubs
• - Event lighting
• - Conference and exhibition centers
• - Hotel ballrooms

Home audio
Live sound
Smart home
