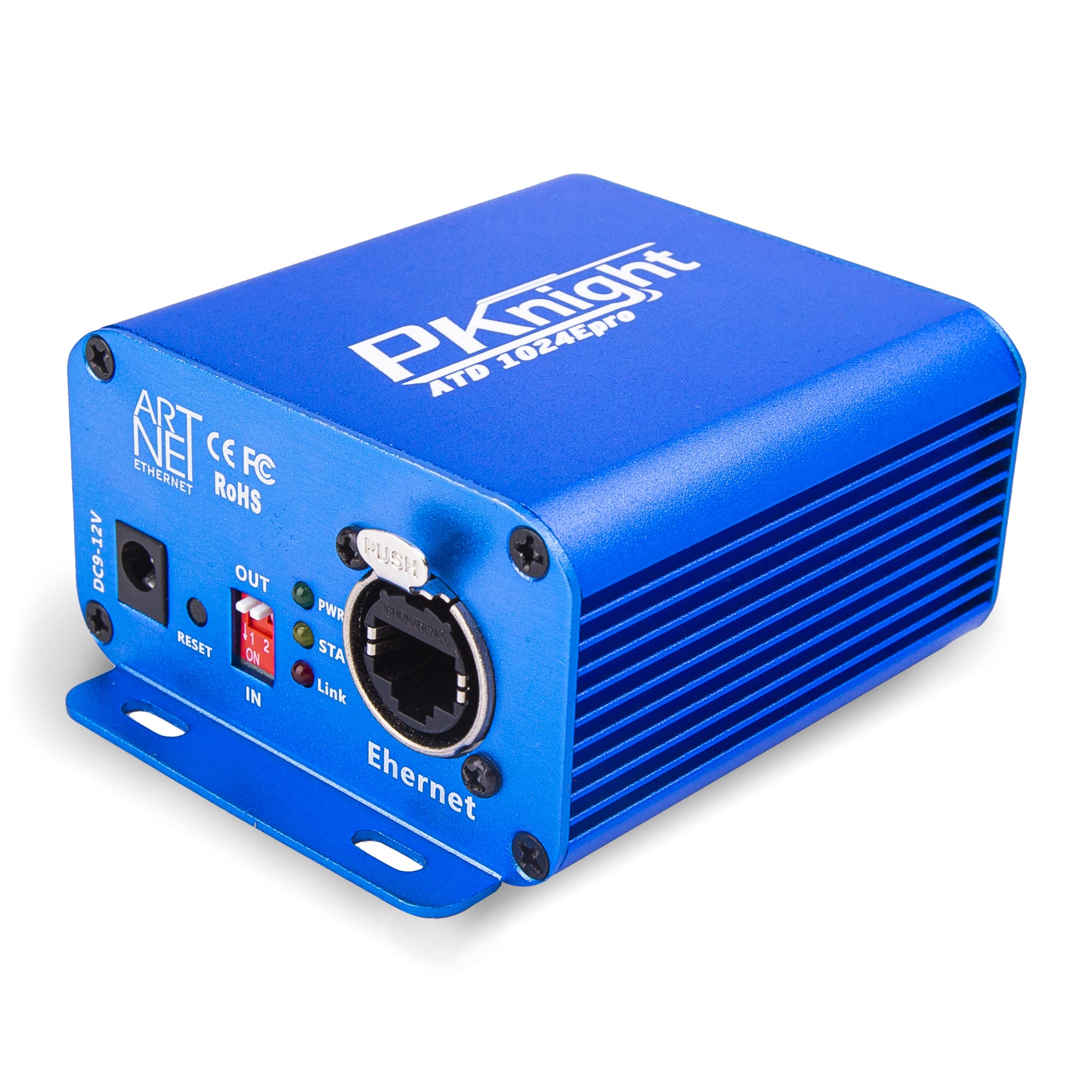

Pknight ArtNet DMX 512 Ethernet Lighting Controller Interface

Out of stock
Shipping From :

Subcribe to back in stock notification

Shipping information

Free Shipping for Products in Overseas Warehouse

Shipping Info

Free shipping if the product is in stock in your country.

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

If we forget to set the shipping fee for your country, please contact us and we will set the shipping fee for your country.

Download the application software(Artnet-Dmx-Configurator) for the windows


  • It is the most cost-effective artnet and dmx interface with very comprehensive functions
  • Input and output modes can be switched freely through the 2p dial the code switch on the panel

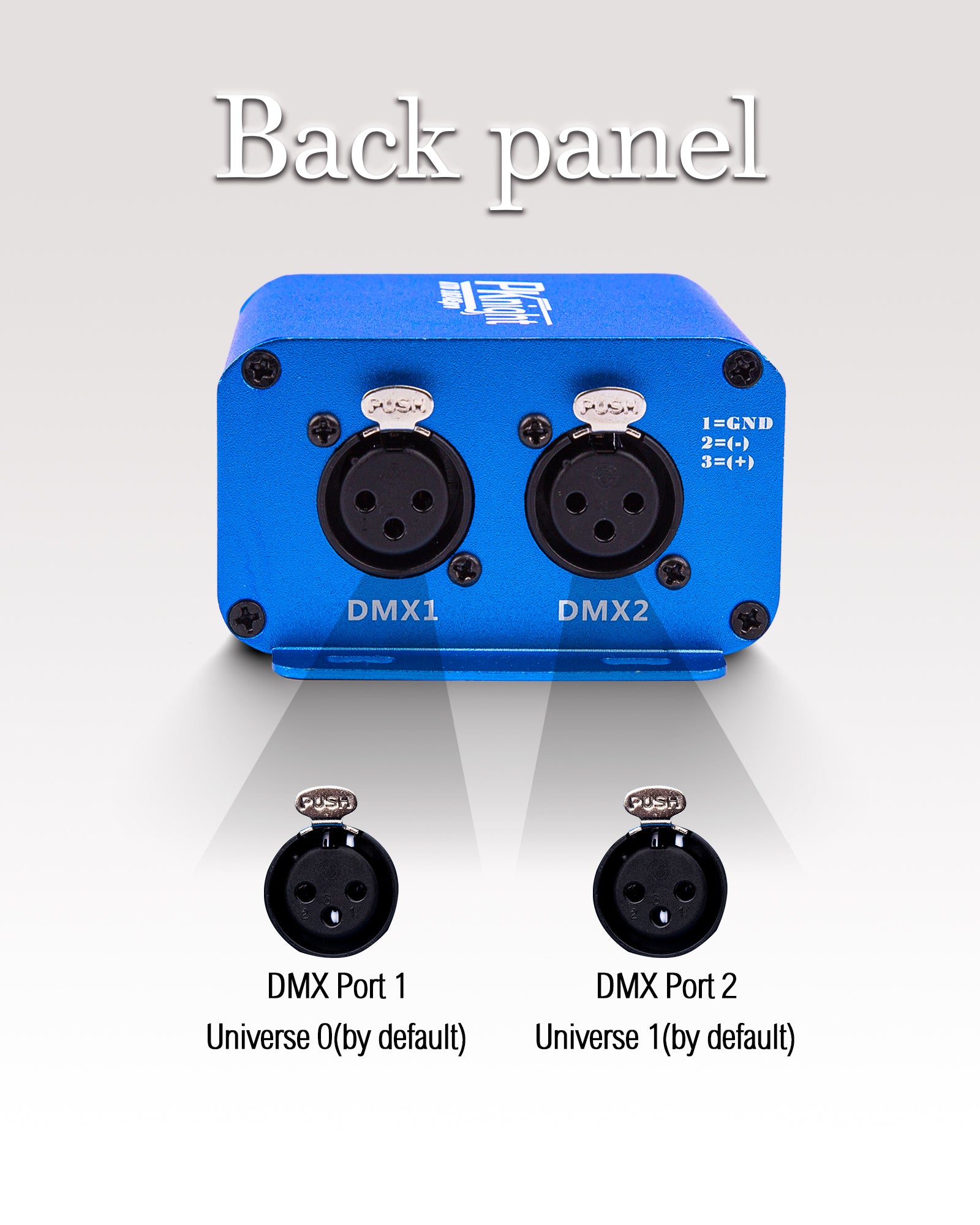

  • 2 universes,control up to 1024 channels.

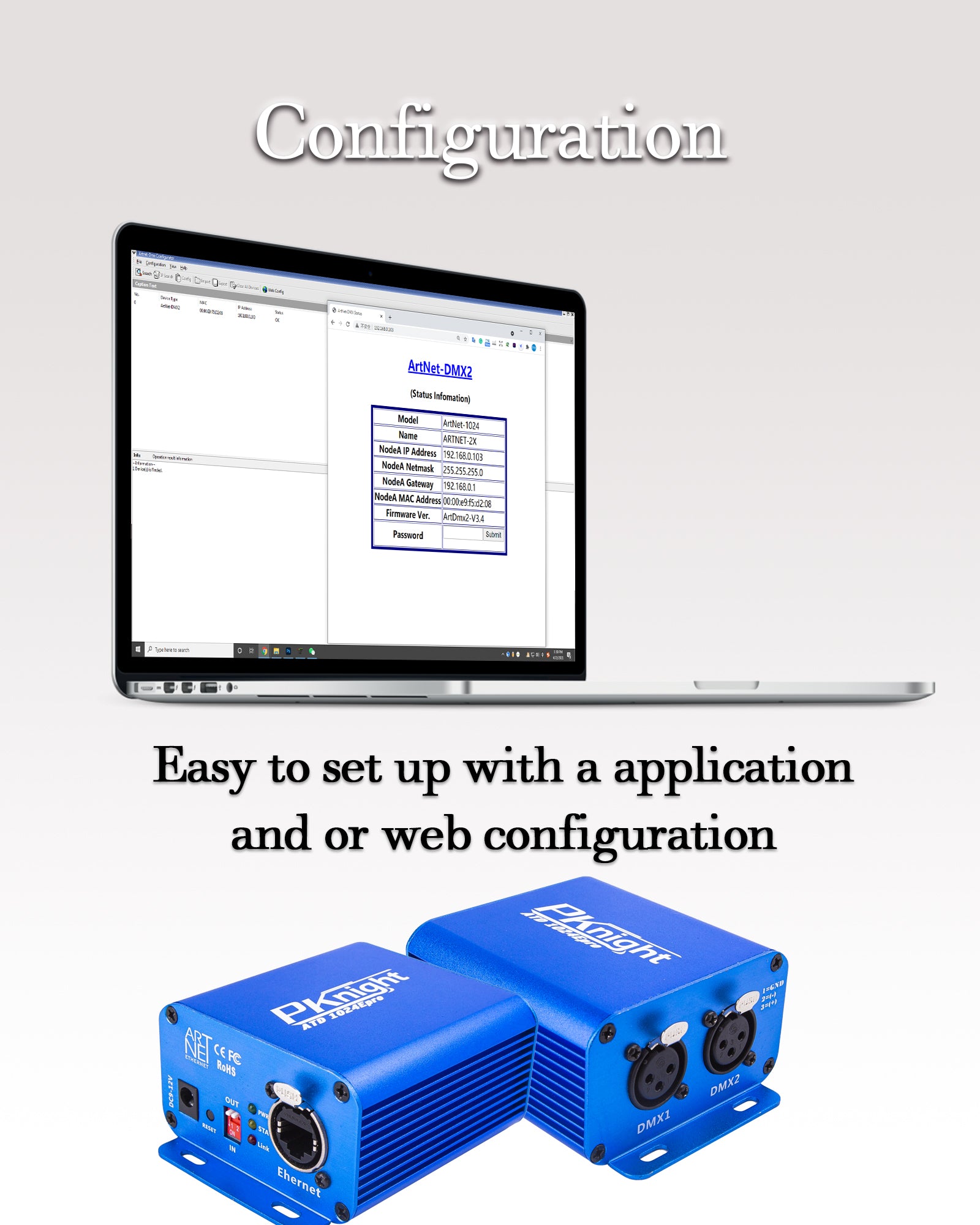

  • With a application called Artnet-dmx configuration or a web configuration,you can set it up within 30 seconds

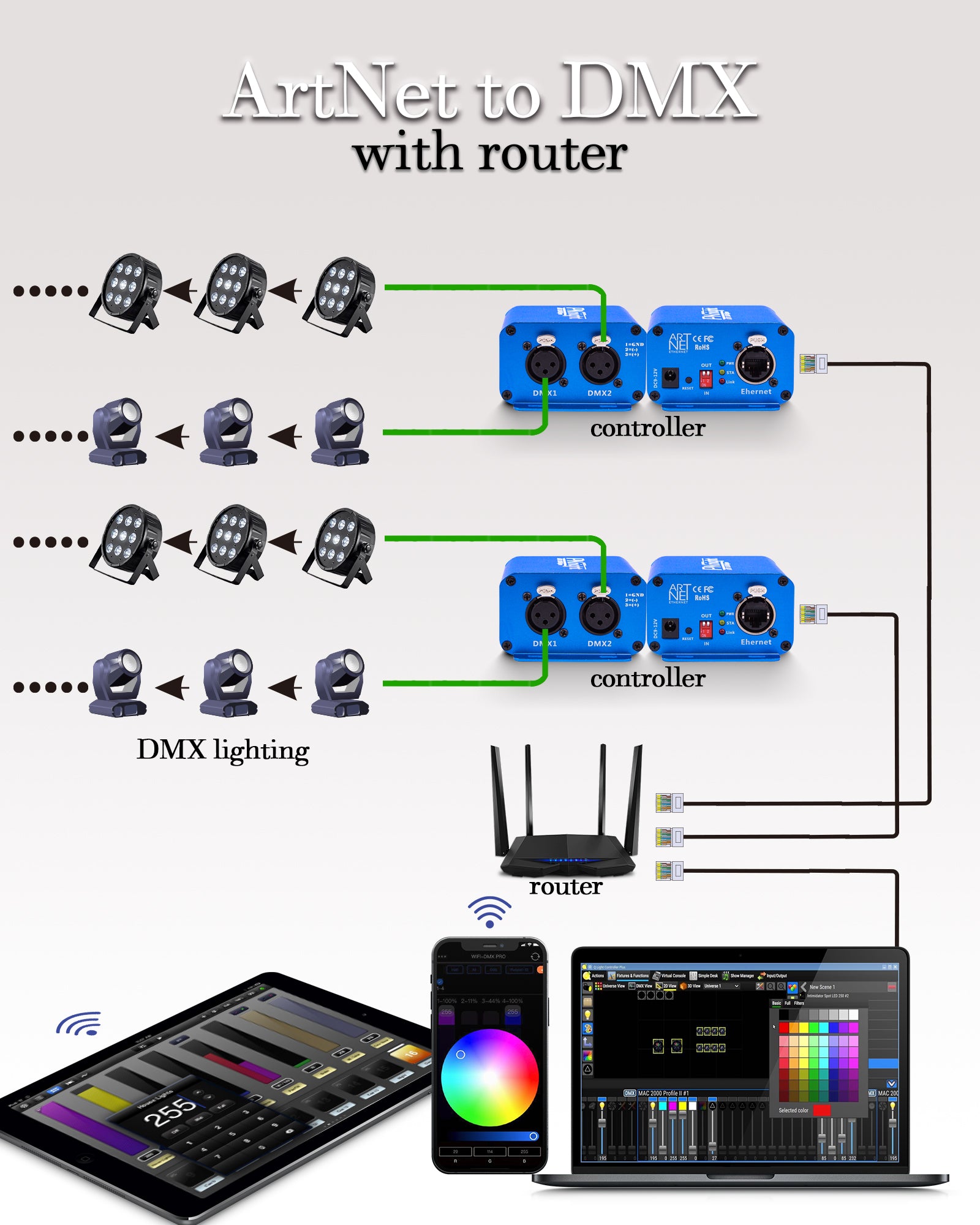

  • when DHCP is enabled,Simply connect to your existing router, and any supported software will find it.

The maximum length you can run Cat5, Cat5e, Cat6 and Cat6a cable is 100 meters or 328 feet.

Compared with xlr, the network cable is more stable and faster,and the signal transmission distance is longer, and most importantly, it is cheaper!

artnet console

reset button

Press and hold the button for 5 seconds to restore the factory set.The STA led will blink,it's done.

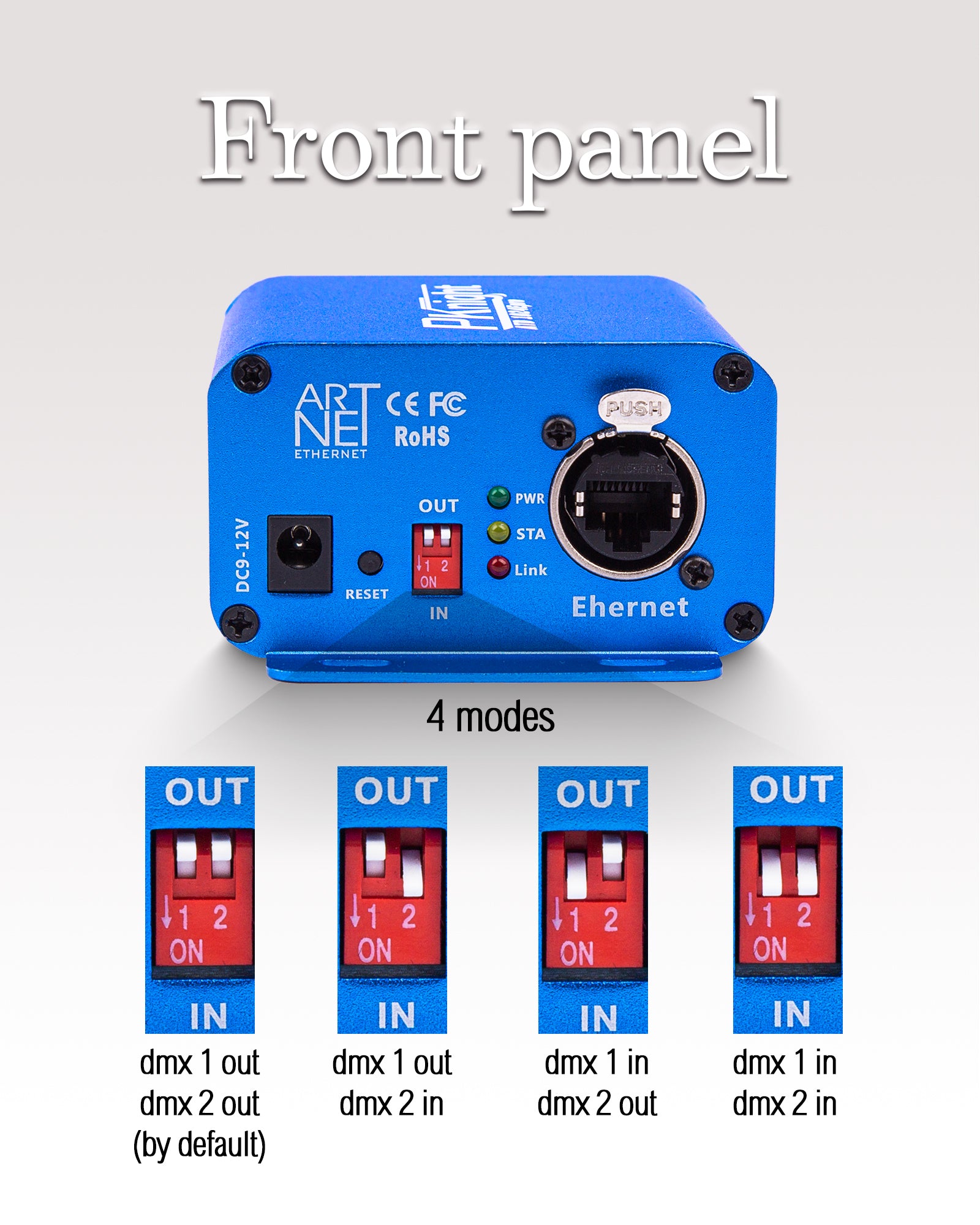

2p dial The Code Switch

 artnet interface dmx

  • mode 1:1&2 output
  • mode 2:1 output;2 input
  • mode 3:2 output;1 input
  • mode 4:1&2 input

 LED Indicators


PWR:power on,turn green
STA:connections and activities,blinks slowly,Signal detected,turn yellow.
Link:connect to pc or router,turn red;Signal detected,blinks fast.

IP Type
The four type are as follows

2.x.x.x(Auto):a static IP starting with 2.Each ATD 1024Epro has the specific ip(by Factory Default)
10.x.x.x(Auto):a static IP starting with 10.Each ATD 1024Epro has the specific ip
DHCP:the router on your network is expected to automatically provide the IP address to the ATD 1024Epro.
Custom IP:You can manually enter the ip address which you want.

  • 1 x ATD Pro controller
  • 1 x power plug
  • 1 x Ethernet cable
  • 1 x velvet Drawstring Bags
  • 1 x user manual
